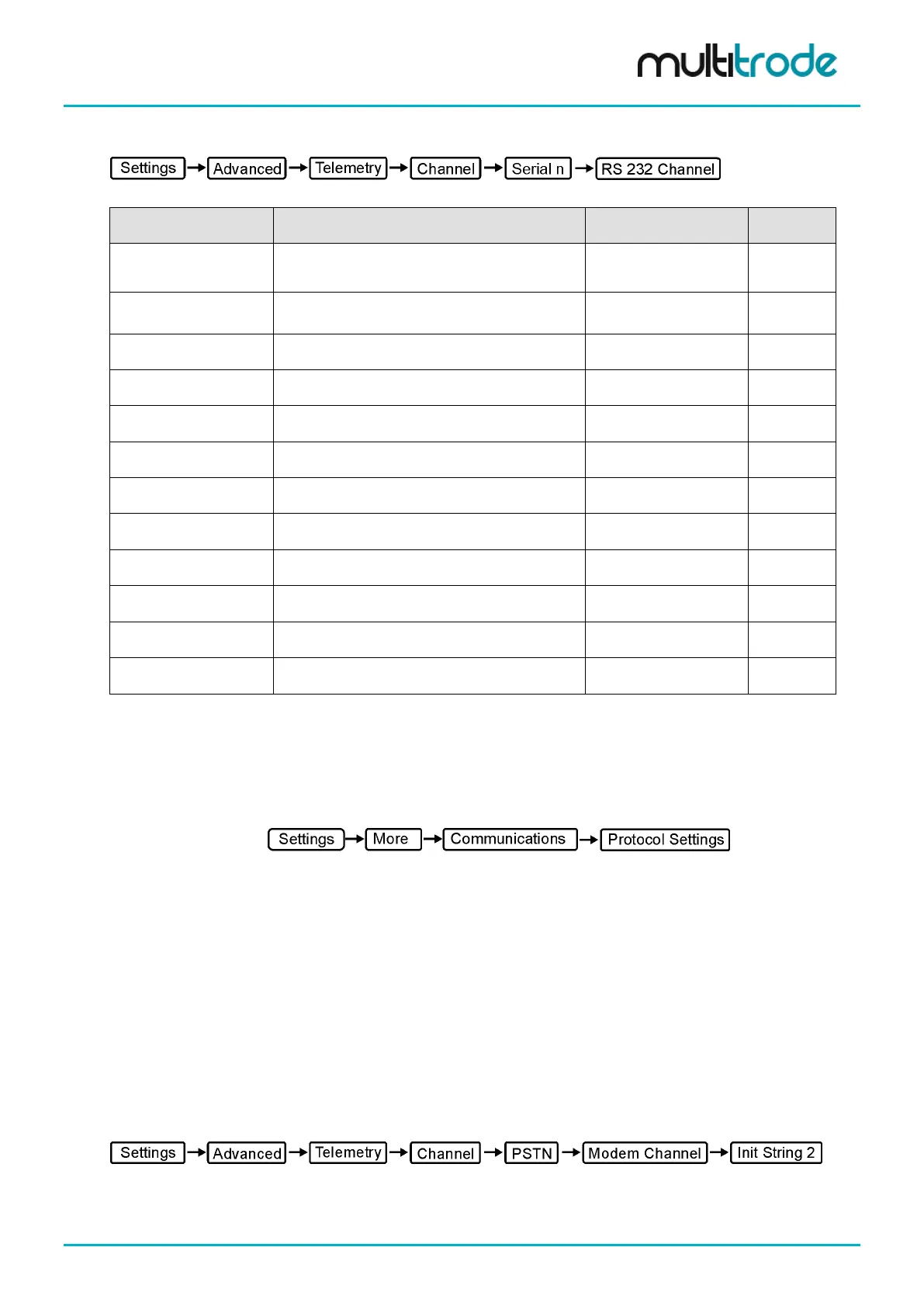

Further serial port parameters can be found in the Advanced menu, navigate to:
Name Description Range/Type Default
Baud Rate Sets the baud rate for the channel.
1200, 2400, 4800,
9600, 19200, 38400,
76800, 115200
9600
Communications Port
Selects which port this channel communicates
through.
Serial 1, Serial 2 -
First Character Timeout
(ms)
Sets a timeout for the first character in
milliseconds.
0 – 9999 ms 1000
Inter Character
Timeout (ms)
Sets a timeout between characters in
milliseconds.
0 – 9999 ms 20
MultiTrode RTU? Deprecated. Enable/Disable Disabled
Number of Wakeups Sets the number of wakeups. 0 - 120 60
Number of Data Bits Sets the number of data bits. 7 or 8 8
Number of Stop Bits Sets the number of stop bits. 1 or 2 1
Parity Sets the type of parity. Odd, Even or None None
RTS Control Sets whether RTS is controlled. Enable/Disable Disabled
Radio Off Time (ms) Creates delays for use with analog radios 0 – 9999 ms 0
Radio On Time (ms) Creates delays for use with analog radios 0 – 9999 ms 0
Table 37 – Advanced Serial Port Parameters
22.2.6.3 PSTN Channel Settings
The following parameters should only be modified by an experienced modem user. Only the DNP3 protocol
can be used over PSTN.
• Navigate to:
• Highlight a DNP Slave and press Select
• Set the Comms Channel to PSTN and press Save.
• Press Channel to modify the following modem related parameters;
Phone Number – Enter the destination phone number.
Baud Rate – Choose the appropriate baud rate
Data/Stop Bits/Parity – Select the number of data bits, stop bits and parity
Connect Timeout (sec) – Period to establish connection before dial up connection times out
Retry Delay (sec) – Time period to wait after a failed connection before retrying
Idle Timeout (sec) – Time period to wait after the last data transmission before hanging up
Comms Port – Physical port used by this channel. In most cases this need not be changed
The default modem initialization string (Init String 2) can be found at:
The default initialisation string is: AT&FE0Q1M0V1S0=2&C1&D2W2&Y0
MultiSmart_IO_Manual_R20 Page 195 of 260
