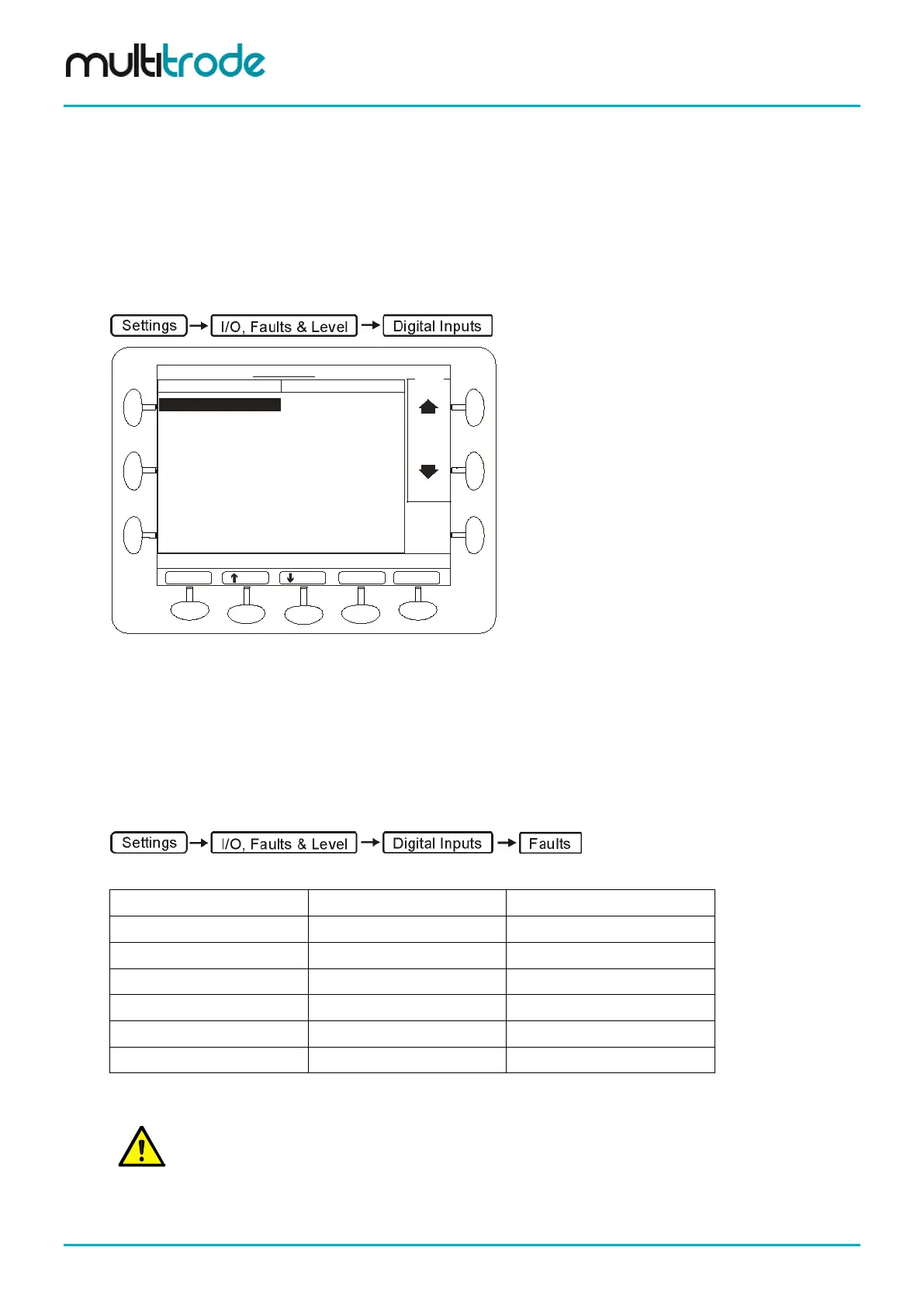

14 Configuring I/O, Fault & Level Devices
The MultiSmart unit can interface directly to a wide range of Input/Output, Fault and Level devices.
Connection diagrams for these are described in Section 7.2. This section describes how to configure these
devices on the pump station manager itself.
14.1 Digital Inputs
Various types of devices can be connected to DINs. Some inputs have special functions for particular
purposes. These are summarized in Sections 7.3, 7.6 and 14.4. To view the current digital input
configuration, navigate to the Digital Inputs screen:
Top Board DIN 01 Motor Overtemp
Top Board DIN 02 Pump 1 Seal
Top Board DIN 03 Pump 1 Thermal Overload
Top Board DIN 04 P1 Contactor Auxiliary
Top Board DIN 05 P1 C/Breaker Off/Trip
Top Board DIN 06 DIN.6
Top Board DIN 07
Top Board DIN 08
Top Board DIN 09
Top Board DIN 10
Pump 1
Pump 2 Motor Overtemp
Pump 2 Seal
Pump 2 Thermal Overload
P1 Contactor Auxiliary
Faults
General
Digital Inputs
Input
Back
Digital Input
Assigned
This screen is for display only. To edit, select Faults or General.
PgUp
PgDn
Figure 103 - Digital Input Assignments
To change the I/O configuration go to either the Faults or General screen:
• Faults - Used to assign/unassign a particular type of fault such as pump seal fault.
• General - Allows the description of the input (i.e. DIN 12) to be renamed.
14.2 Assigning Faults to Digital Inputs
Navigate to:
The predefined faults that can be linked to a digital input are listed below.
Generator Running Pump 1 Thermal Overload Pump 1 Holdout
Generator Fault Pump 1 Motor Over Temp Pump 1 Not In Auto
Station Inhibit Override Pump 1 CB Off/Trip Pump 1 Inhibit Override
Station Manual Reset Pump 1 Contactor Auxiliary Pump 1 Manual Reset
Pump 1 CLS Pump 1 Delay Fail - etc, repeated for each pump
Pump 1 FLS Pump 1 Critical General faults 1 - 10
Pump 1 Seal Pump 1 Non Critical Power Failure
Table 7 – Digital Input Fault Sources
NOTE: For a full list of faults and their function, see Appendix A.
