MultiSmart Installation & Operation Manual
21 Reservoir Monitor
The MultiSmart can be configured as a Reservoir Monitor when this module has been purchased. In this
mode, there are no pumps to control, so all functionality related to pumps, groups and motor protection are
unavailable.

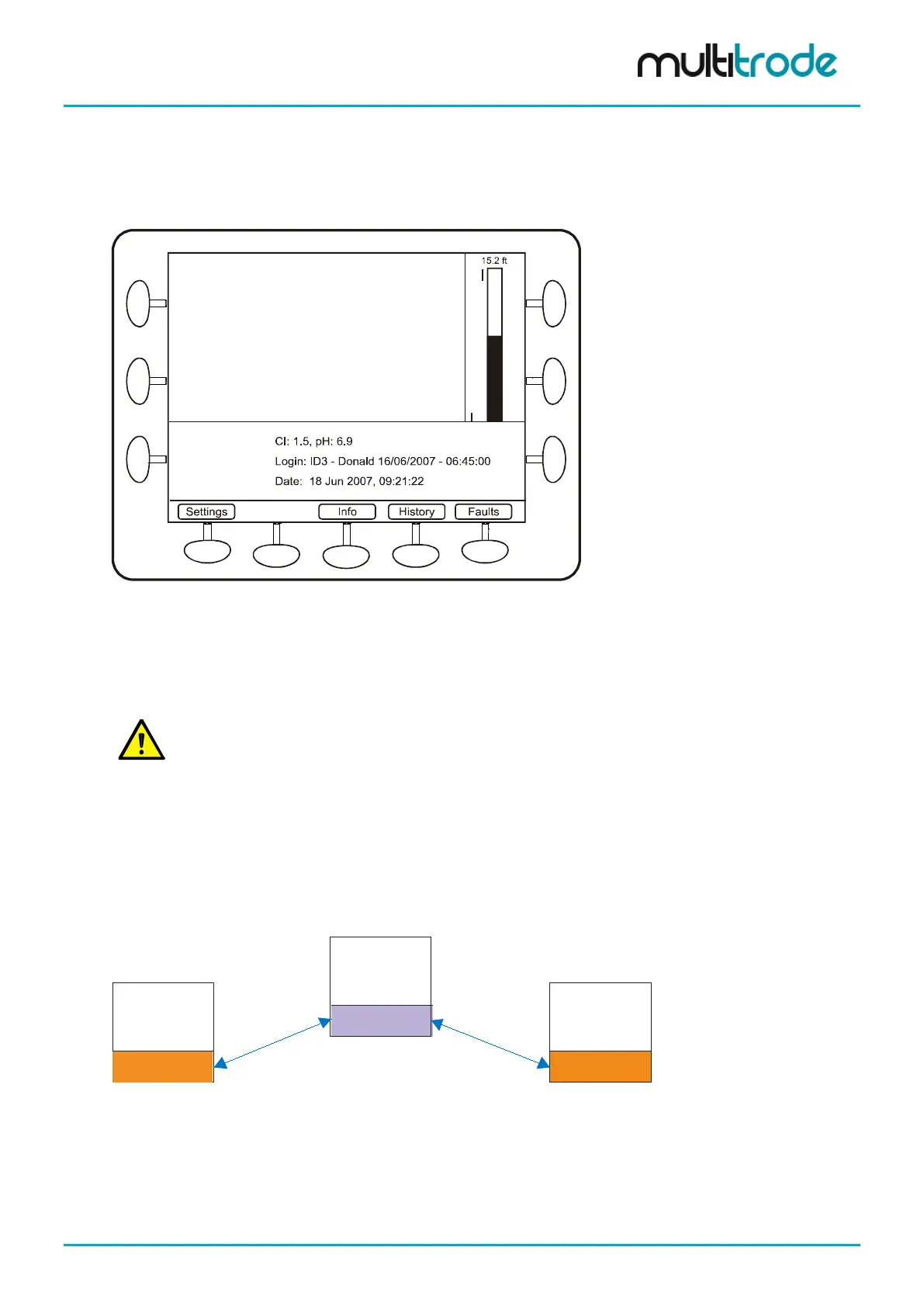

Figure 153 – Typical Reservoir Monitor Main Screen
21.1 Communications Configuration
When configuring the MultiSmart as a Reservoir Monitor, the first question asked by the Setup Wizard is
which DNP3 Communications configuration should be used. There are three options – A, B or C.
NOTE:
Configuration B is the recommended setup.
When running through the Setup Wizard for the corresponding pump station, if you select Remote Level and
enter the corresponding DNP3 addresses, the two stations will be linked.
21.1.1 Configuration A
In this configuration, the Pump Station receives the level from the Reservoir Monitor via the DNP3 Master
(MTU). This configuration is used when there is no direct communications link between the pump station and
reservoir monitor or the communications network is complex.
MultiTrode recommends using a redundant MTU when using this configuration.
Pump Station Reservoir
Slave
Slave
MTU
Master
Figure 154 - Communications Configuration B
MultiSmart_IO_Manual_R20 Page 181 of 260
