MultiSmart Installation & Operation Manual
Part 3 – Advanced Settings
10 High Level Overview
10.1 MultiSmart Pump Station Manager Overview
The MultiSmart Pump Station Manager has a large range of features and functionalities built in, some of
which are shown in the figure below. Functionality wise, MultiSmart can be considered as a Pump Station
Manager and an RTU integrated together. MultiSmart can handle all the common water and sewage pump
station applications, but its capabilities are not limited to that. MultiSmart has support from PLC functionality,
thereby allowing further advanced requirements to be met.
Pump 1 Pump 2 Pump 3
Thermal, seal, contactor
auxilliary, circuit breaker,
input/output, pump relay
control, motor protection.
Thermal, seal, contactor
auxilliary, circuit breaker,
input/output, pump relay control, motor protection.
Thermal, seal, contactor
auxilliary, circuit breaker,
input/output, pump relay
control, motor protection.
Analog and Digital Input/Output
High frequency & Low Frequency I/O available
MULTISMART PUMP STATION MANAGER
Variable Frequency Drive
Level, pressure, organic
biological sensor inputs
Supply voltage monitoring
Display
Customization
System information
Hours run statistics
Pump Information
Keypad
LCD
Advanced Settings
Security
Flow Monitoring
RTU Module
Multiple master and slave
DNP3 master/slave
Modbus master/slave
Serial and ethernet
IEC 61131- 3
(ISaGRAF)
Logic Engine
CPU
Date/Time
Software Modules
Motor Protection Insulation resistance
Test
Supply Protection
Data Logging
Events, Faults etc.
Config
backup/restore
Data back up
Fault Monitoring
Commissioning/
Decommissioning
Pumps
Optimization
Profiles,
Each
Profile can be
Configured
and Saved
for later use
Order reduction
Max run time
Max pump to run
Well cleanout
Minimize excessive
starts Well washer
Block pump
detection
Max starts per hour Advanced Config
Standard Special
Fixed Strict
Hours Run
Pump Starts
Efficiency
N =>1
Station Optimization
Profile
Edit
External
I/O Modules
Set Points
Level/Control
Alarm
Delay settings
Enable/Diable Alarms
One MultiSmart can handle
up to 6 pumps which can be
extended to 9 pumps with
certain limitations

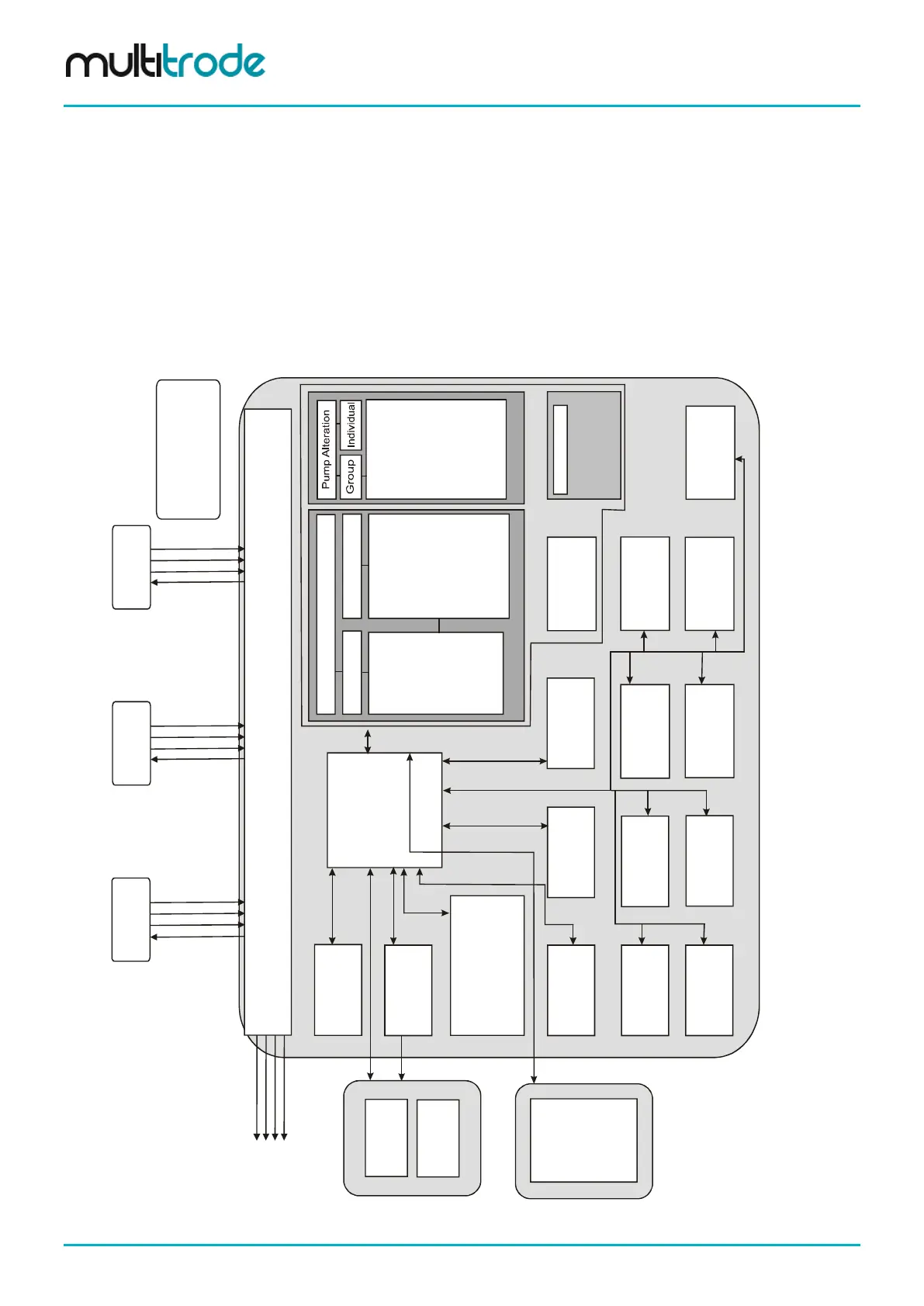

Figure 81 – MultiSmart Pump Station Manager Overview
