MultiSmart Installation & Operation Manual
15.1 Profile Selection Methods
Three of the five different ways to select a profile are discussed in this section.
15.1.1 Select a Profile with the User Interface:
To change the current Profile, navigate to the Select Current Profile screen:

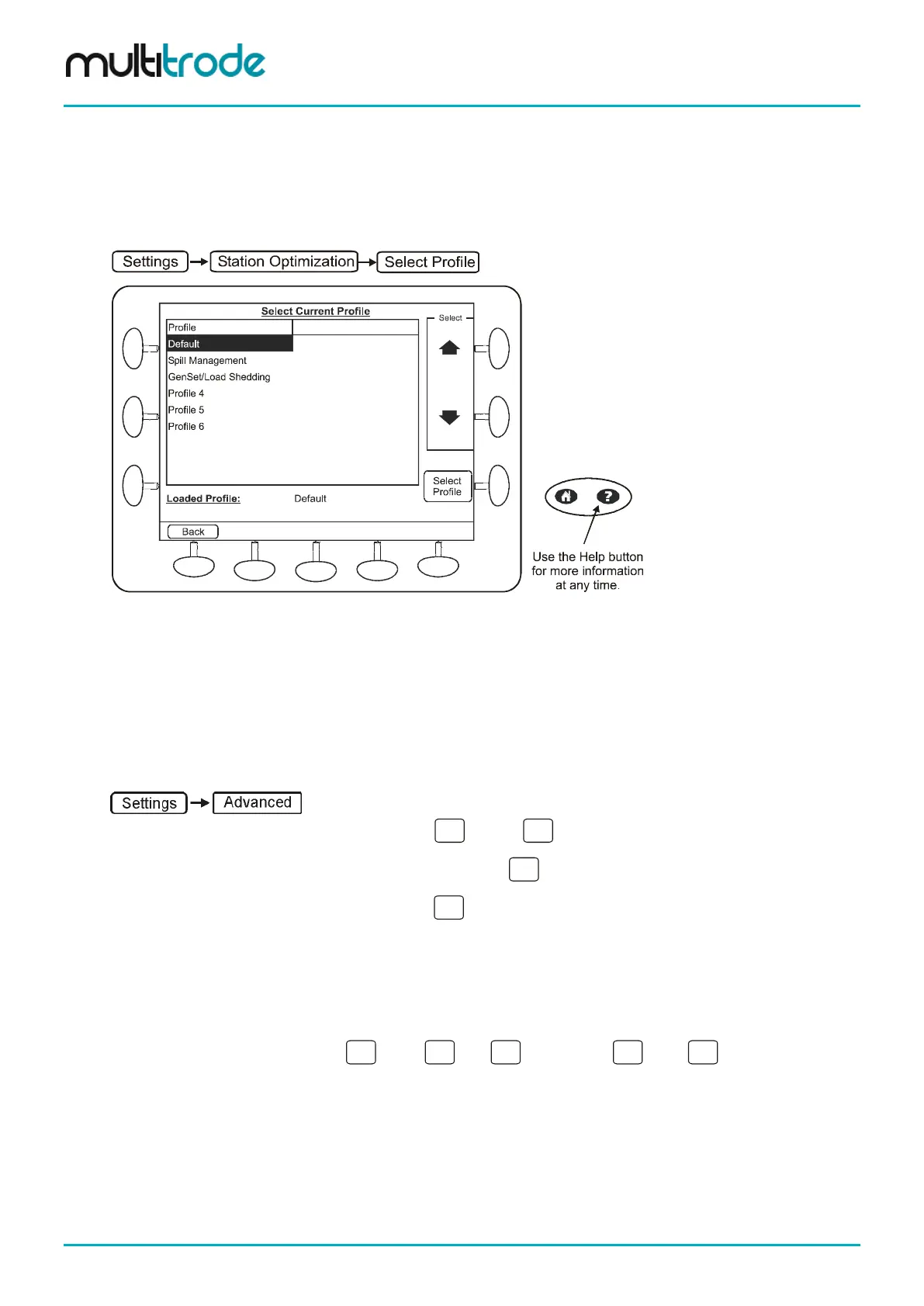

Figure 129 –Profile Selection Screen
• Use the arrow buttons to select a Profile from the list.
• Press the Select Profile button.
15.1.2 Selecting Profiles Using a Digital Tag
A digital tag whether for a digital input or for some other source can be assigned to select a profile:
• From the tree select: Pump Control
Profile
• Select the desired profile from the list and press
• From the tree select: DIN Activation
Any digital tag (of type “DigitalTag”) can be selected. In this example a digital input is the source.
The following values should be set:
• Enabled? (check the box to enable, uncheck to disable)
• Source (contains the digital tag source), press “Use this button to see additional values”.
• Scroll down to IO, press
, Unit,
, _1,
, TopBoard,
, DIN,
• Select the DIN to be use. Scroll down to ValueDigital, and Press Ok.
