MultiSmart Installation & Operation Manual
12.3 Changing Pump and Alarm Levels Setpoints
12.3.1 Limitations
The MultiSmart unit does not allow the user to set invalid activation and deactivation setpoints, for example:
When in Empty (Discharge) mode the Lag (Standby) pump cannot be configured to activate or
deactivate before the Lead (Duty) pump.
When in Fill (Charge) mode the activation level for any particular pump cannot be higher than the
level for the previous pump in the duty order. The deactivation level also cannot be higher than the
previous pump in the duty order.
12.3.2 Setting Pump Setpoints
From the main screen navigate to the Level/Control Setpoints screen:

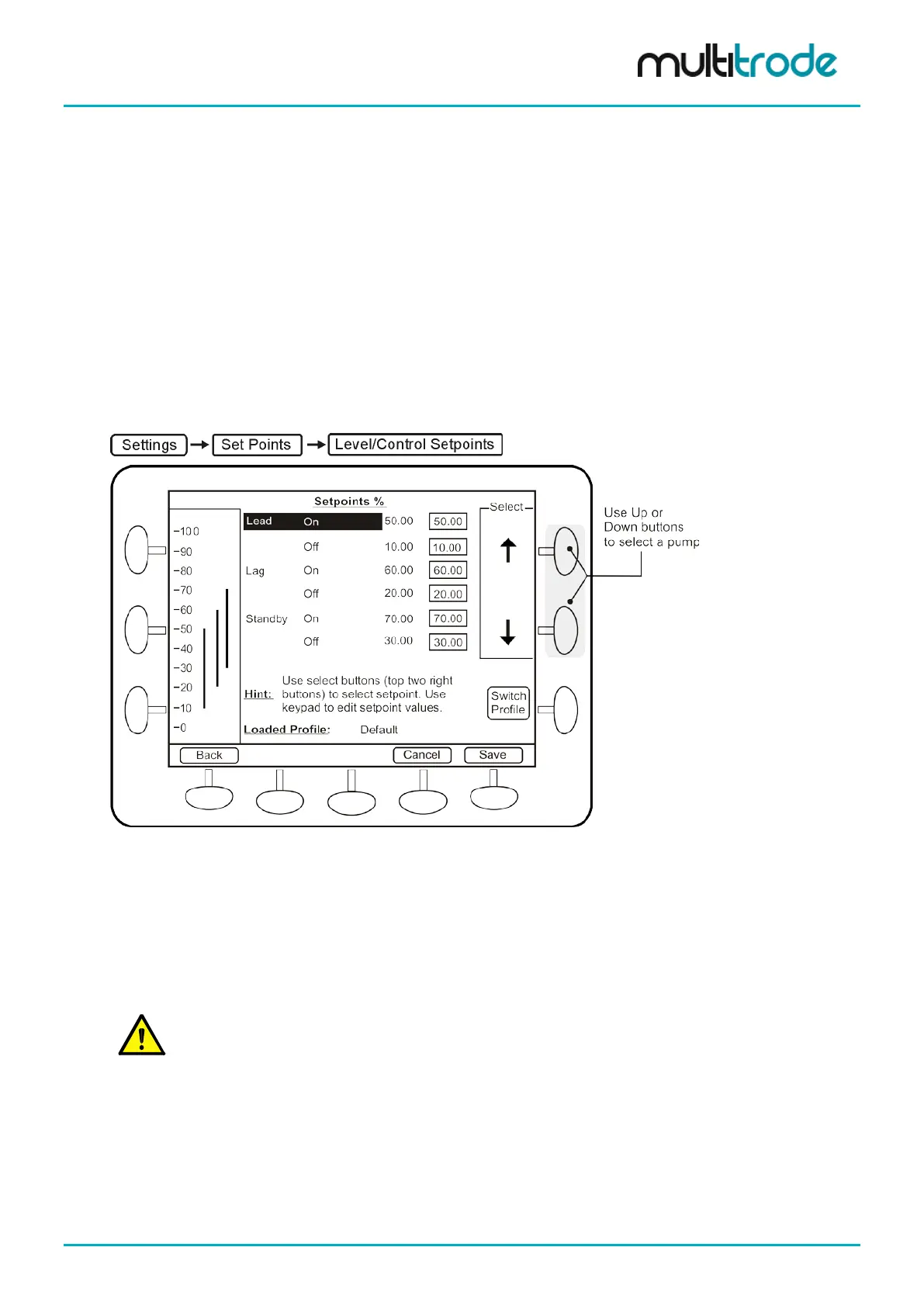

Figure 93 - Setting Pump Levels
Use the arrows to select a pump
Enter new values using the keypad
Push the Save button to commit the changes
If the settings are invalid, an error message is displayed
NOTE: If there are more than one well and if they are independent, the first set of Lead/Lag pump/s
listed in this menu will correspond to the pumps in well 1 and the next set will correspond to the pump/s
in the second well.
