MultiSmart Installation & Operation Manual
Values available include:
Apparent Energy (kVAh)
1
Hours Run
3
Apparent Power (kVA)
Total Hours Run
Efficiency (L/kWh, Gal/kWh, kWh/ML or kWh/MGal)
1
*
Starts
2,3
Energy (kWh)
1
Total Starts
Flow Rate (L/sec, L/min or gpm) *
VFD Speed (%)
Insulation Resistance (MΩ)
Power (kW)
Last Minutes Run
Power Factor
Minutes Run
2
Three Phase Currents (A) (%FLC)
1
Last Week, This Week, Today or Yesterday,
2
Last Hour or This Hour
3
Today or Yesterday, * Some units may require changes to Flow Settings (Section 20).

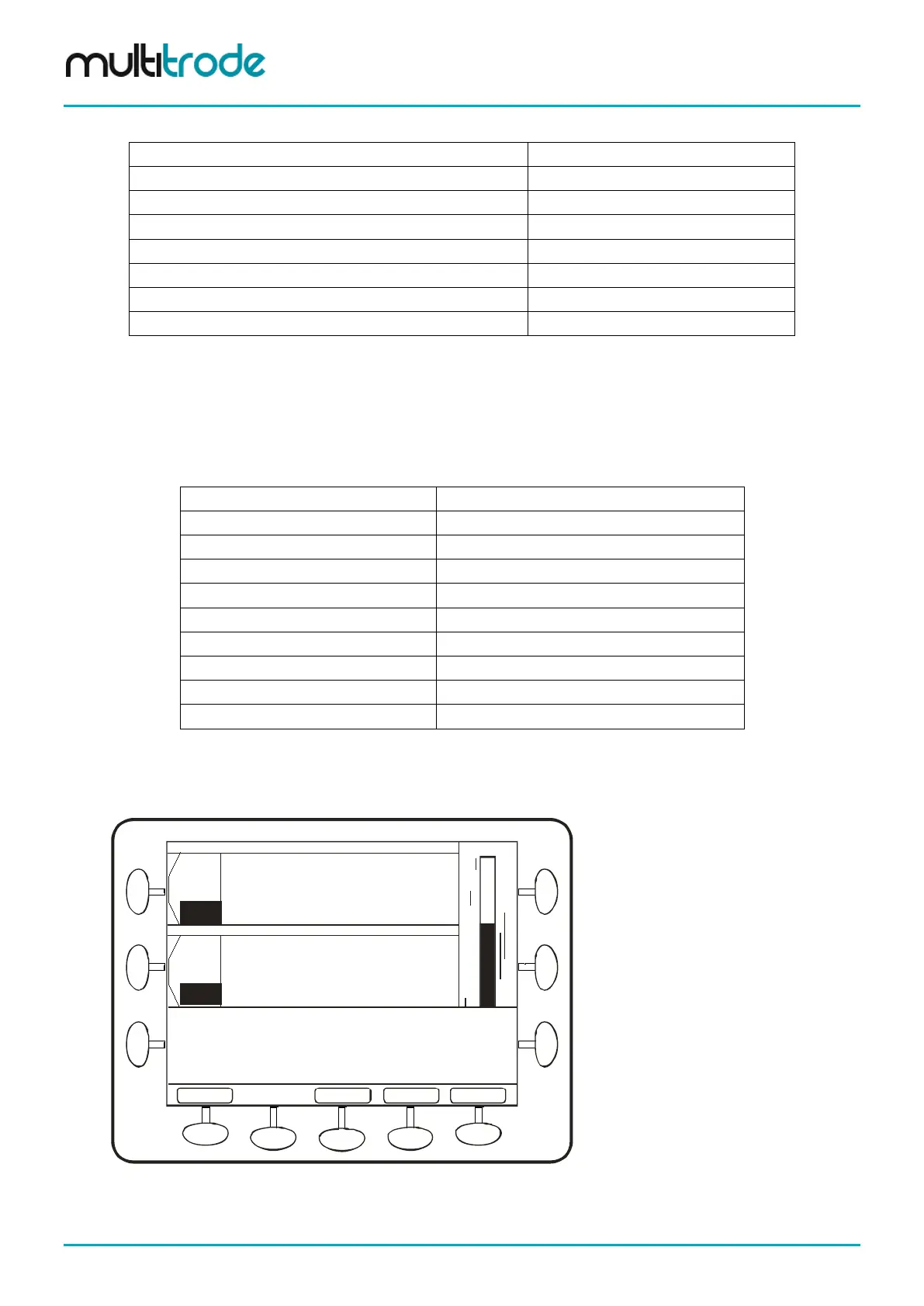

Table 44 - Customize Display - Pump Data
27.3 Bottom Section
The bottom 3 lines of the Pump Station display can also be customized. Options are:
Date and Time*
DSP Firmware Version
Supply Volts* (3-Phase Supply)
Last Login ID, Name and Date/Time
Mode and Profile*
Invalid Login Count and Date/Time
Alternation Mode
Invalid Admin Login Count and Date/Time
Inflow and Volume
Topboard Ains
Duration To Overflow
Topboard Aouts
Station Run Time (hrs) and Starts
Topboard Dins
1
Temperature
Topboard Douts
1
Last Overflow Time
Well Mixer
Site Name
* Defaults,
1
Maximum of 3 Dins or Douts displayed
Table 45 - Customize Display - Bottom 3 Lines
Example of a customized display:
Faults
5.2ft
Manual
Off
Auto
Pump1
RUNNING
Pump2
NEXT TO RUN
AVAILABLE
AVAILABLE
Flow: 0.0 gals/min
Flow: 18.3 gals/min
Settings Info History
Manual
Off
Auto
Supply: AB:416.6V, BC:420.2V, CA:418.7V
Login: ID3 - Donald 16/06/2007 - 06:45:00
Station Run Time (hrs): 2512, Starts 43233
Figure 174 - Customized Display Screen
Page 226 of 260 MultiSmart_IO_Manual_R20
