MultiSmart Installation & Operation Manual
19.2 Crisis Logger
The crisis logger is a very powerful datalogging feature which allows for higher resolution logging around
particular faults and events – without filling up the datalogger memory.
For example, the organization might have chosen not to log motor currents because the datalogger memory
fills up too quickly. However, when a motor over-temperature fault occurs, the currents immediately before
this fault might be of great interest.
The crisis logger allows the user to:
• Select “triggers” that activate the crisis logger
• Define the time period before and after each trigger to log
• Define the time interval between each log
• Select multiple tags to log when the trigger event occurs

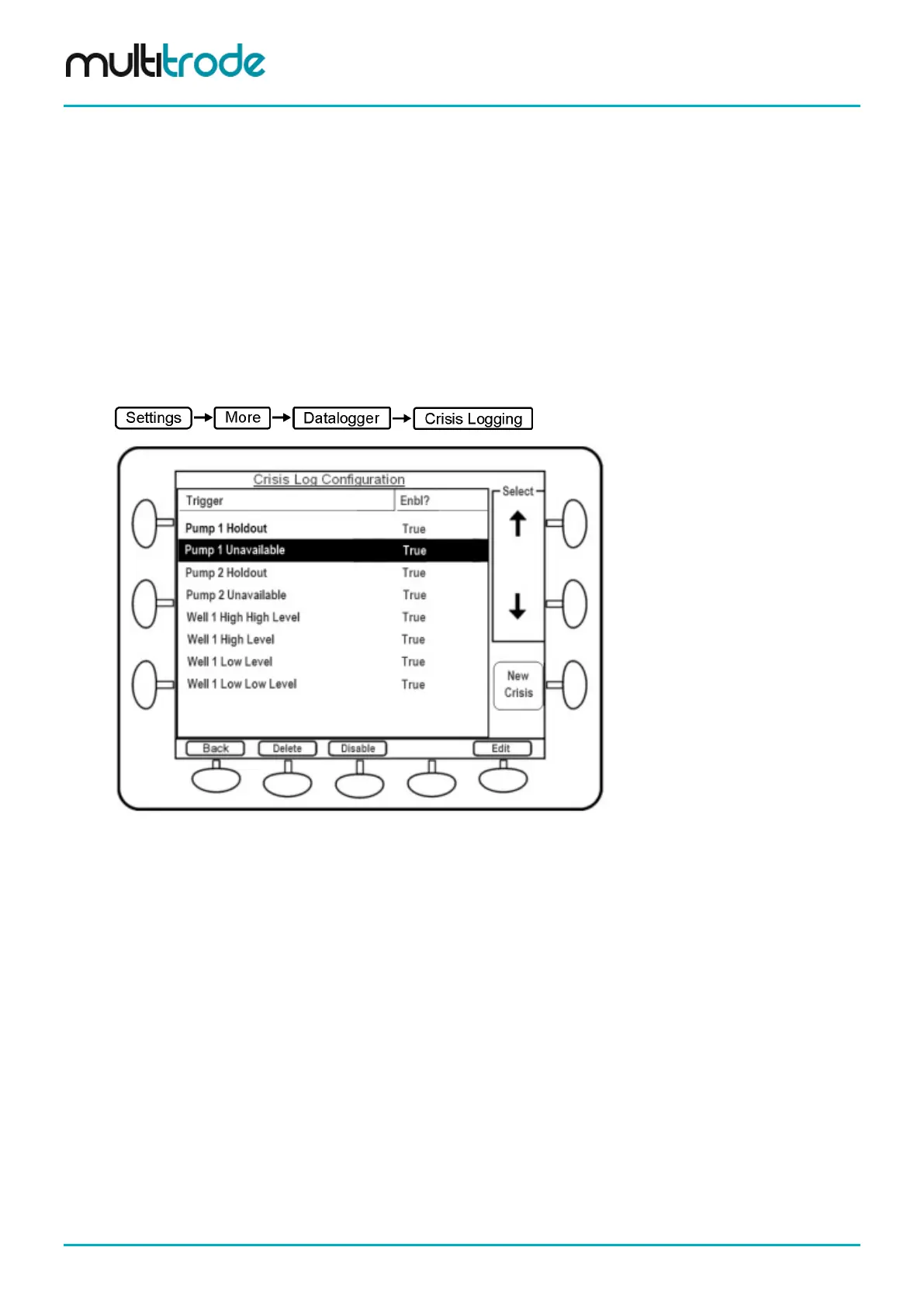

Figure 146 –Crisis Logger Main Configuration Screen
Navigation is similar to the Event Logger. Simply use the Select up and down arrows via the soft-keys on
the right to select a trigger, then click Edit.
To add a new trigger, click New Crisis. Both of these actions lead to the same screen, but in the case of
Edit, the screen is already populated with the existing information:
Page 166 of 260 MultiSmart_IO_Manual_R20
