9-12 Upgrading Your Server

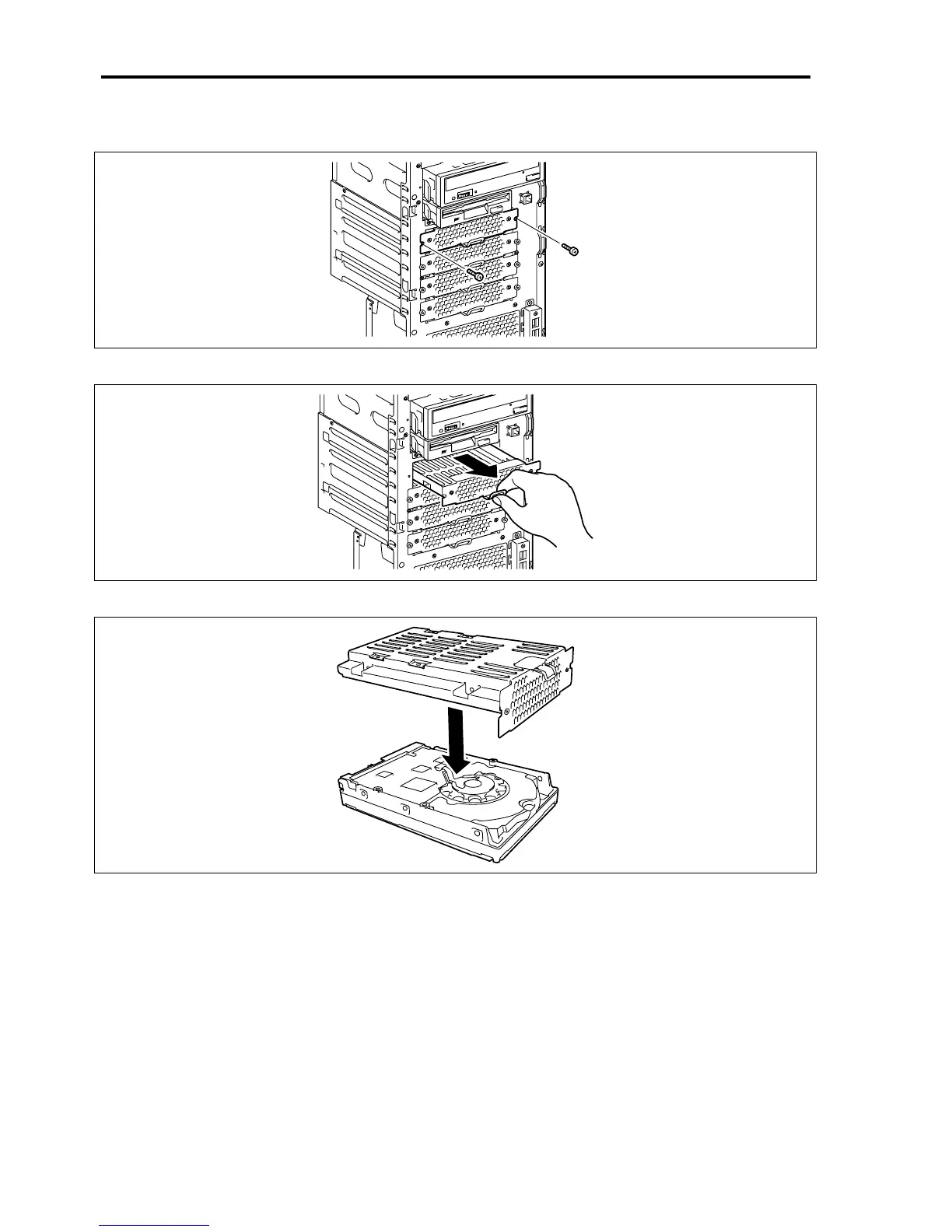

5. Remove two screws on the front panel securing the hard disk drive carrier.

6. Hold the lever and pull out the hard disk drive carrier.

7. Place the removed hard disk drive on a flat and rigid place, and put the hard disk drive carrier over it.
