Upgrading Your Server 9-39

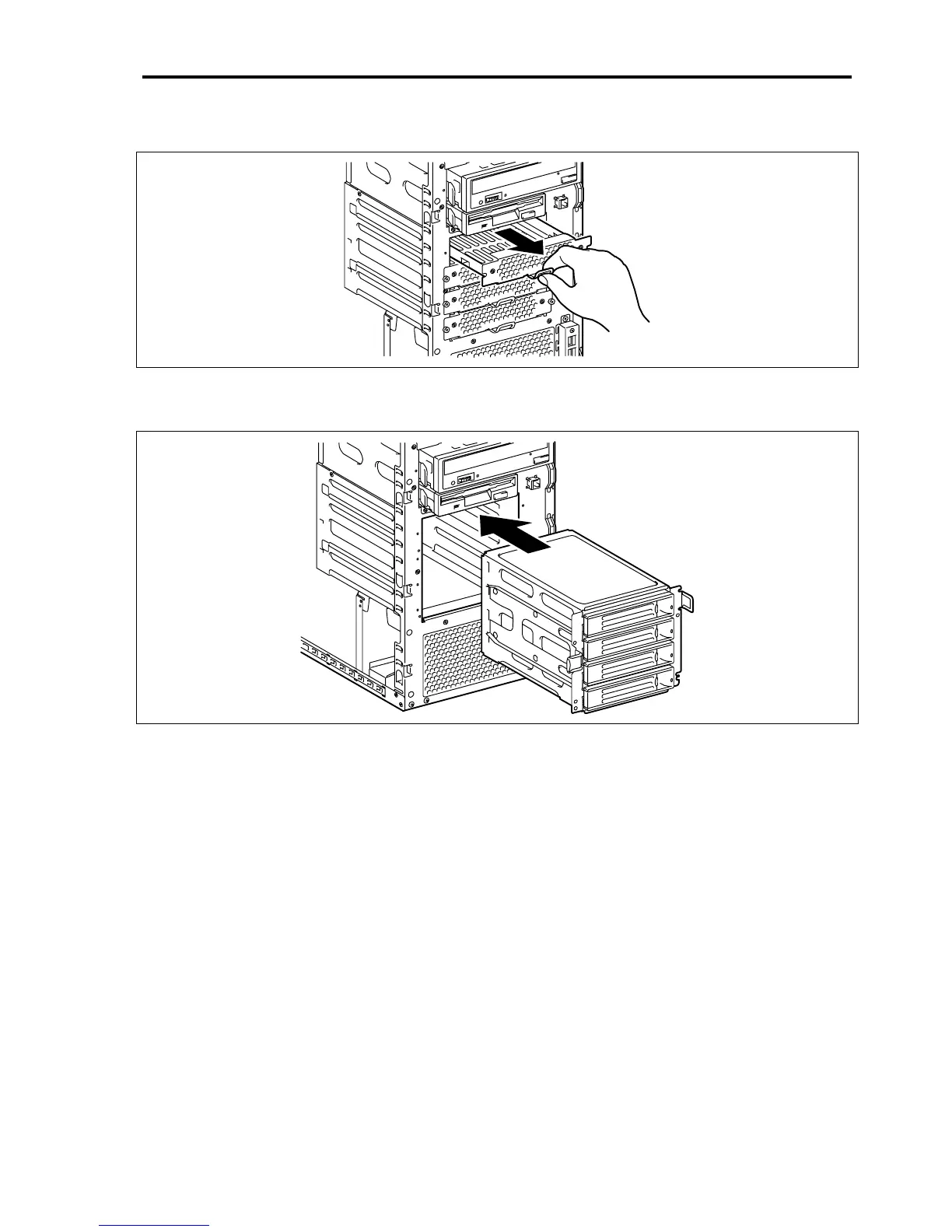

5. Hold the lever and pull out the hard disk drive carrier.

6. Pull out the remaining three hard disk drive carrier in the same manner.

7. Hold the HDD cage and insert it slowly into the server as shown in the figure below.
