Upgrading Your Server 9-41

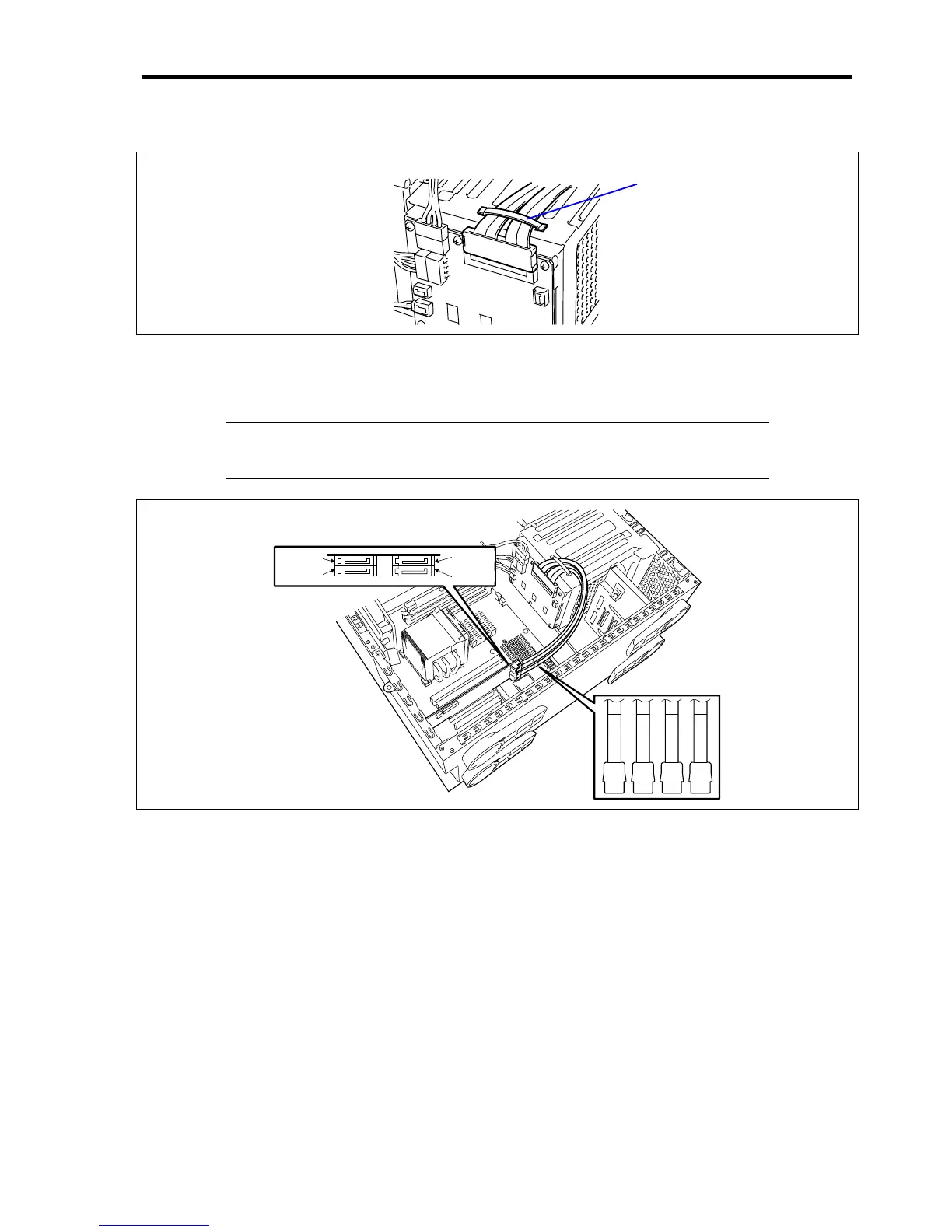

11. Fix the SATA cable as shown in the figure below.
12. Connect the SATA cable to the RAID board (SATA).
A label indicating a channel number of destination port is attached to SATA cable. Connect the SATA cable to
the port (connector) having the same number as that of SATA cable.
Cable clamp
NOTE: The figure below shows an example when connecting to the SX4100 Serial-ATA
Disk Array Controller board. The location of connector and assignment of channel numbers
depend on the board. Refer to the manual that comes with your board.
CH1 CH2 CH3 CH4
Channel 2
Channel 1
Channel 4
Channel 3
13. Install the left side cover.
To Next Page
