Page | 310

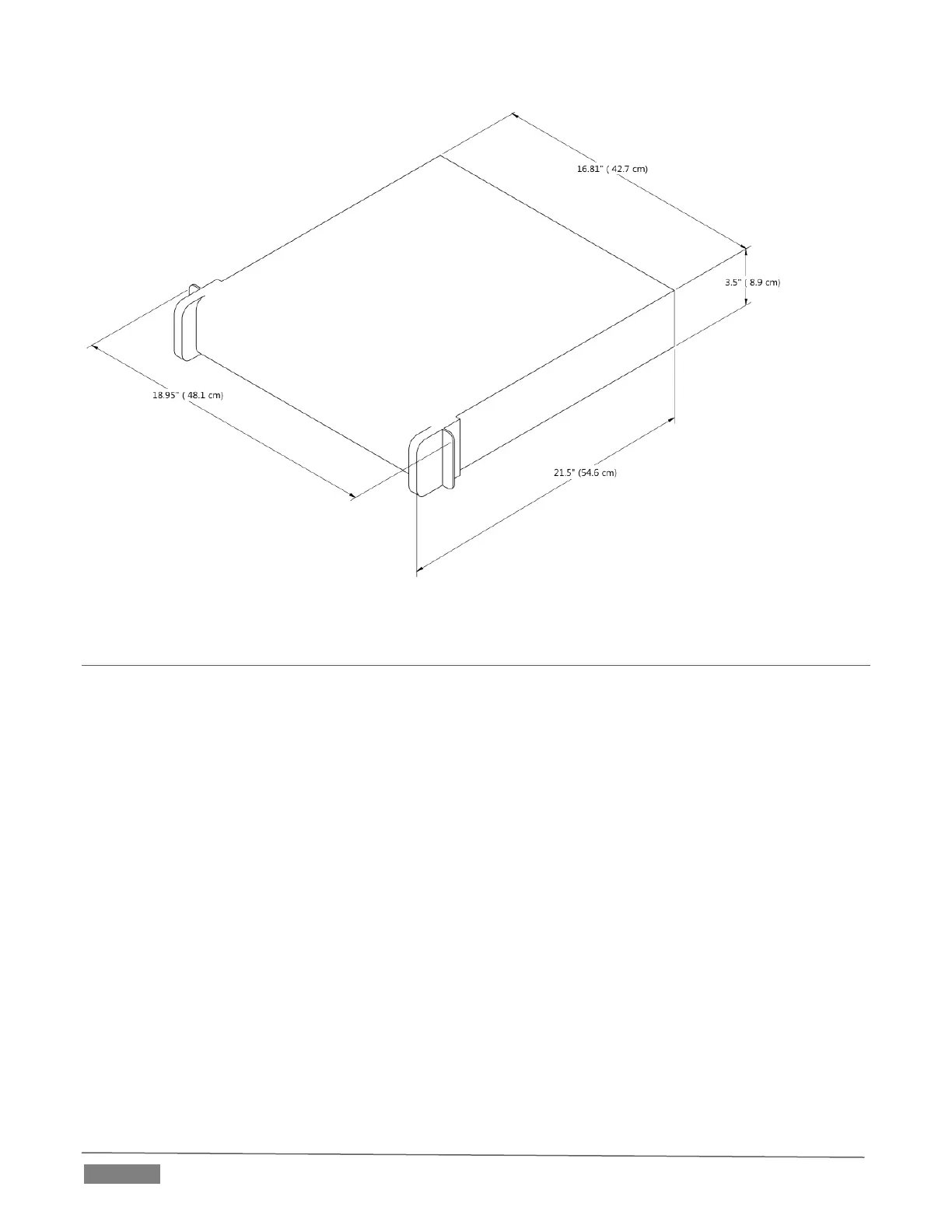

FIGURE 21-84
SECTION 21.12 TRICASTER 8000 AND 860
TriCaster 8000 and TriCaster 860 are encased in similar 4 Rack Unit (RU) chassis supplied with ‘ears’
designed to permit mounting in standard 19” rack architecture (Figure 21-85).
As these units weigh in at about 40 pounds (>18 KG), we strongly encourage you to provide a shelf or rear
support to distribute the load more evenly if rack-mounting is planned.
Good front and rear access is important for convenience in cabling, access to removable drive bays, and
should be considered mandatory for ventilation and cooling.
