Note: TriCaster Advanced Edition provides an Auto-detect (SDI) connection option. This will
automatically configure HD-SDI sources in an HD session, or SD-SDI sources in an SD session.
However, mismatches between source and session format require manual Connection type
selection.
7. Close the Hardware Configuration panel for now (note that you can click the Close button or simply
‘click outside’ the panel to close it).
8. Continue to configure all connected external video sources in the same manner.
We’ll look at the other options and settings later, but at this point you should be able to view the video inputs
you have configured on the Live Desktop multiview monitors.
3.11.1 CONFIGURE A VIDEO ROUTER INPUT
Right-click on the Switcher row button for the TriCaster input where the router is connected (see Section
3.4.2 for more detail) to select which router input will be transmitted to TriCaster.
SECTION 3.12 CONFIGURE AUDIO
Click the Audio Mixer tab (centered in the lower third of the Live Desktop) to reveal audio features, including
configuration controls for all internal and external audio sources and outputs, including streaming.

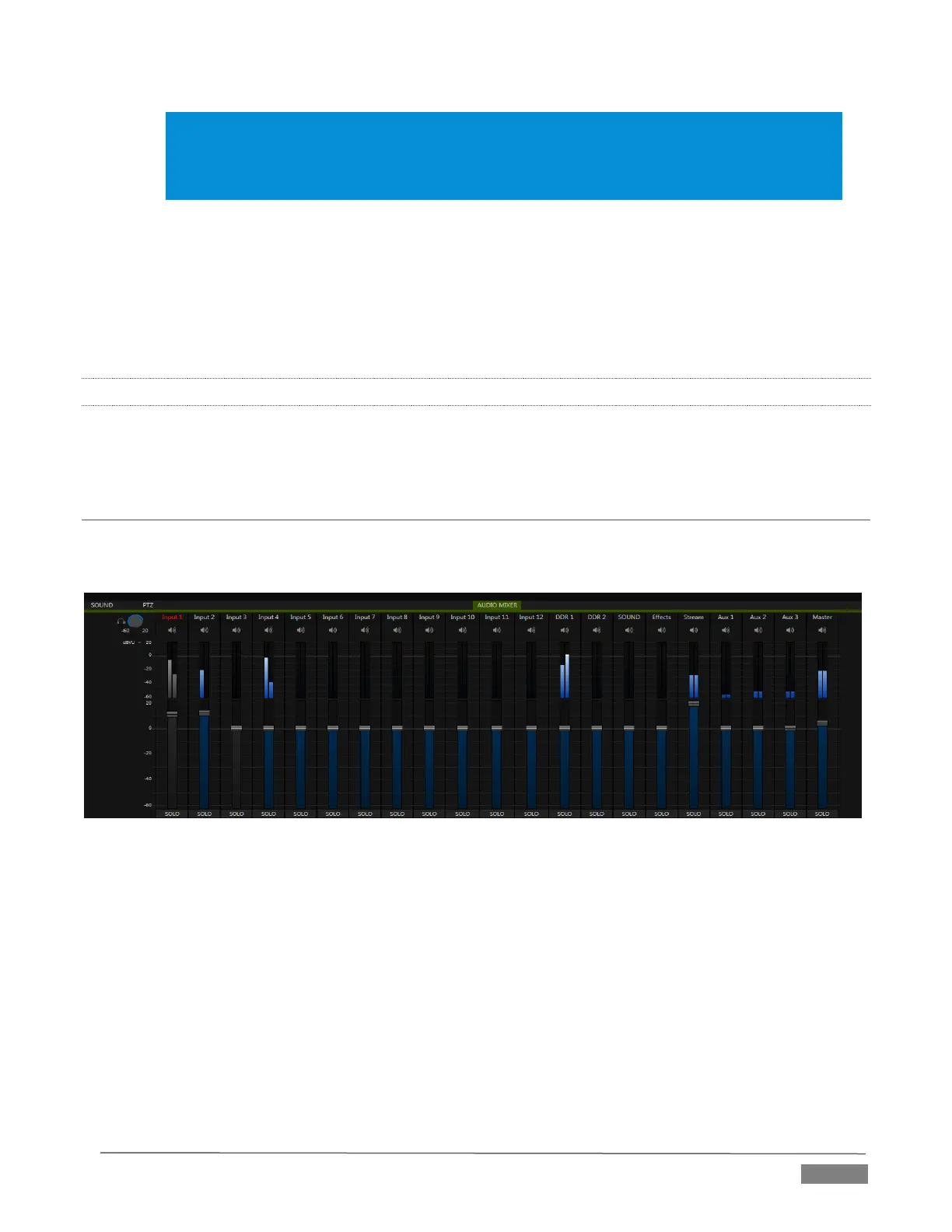

FIGURE 3-17 (4RU VERSION SHOWN)
Each input has its own small control panel, with Volume slider(s), VU meter(s), and other important features
conveniently located. At the top of each of these control panels is a label.
Roll the mouse pointer over the label to reveal a gear button at right which, when clicked, opens the
Configuration panel (Figure 3-18) for the input.
