If you plan to mount the surface in the latter manner, take care that the thickness of the supporting material
does not block access to the AC power connection and USB port at rear left on the control surface body.

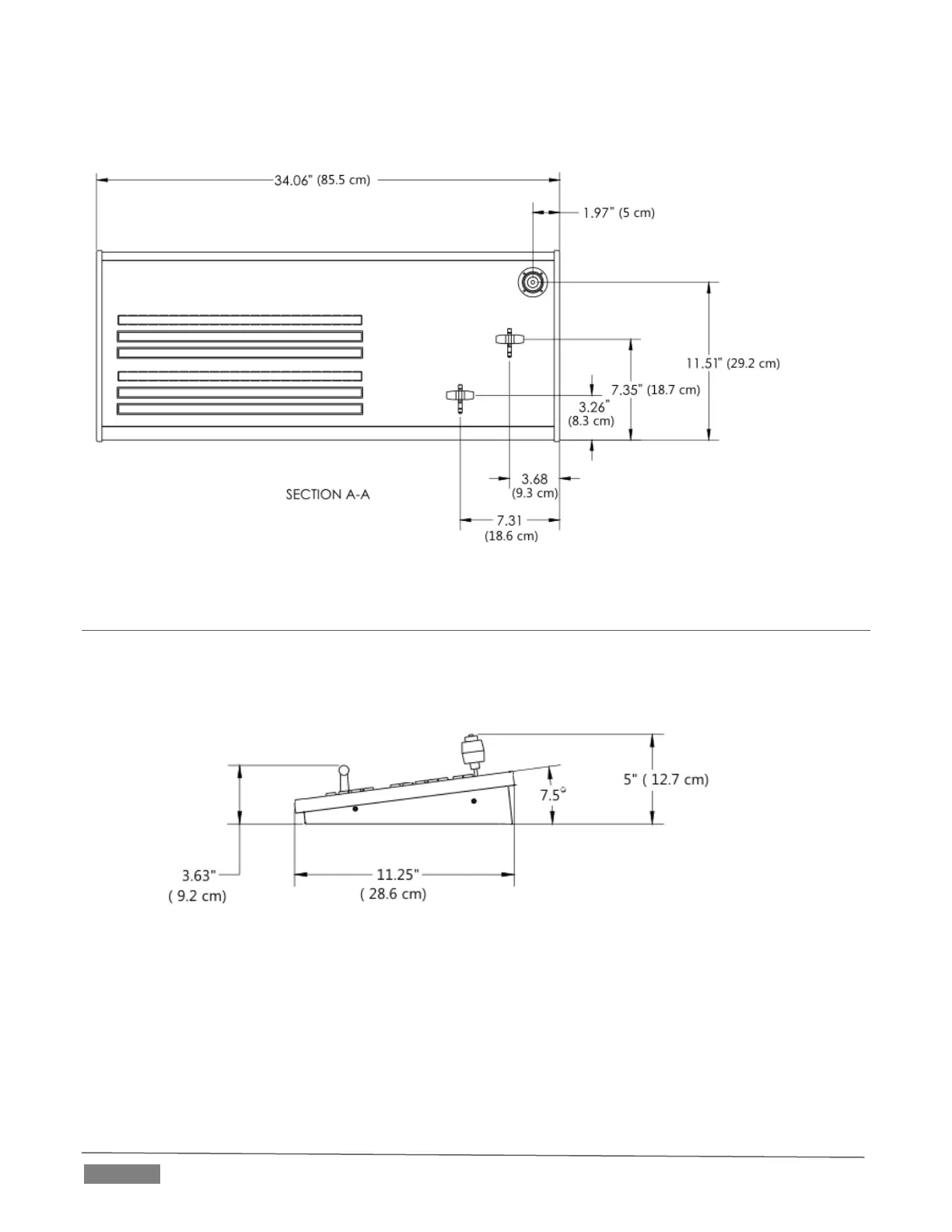

FIGURE 21-87
SECTION 21.14 TRICASTER 860 CS
Normally, the 860 CS is used in a table-top configuration. Otherwise, a rabbet on all four sides permits you
to embed the base in a cutout prepared for the purpose.
FIGURE 21-88
At the sides, a ½” (1.2 cm) ledge is formed for this purpose. The overlap provided front and back is narrower,
about 5/16” (.31 cm).
