4RU TriCasters offer two pairs of four audio output connectors:
i. Connectors 1a-(1b or 1d) provide sound from the mix assigned to Output 1 (defaults to
Master in Output Configuration)
ii. Connectors 2a-(2b or 2d) provide sound from the mix assigned to Output 2 (defaults to Aux
in Output Configuration)
Note: These two output groups are actually treated by TriCaster as four independent stereo outputs, each
configured and controlled separately; see Chapter 15, Audio.
b. Digital audio – A separate digital audio connection is not necessary for SDI or HDMI output with
embedded audio. AES/EBU connectors are provided for Output 1(channels a-d) on 4RU models.
Hint: TriCaster’s SDI and analog output sections can be used simultaneously. For example, you could use
the Composite output to view your program on a local composite monitor at the same time as you use the
SDI connection to supply broadcast equipment.
3.7.3 SUPPLEMENTAL VIDEO OUTPUTS

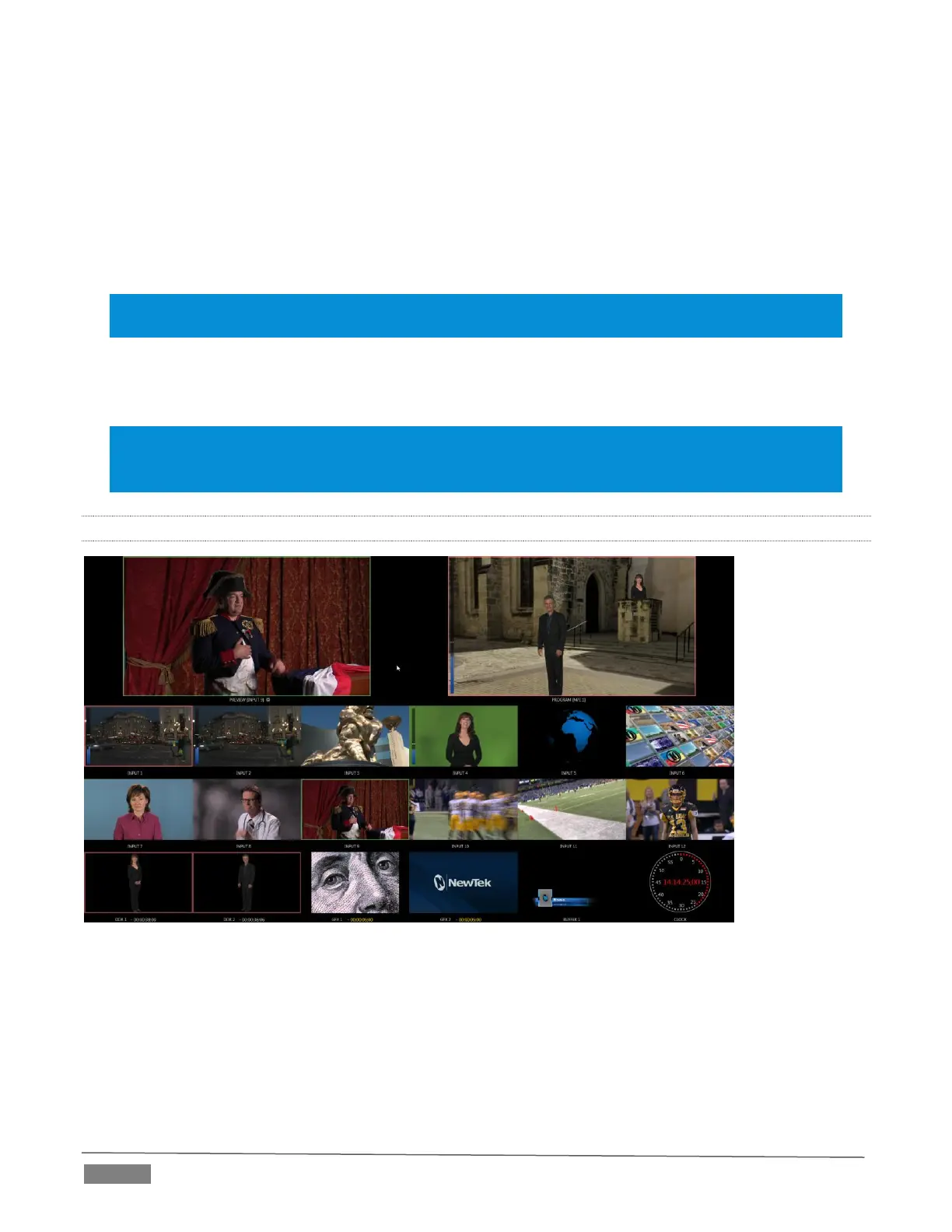

FIGURE 3-6
Additional dedicated video outputs make it possible to connect monitors or projection devices to TriCaster
for a variety of purposes including program output for IMAG (Image Magnification) installations or flexible
monitoring for the convenience of the operator.
1. TriCaster’s external Multiview output is supplied by a connector located near the main Interface
monitor connector (RU models) or a neighboring HDMI port (2RU models). Again, connect a suitable
