Page | 313

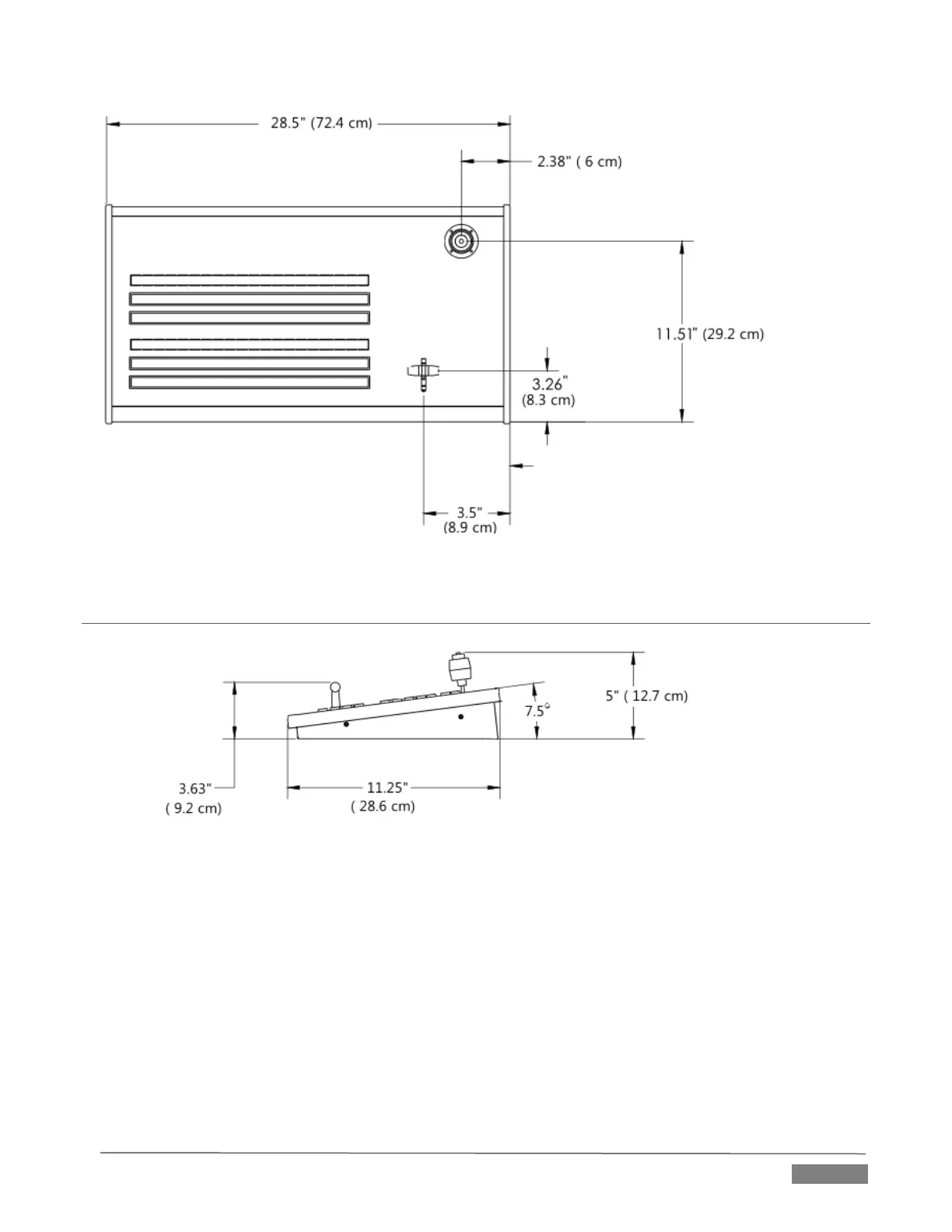

FIGURE 21-89
SECTION 21.15 TRICASTER 460 CS
FIGURE 21-90
Normally, the 460 CS is used in a table-top configuration. Otherwise, a rabbet on all four sides permits you
to embed the base in a cutout prepared for the purpose.
At the sides, a ½” (1.2 cm) ledge is formed for this purpose. The overlap provided front and back is narrower,
about 5/16” (.31 cm).
