Omron CJ2 CPU UNIT SOFTWARE User Manual

5 Understanding Programming
5-66
CJ2 CPU Unit Software User’s Manual
Input Instructions (Logical Starts and Intermediate Instructions):
The instruction reads bit status, makes comparisons, tests bits, or perform other types of processing
every cycle and will output an ON execution condition (power flow) when results switch from OFF to
ON. The execution condition will turn OFF the next cycle.
Input Instructions (Logical Starts and Intermediate Instructions):
The instruction reads bit status, makes comparisons, tests bits, or perform other types of processing
every cycle and will output an OFF execution condition (power flow stops) when results switch from
OFF to ON. The execution condition will turn ON the next cycle.
Downwardly Differentiated Instructions (Instruction Preceded by %)
Output Instructions:
The instruction is executed only during the cycle in which the execution condition changed from ON
to OFF and is not executed in the following cycles.
Input Instructions (Logical Starts and Intermediate Instructions):
The instruction reads bit status, makes comparisons, tests bits, or perform other types of processing
every cycle and will output the execution condition (power flow) when results switch from ON to OFF.
The execution condition will turn OFF the next cycle.
Input Instructions (Logical Starts and Intermediate Instructions):
The instruction reads bit status, makes comparisons, tests bits, or perform other types of processing
every cycle and will output an OFF execution condition (power flow stops) when results switch from
ON to OFF. The execution condition will turn ON the next cycle.
1.03

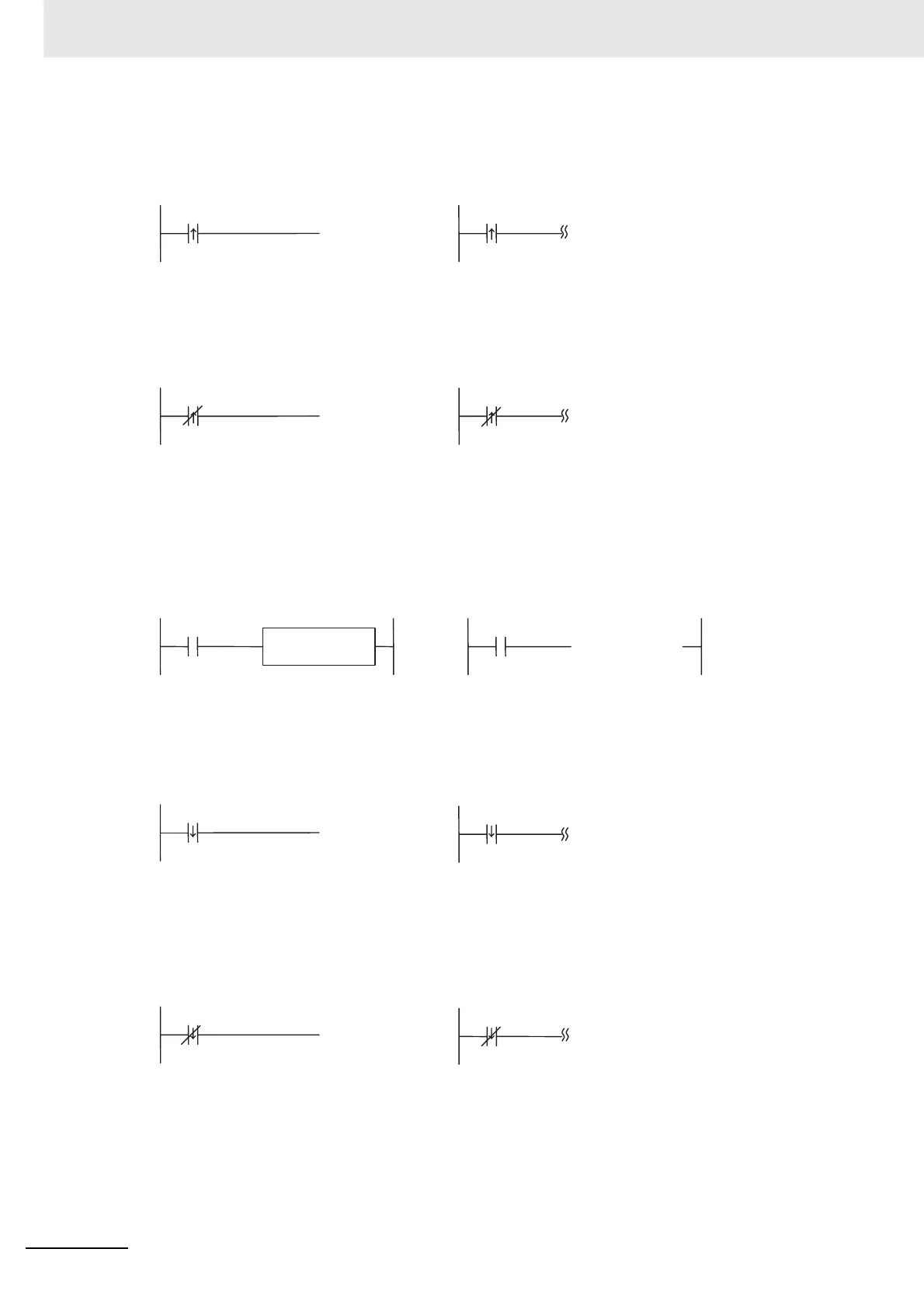

Example
Upwardly differentiated input instruction
ON execution condition created for one
cycle only when CIO 1.03 goes from
OFF to ON.
1.03
Upwardly differentiated input instruction
OFF execution condition created for one
cycle only when CIO 1.03 goes from
OFF to ON.
Example
1.02
Example
%SET
Executes the SET instruction once
when CIO 1.02 goes ON to OFF.
(%) Downwardly
differentiated
instruction
[ ]
1.03
Example
Downwardly differentiated instruction
Will turn ON when the CIO 1.03 switches from
ON → OFF and will turn OFF after one cycle.
1.03
Example
Downwardly differentiated input instruction
OFF execution condition created for one
cycle only when CIO 1.03 goes from ON
to OFF.
