6 I/O Memory Areas
CJ2 CPU Unit Software User’s Manual
6-22 Clock Pulses
6
6-2-2 Output Bits
6-22 Clock Pulses
The Clock Pulses are flags that are turned ON and OFF at regular intervals by the system.
The Clock Pulses are read-only; they cannot be overwritten from instructions or the CX-Programmer.
They are cleared at the start of operation.
Clock Pulses are specified using global symbols, such as P_0_1ms and P_1ms.

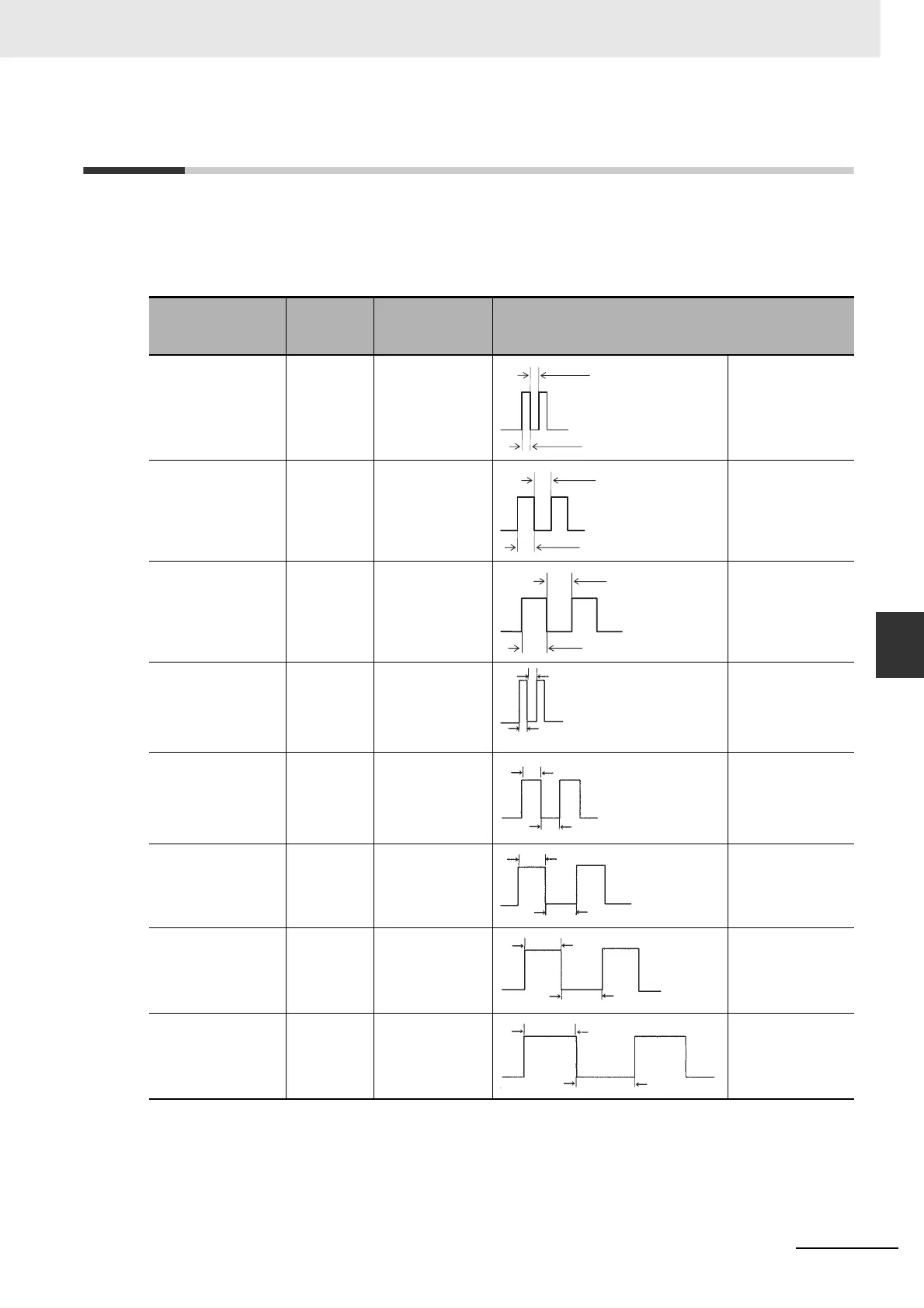

Name Symbol
Name on Pro-
gramming Con-
sole
Operation
0.1 ms Clock Pulse P_0_1ms 0.1 ms ON for 0.05 ms
OFF for 0.05 ms
1 ms Clock Pulse P_1ms 1 ms ON for 0.5 ms
OFF for 0.5 ms
0.01 s Clock Pulse P_0_01s 0.01 s ON for 5 ms
OFF for 5 ms
0.02 s Clock Pulse P_0_02_s 0.02 s ON for 0.01 s
OFF for 0.01 s
0.1 s Clock Pulse P_0_1s 0.1 s ON for 0.05 s
OFF for 0.05 s
0.2 s Clock Pulse P_0_2s 0.2 s ON for 0.1 s
OFF for 0.1 s
1 s Clock Pulse P_1s 1 s ON for 0.5 s
OFF for 0.5 s
1 min Clock Pulse P_1min 1 min ON for 30 s
OFF for 30 s
0.05 ms
0.05 ms
0.5 ms
0.5 ms
5 ms
5 ms
0.01 s
0.01 s
0.05 s
0.05 s
0.1 s
0.1 s
0.5 s
0.5 s
30 s
30 s
