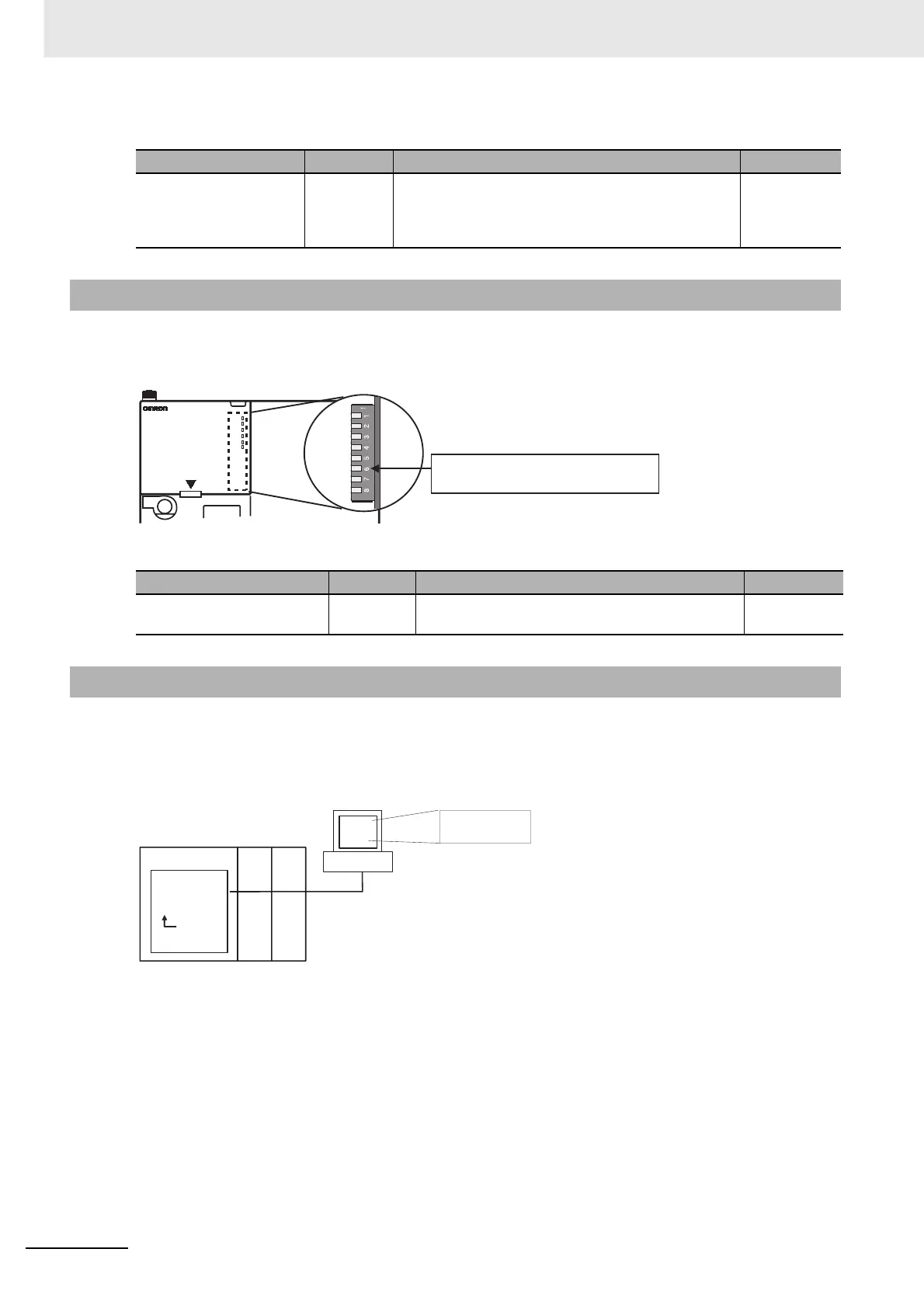

10 CPU Unit Functions
10-64
CJ2 CPU Unit Software User’s Manual
z Forced Status Hold Bit
The ON/OFF status of the DIP switch pin 6 on the front of the CPU Unit is stored in the DIP Switch Pin
Status Flag (A395.12) in the Auxiliary Area. For debugging or other purposes, an input can be manipu-
lated manually as a test without using an Input Unit.
z Auxiliary Area Flags and Words
When the CPU Unit detects that a bit set by the CX-Programmer has changed from OFF to ON or from
ON to OFF, the results are indicated in the Differentiate Monitor Completed Flag (A508.09). The Flag
will turn ON when conditions set for the differential monitor have been met. The CX-Programmer can
monitor and display these results on screen.
Name Address Function Access
Forced Status Hold Bit A500.13 Turn this bit ON to preserve the status of bits that have
been force-set or force-reset when changing between
PROGRAM and RUN or MONITOR mode or when
turning ON the power.
Read/write
10-7-2 Test Input
Name Address Function Access
DIP Switch Pin Status Flag A395.12 Contains the status set on pin 6 of the CPU Unit’s
DIP switch. (Refreshed every cycle.)
Read only
10-7-3 Differential Monitoring
SYSMAC
CJ2H
CPU64-EIP
PROGRAMMABLE
CONTROLLER
RUN
ERR/ALM
INH
PRPHL
COMM
BKUP
ON
Pin 6 ON: A395.12 is ON.
Pin 6 OFF: A395.12 is OFF.
C
X
-Programme
r
CPU Unit
Bit A
I/O memory
Monitored
for OFF to
ON
transition.
Detects bit A OFF
to ON transition.
