Omron CJ2 CPU UNIT SOFTWARE - Setting and Transferring Routing Tables

4 CPU Unit Initialization
4-14
CJ2 CPU Unit Software User’s Manual
1 Start the CX-Integrator.
2 Select Start Routing Table from the Tools Menu.
3 Select FINS Local.

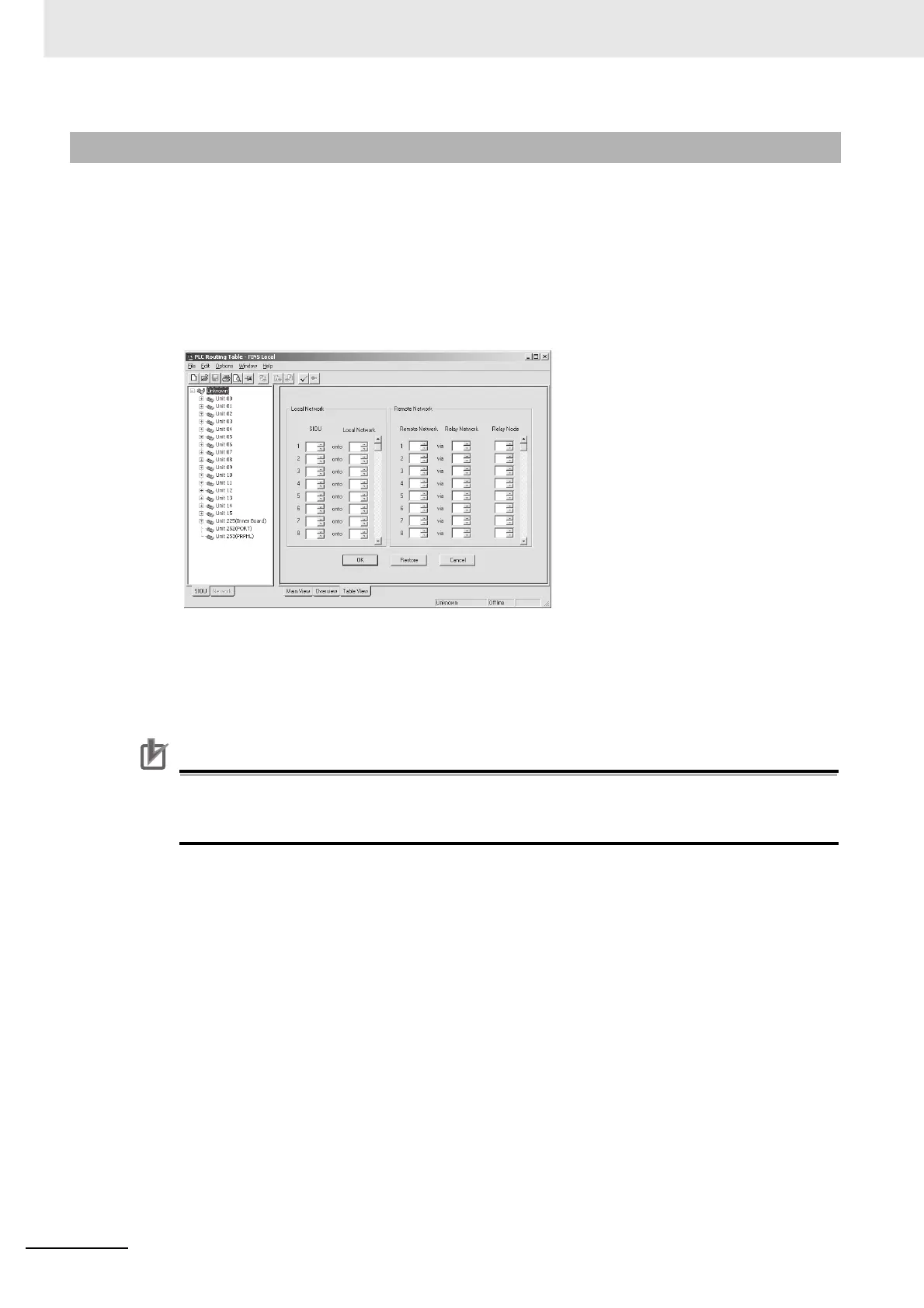

4 Edit the routing tables on the Table View Tab Page.
5 Connect the CX-Integrator online, and then select Transfer to PLC from the Options Menu to
transfer the routing tables to the CPU Unit.
6 Select Save Local Routing Table File from the File Menu.
Precautions for Correct UsePrecautions for Correct Use
Routing Table Data File
The routing tables are stored in an individual file (.rtg) created with the CX-Integrator. It is not
included in the CX-Programmer project file (.cxp).
4-4-3 Setting and Transferring Routing Tables
