Omron CJ2 CPU UNIT SOFTWARE User Manual

6-17
6 I/O Memory Areas
CJ2 CPU Unit Software User’s Manual
6-7 Pulse I/O Area
6

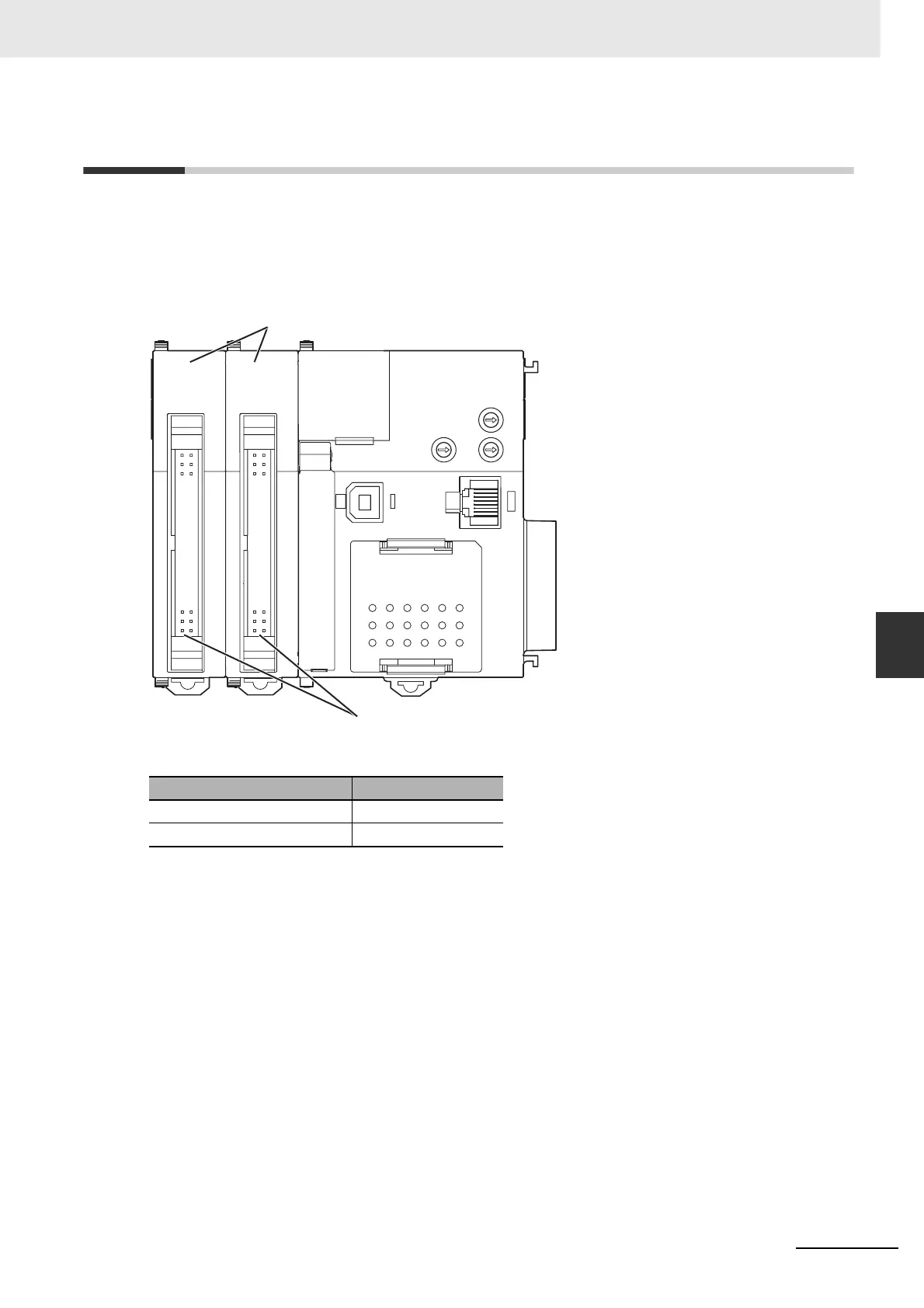

6-7 Pulse I/O Area
Pulse I/O Area addresses range from CIO 2960 to CIO 2963 for words and CIO 2960.00 to CIO
2963.15 for bits.
Words in the Pulse I/O Area are allocated to pulse I/O functions when a Pulse I/O Module is connected
to a CJ2M CPU Unit. Each Pulse I/O Module is allocated 2 words based on its module number. A total
of 4 words can be allocated (Pulse I/O Module 0 and Pulse I/O Module 1).
Allocations are as follows:
Refer to the CJ2M CPU Unit Pulse I/O Module User's Manual (Cat. No. W486) for details on the words
allocated to Pulse I/O Modules.
Word address Module number
CIO 2960 and CIO 2961 0
CIO 2962 and CIO 2963 1
CJ2M-MD21
@
Pulse I/O
Module 1
Pulse I/O
Module 0
Pulse I/O, 2 words/Module
