8-25
8 I/O Allocations and Unit Settings
CJ2 CPU Unit Software User’s Manual
8-2 Setting CPU Bus Units and Special I/O Units
8
8-2-2 Data Exchange

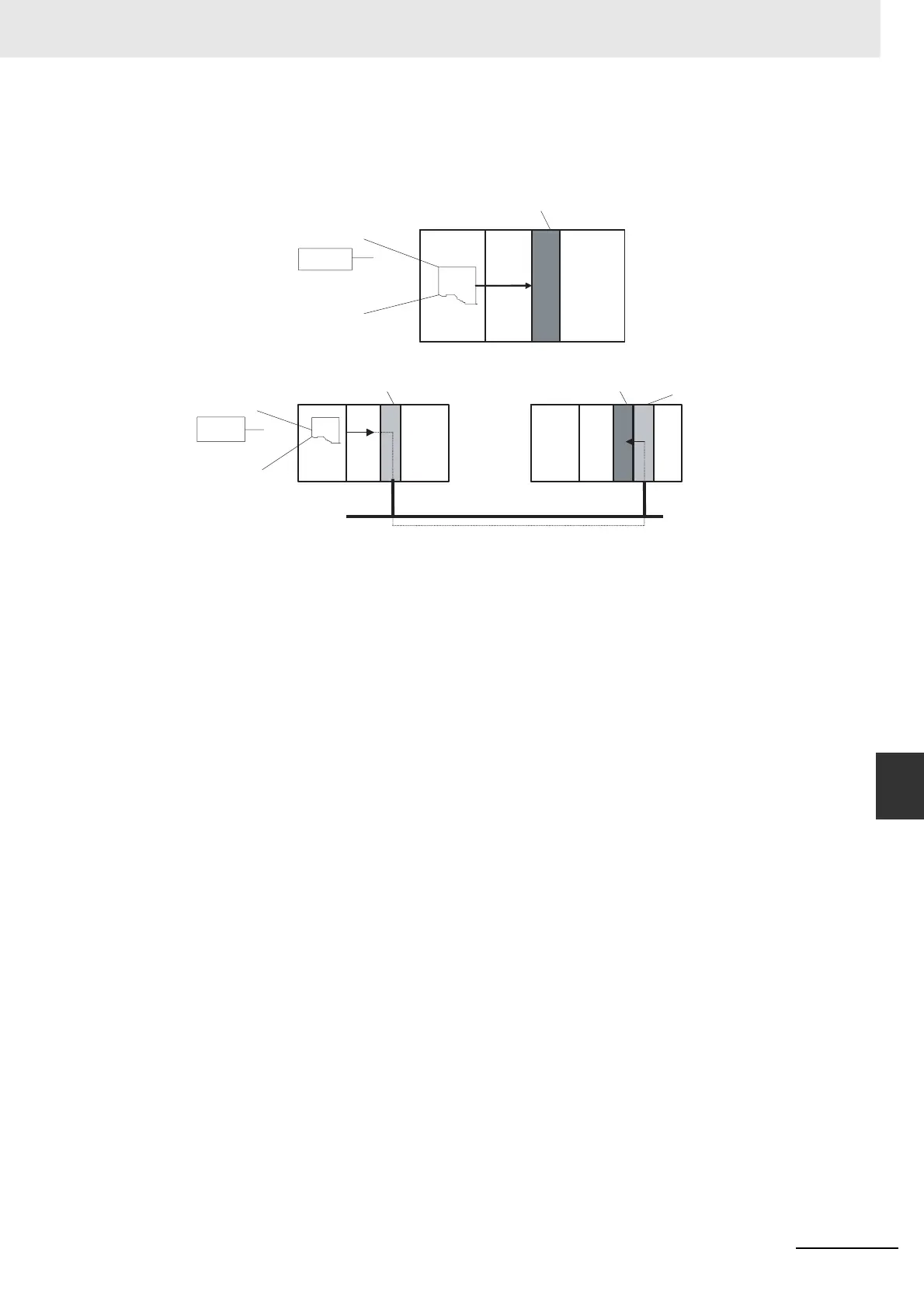

z FINS Commands
The CMND(490) instruction can be added to the ladder program to send a FINS command to the
Special I/O Unit.
Note FINS commands can be transmitted to Special I/O Units in other PLCs in the network, not just the local PLC.
z Special I/O Unit Initialization
Special I/O Units are initialized when the PLC's power is turned ON or the Unit's Restart Bit
(A502.00 to A507.15) is turned ON. The Unit's Special I/O Unit Initialization Flag (A330.00 to
A335.15) will be ON while the Unit is initializing.
I/O refreshing (cyclic I/O refreshing or refreshing by IORF(097) or FIORF(225) will not be performed
for a Special I/O Unit while its Initialization Flag is ON.
z Disabling Special I/O Unit Cyclic Refreshing
Ten words are allocated to each Special I/O Unit in the Special I/O Unit Area (CIO 2000 to CIO
2959) based on the unit number set on the front of each Unit. The data in the Special I/O Unit Area
is refreshed in the CPU Unit every cycle during I/O refreshing (just after execution of the END(001)
instruction).
I/O refreshing may take too long if too many Special I/O Units are installed. If I/O refreshing is taking
too much time, the PLC Setup can be set to disable cyclic refreshing for particular Special I/O Units.
(The Special I/O Unit Cyclic Refreshing Disable Bits are in PLC Setup addresses 226 to 231.)
If the I/O refreshing time is too short, the Unit's internal processing will not be able to keep pace, the
Special I/O Unit Error Flag (A402.06) will be turned ON, and the Special I/O Unit may not operate
properly. In this case, the cycle time can be extended by setting a minimum cycle time in the PLC
Setup or cyclic I/O refreshing with the Special I/O Unit can be disabled.
Then cyclic refreshing has been disabled, the Special I/O Unit's data can be refreshed during pro-
gram execution with IORF(097) or FIORF(225).
Special I/O Unit
CPU Unit
CMND
The FINS command is trans-
mitted when CMND(490) has
been executed in the program.
FINS
command
transmis-
sion
Special I/O Unit
CPU Unit
CPU Unit
CMND
Serial Communications Unit
Serial Communications Unit
FINS command transmission
The FINS
command is
transmitted when
CMND(490) has
been executed in
the program.
To Next Page
