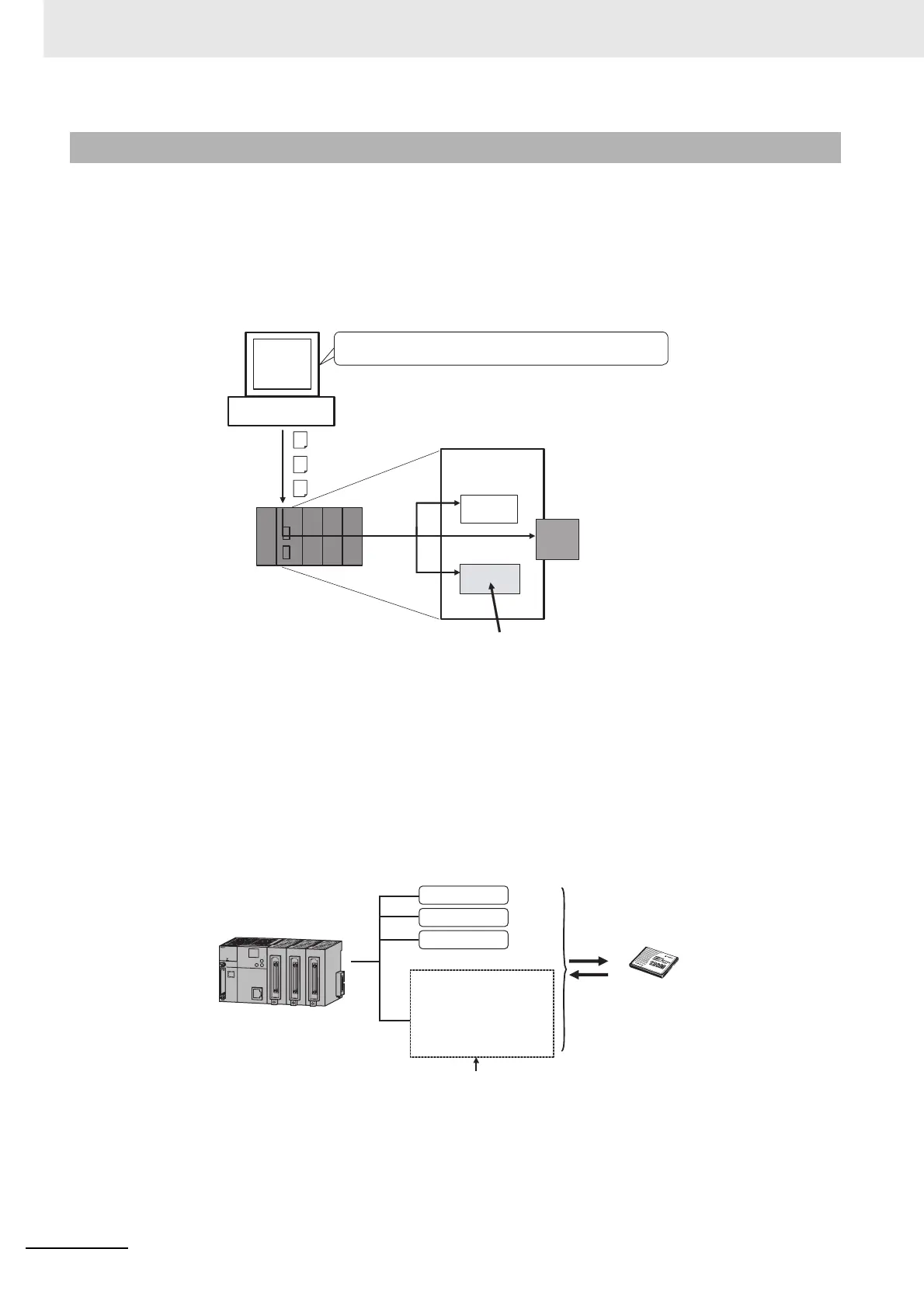

A comment memory is provided within the CPU Unit's internal backup memory. The following com-
ment/section data can be stored in and read from comment memory even if neither Memory Card nor
EM file memory are available.
• Symbol table files (including CX-Programmer symbols and I/O comments, but not network symbols)
• Comment files (CX-Programmer rung comments and other comments)
• Program index files (CX-Programmer section names, section comments, and program comments)
When downloading projects, either of the following storage locations can be selected as the transfer
destination for comment data and section data.
• Comment memory (in CPU Unit's backup flash memory)
•Memory Card
• EM file memory
The following files stored in comment memory can be backed up to a Memory Card when a simple
backup operation is executed, or the files can be restored to comment memory from the Memory Card.
• Symbol table files (including CX-Programmer symbols and I/O comments, but not network symbols)
• Comment files (CX-Programmer rung comments and other comments)
• Program index files (CX-Programmer section names, section comments, and program comments)
This enables backup/restoration of all data in the CPU Unit including I/O comments if an error occurs or
when adding a CPU Unit with the same specifications without requiring the CX-Programmer.
10-5-3 Comment Memory
CX-Programmer
Project
Transfer
Symbol table file
(except network symbols)
Comment file
Program index file
CPU Unit
Memory Card
EM file memory
Comment and section data can be stored in this area.
Comment and section data can be stored in the CPU Unit
when downloading projects.
Comment
memory
PER
IPH
ERAL
E
R
R/A
L
M
R
U
N
IN
H
C
O
M
M
P
R
PH
L
C
O
N
T
R
OL
LE
R
P
R
O
GRA
M
M
A
BL
E
PORT
O
P
EN
B
US
Y
M
CP
W
R
B
KUP
CPU6
4-EIP
CJ
2H
SY
S
M
AC
N
S
M
S
C
OMM
10M
100
M
OUT
IC101
OUT
IC
1
0
1
OUT
IC101
CPU Unit
Memory Card
User program
Parameters
I/O memory
• Symbol table file
(except network symbols)
(In comment memory)
• Comment file
• Program index file
These files can also be backed up
using a simple backup.
