Omron CJ2 CPU UNIT SOFTWARE User Manual

A-37
Appendices
CJ2 CPU Unit Software User’s Manual
A-1 Instruction Functions
App

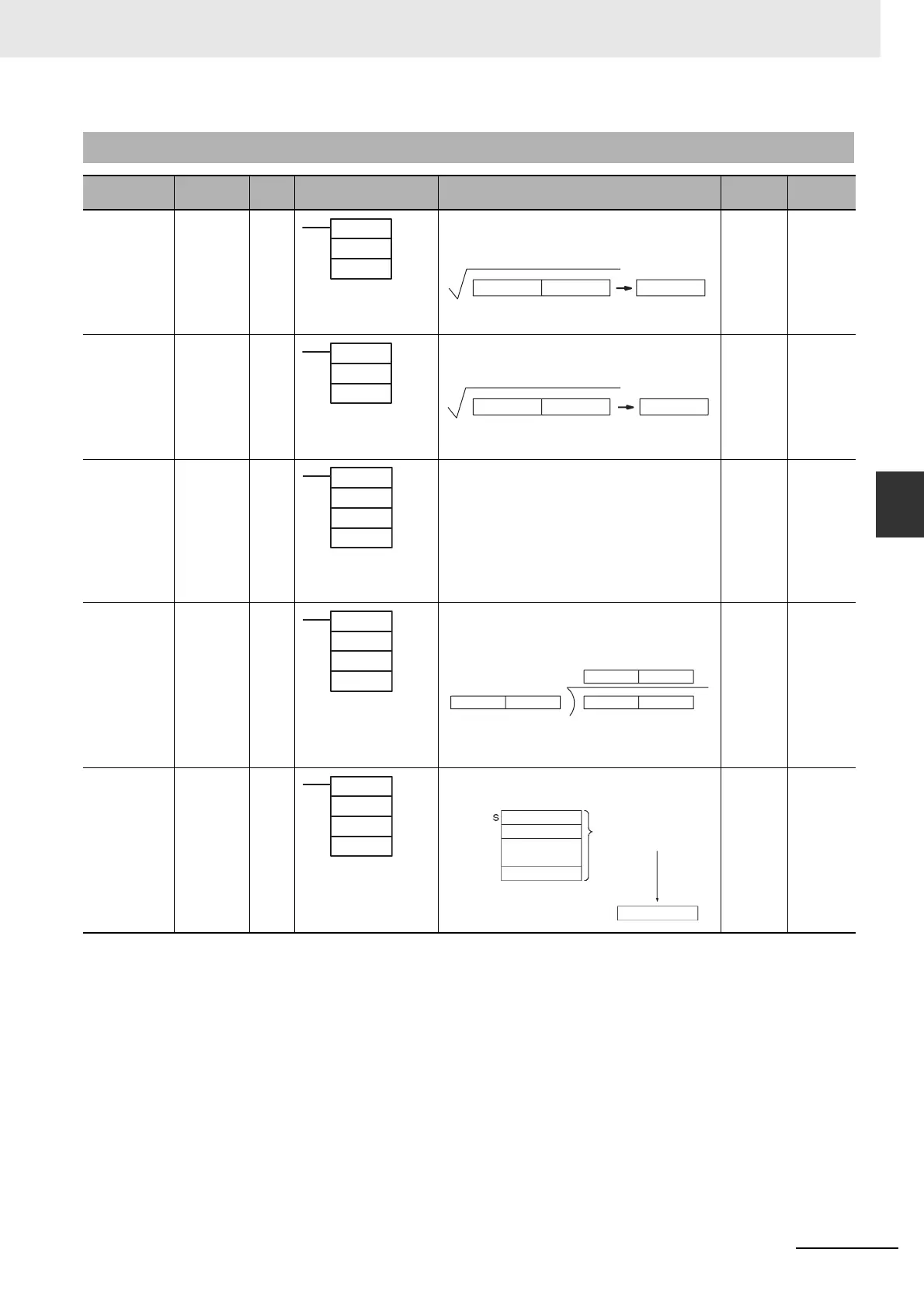

A-1-12 Special Math Instructions
A-1-12 Special Math Instructions
Instruction Mnemonic Code Symbol/Operand Function Location
Execution
condition
BINARY ROOT ROTB
@ROTB
620 Output Required
BCD SQUARE
ROOT
ROOT
@ROOT
072 Output Required
ARITHMETIC
PROCESS
APR
@APR
069 Calculates SIN, COS, or linear extrapolation.
SIN or COS calculation: Calculates the SIN or COS from
angle data (0° to 90°) and outputs the result in BCD to
four places below the decimal.
Linear extrapolation: Calculates and outputs a linear
extrapolation in binary from the specified input data.
Output Required
FLOATING
POINT DIVIDE
FDIV
@FDIV
079 Output Required
BIT COUNTER BCNT
@BCNT
067 Output Required
S
R
ROTB(620)
S: 1st source word
R: Result word
RS+1 S
Binary data (32 bits) Binary data (16 bits)
Computes the square root of the 32-bit binary content
of the specified words and outputs the integer portion
of the result to the specified result word.
S
R
ROOT(072)
S: 1st source word
R: Result word
RS+1 S
BCD data (8 digits) BCD data (4 digits)
Computes the square root of an 8-digit BCD number
and outputs the integer portion of the result to the
specified result word.
APR(069)
C
S
R
C: Control word
S: Source data
R: Result word
FDIV(079)
Dd
Dr
R
Dd: 1st dividend
word
Dr: 1st divisor
word
R: 1st result word
R+1 R
Dd+1 Dd
Dr+1 Dr
Quotient
Divides one 7-digit floating-point number by another.
The floating-point numbers are expressed in scientific
notation (7-digit mantissa and 1-digit exponent).
BCNT(067)
N
S
R
N: Number of
words
S: 1st source word
R: Result word
S+(N 1)−
to
R
N words
Counts the number of
ON bits.
Binary
result
Counts the total number of ON bits in the specified
word(s).
