With PLC-PT integrated simulation, it is possible to debug operation between screen data of an NS-
series PT and a CJ-series PLC program. This is achieved by linking the simulator function of the CX-
programmer and the offline test function of the CX-Designer PT screen design software. This enables
debugging screens and screen controls from ladder programming using only a computer rather than
connecting a computer and a PT with a cable. PLC-PT integrated simulation can also be started from
the CX-Programmer. For information on the debugging procedure, refer to the CX-Programmer Opera-
tion Manual (Cat. No. W446).

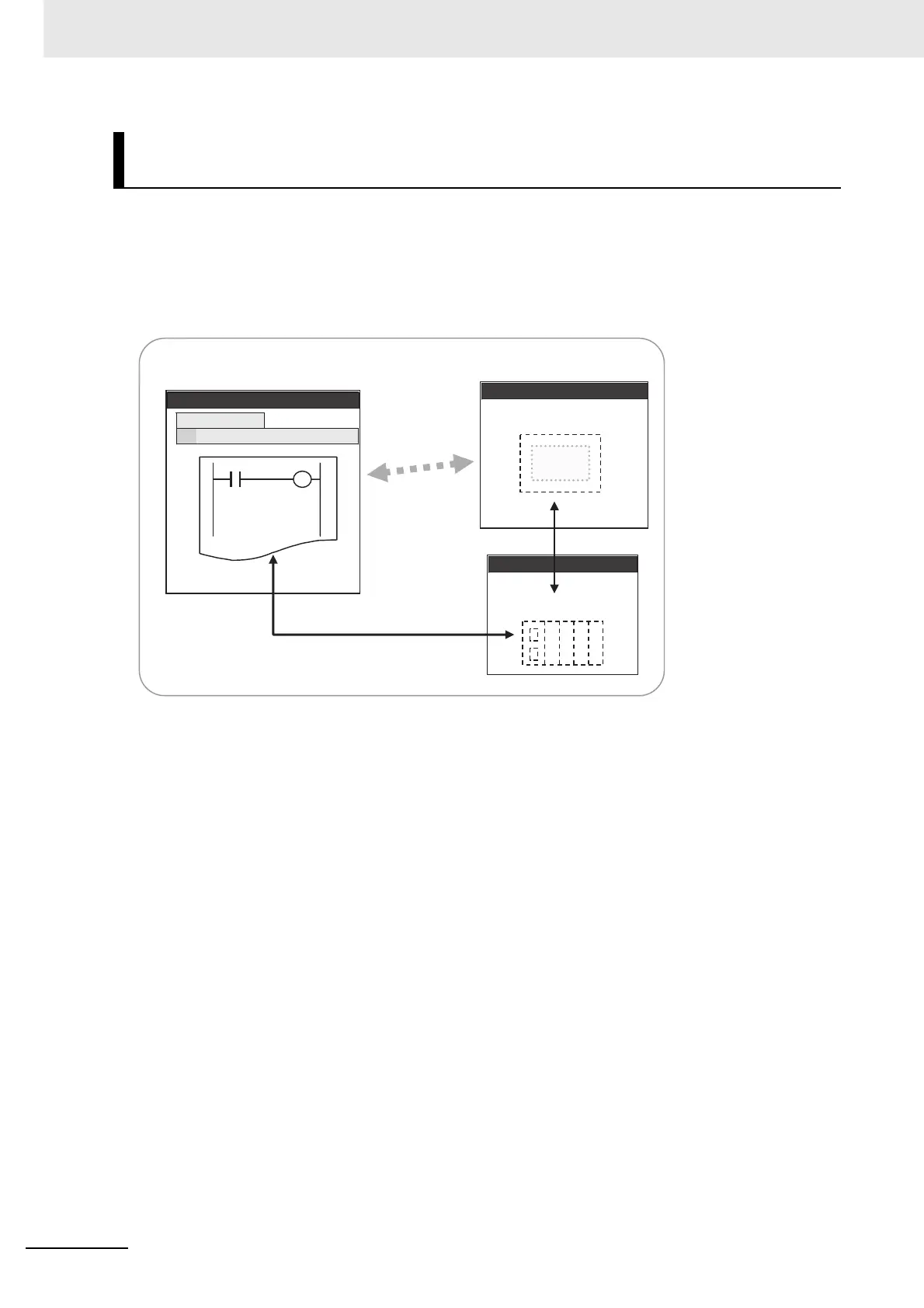

Debugging with Operation between PT and Ladder Programming:
Integrated Simulation
CX-Simulator
CX-Designer test function
CX-Programmer
Inside the computer
It is possible to check by linking operation
of the CX-Programmer programming and
the NS-series PT screens.
Start of PLC-PT integrated simulation
Virtual NS-series PT
Virtual internal
communications
Virtual PLC
Simulator online connection
Simulation
