8-13
8 I/O Allocations and Unit Settings
CJ2 CPU Unit Software User’s Manual
8-1 I/O Allocations
8
8-1-3 Manual Allocation

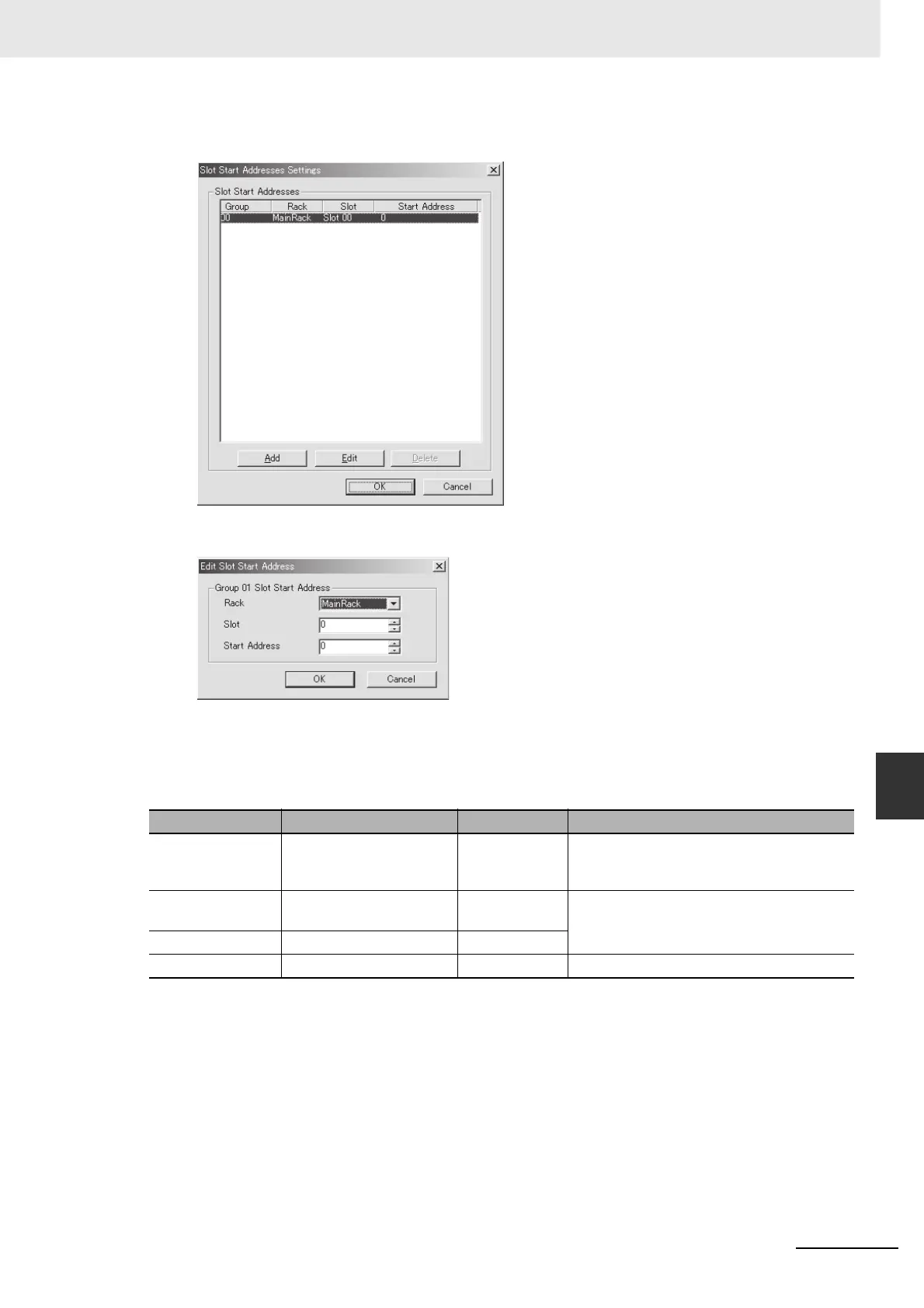

3 In the dialog box that will appear, set the first word for slot 00 on the CPU Rack.
4 To change the setting from CIO 0000, click the Edit Button. The follow dialog box will appear.
5 Set the desired word and click the OK Button.
6 To set slot first words for other groups, click the Add Button and make the appropriate settings
for the Rack, slot, and word.
Setting Setting range Default Remarks
Group 00 to 63 00 Groups numbers are allocated automatically
in the order the groups are displayed and
set.
Rack CPU Rack (“Main Rack”)
Racks 1 to 7
CPU Rack Group 00 always starts at slot 00 on the
CPU Rack.
Slot 00 to 03 0
First word 0 to 999 0 ---
To Next Page
