12-3
12 CPU Unit Cycle Time
CJ2 CPU Unit Software User’s Manual
12-1 Monitoring the Cycle Time
12
12-1-1 Monitoring the Cycle Time
When the minimum cycle time is set, the minimum cycle time can be changed while the CPU Unit is in
MONITOR mode.

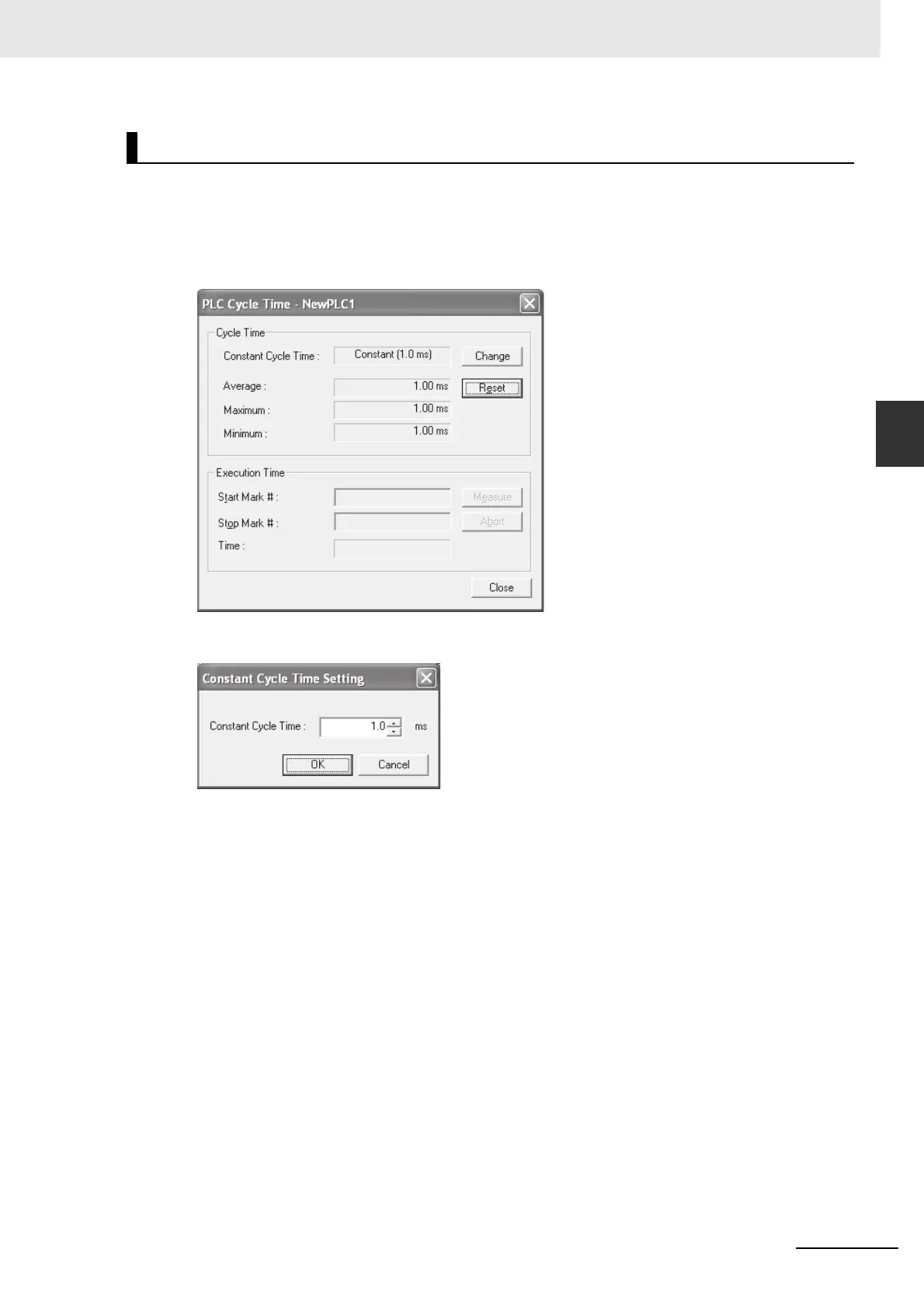

1 Select PLC Info - Cycle Time from the PLC Menu. The PLC Cycle Time Dialog Box will be dis-
played as shown below.
2 Click the Change Button. The Constant Cycle Time Setting Dialog Box will be displayed.
3 Change the time in the Constant Cycle Time Field and then click the OK Button. The minimum
cycle time will be changed.
Changing the Minimum Cycle Time
To Next Page
