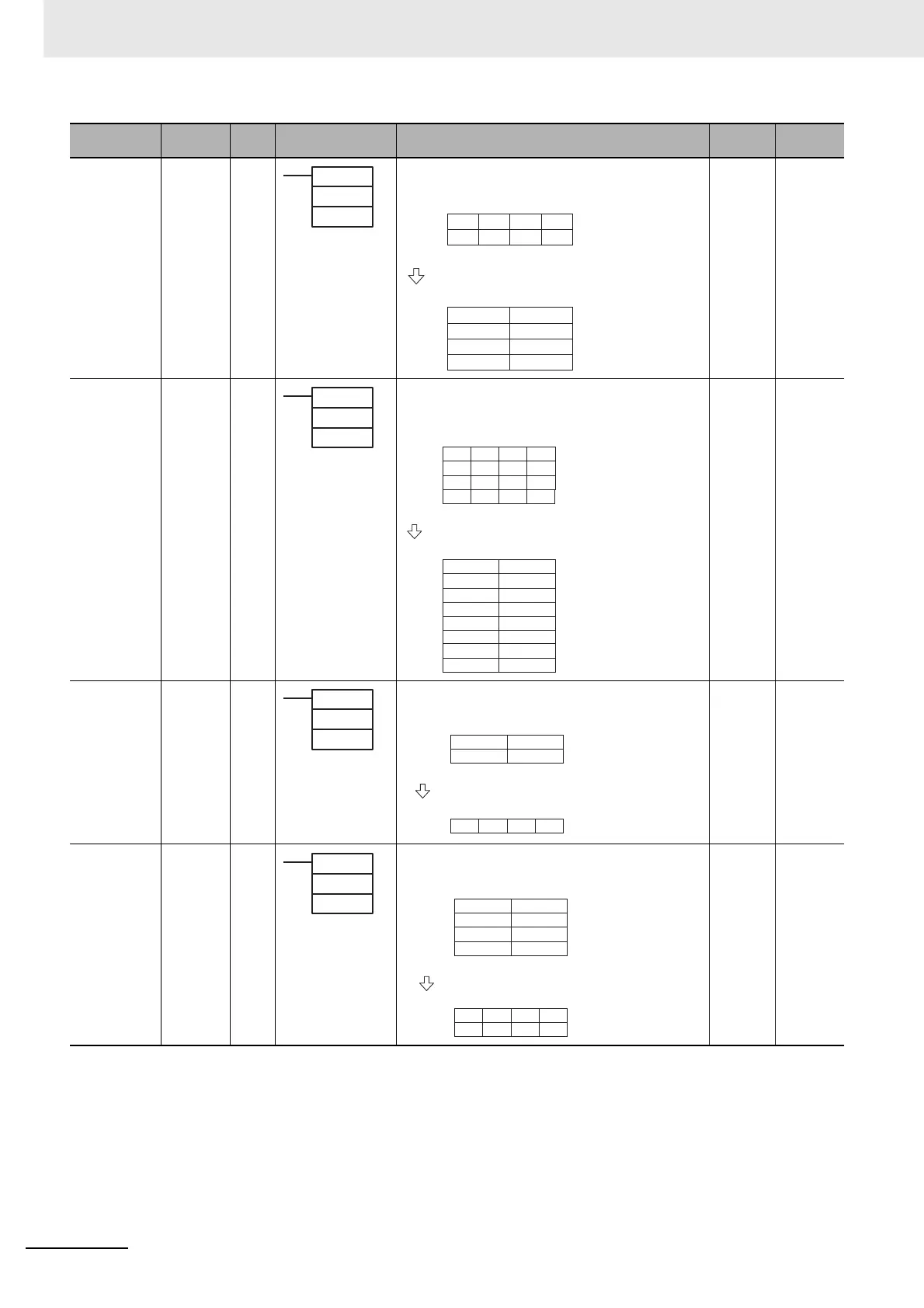

Omron CJ2 CPU UNIT SOFTWARE User Manual

Appendices
A-34
CJ2 CPU Unit Software User’s Manual
EIGHT-DIGIT
NUMBER TO
ASCII
STR8
@STR8
602 Converts an 8-digit hexadecimal number (#0000 0000 to
#FFFF FFFF) to ASCII data (8 characters).
Output Required
SIXTEEN-
DIGIT NUM-
BER TO ASCII
STR16
@STR16
603 Converts a 16-digit hexadecimal number (#0000 0000 0000
0000 to #FFFF FFFF FFFF FFFF) to ASCII data (16 charac-
ters).
Output Required
ASCII TO
FOUR-DIGIT
NUMBER
NUM4
@NUM4
604 Converts 4 characters of ASCII data to a 4-digit hexadecimal
number.
Output Required
ASCII TO
EIGHT-DIGIT
NUMBER
NUM8
@NUM8
605 Converts 8 characters of ASCII data to an 8-digit hexadecimal
number.
Output Required
Instruction Mnemonic Code Symbol/Operand Function Location
Execution
condition
STR8
S
D
S: Numeric
D: ASCII text
1 2 4 3
31 32
33 34
ASCII
5 6 8 7
35 36
37 38
15 8 7 11 12 3 4 0
15 8 7 0
D+1
D+2
D+3
D
Hexadecimal: #12345678
S
S+1
STR16
S
D
S: Numeric
D: ASCII text
8 9 B A
30 31
32 33
C D F E
34 35
36 37
4 5 7 6
38 39
41 42
43 44
45 46
0 1 2 3
15 8 7 11 12 3 4 0
15 8 7 0
ASCII
D+1
D+2
D+3
D+4
D+5
D+6
D+7
D
S
S+1
S+2
S+3
Hexadecimal: #1234567890ABCDEF
NUM4
S
D
S: ASCII text
D: Numeric
31 32
33 34
1 2 4 3
15 8 7 0
15 8 7 11 12 3 4 0
ASCII
D
S
S+1
Hexadecimal
NUM8
S
D
S: ASCII text
D: Numeric
31 32
33 34
35 36
37 38
1 2 4 3
5 6 8 7
15 8 7 0
15 8 7 11 12 3 4 0
ASCII
D
S
S+1
S+2
S+3
Hexadecimal
D+1
