A-64
CJ2 CPU Unit Software User’s Manual
DELIVER
COMMAND 2
CMND2
@CMND2
493 Up to 64 CMND2 instructions can be used simultaneously. They
are otherwise the same as CMND.
Output Required
EXPLICIT
MESSAGE
SEND
EXPLT 720 Sends an explicit message with any Service Code. Output Required
EXPLICIT
GET
ATTRIBUTE
EGATR 721 Reads status information with an explicit message (Get Attribute
Single, Service Code: 0E hex).
Output Required
EXPLICIT
SET
ATTRIBUTE
ESATR 722 Writes status information with an explicit message (Set Attribute
Single, Service Code: 0E hex)
Output Required
EXPLICIT
WORD
READ
ECHRD 723 Reads data to the local CPU Unit from a remote CPU Unit in the
network. (The remote CPU Unit must support explicit messages.)
Output Required

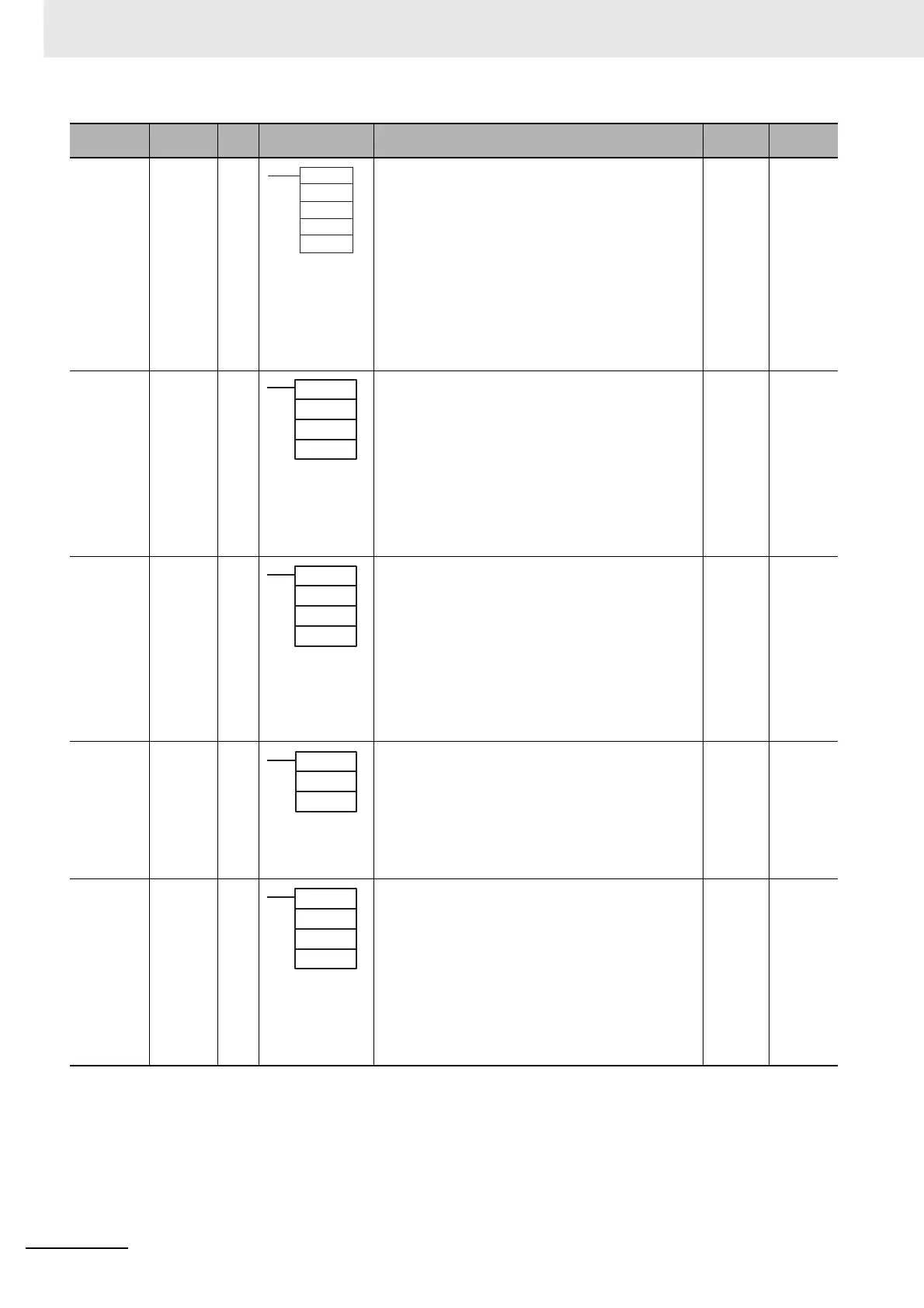

Instruction Mnemonic Code Symbol/Operand Function Location
Execution
condition
CMND2(493)
D
C
I
S
S: 1st command
word
D: 1st response
word
C: 1st control
word
I: 1st
communications
information word
EXPLT (720)
S
D
C
S: 1st word of
send message
D: 1st word of
received
message
C: 1st control
word
EGATR (721)
S
D
C
S: 1st word of
send message
D: 1st word of
received
message
C: 1st control
word message
ESATR (722)
S
C
S: 1st word of
send message
C: 1st control
word
ECHRD (723)
S
D
C
S:
1st source
word in remote
CPU Unit
D: 1st destination
word in local
CPU Unit
C: 1st control word
