Section 5 Object Operations 5-1 Creating Functional Objects
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

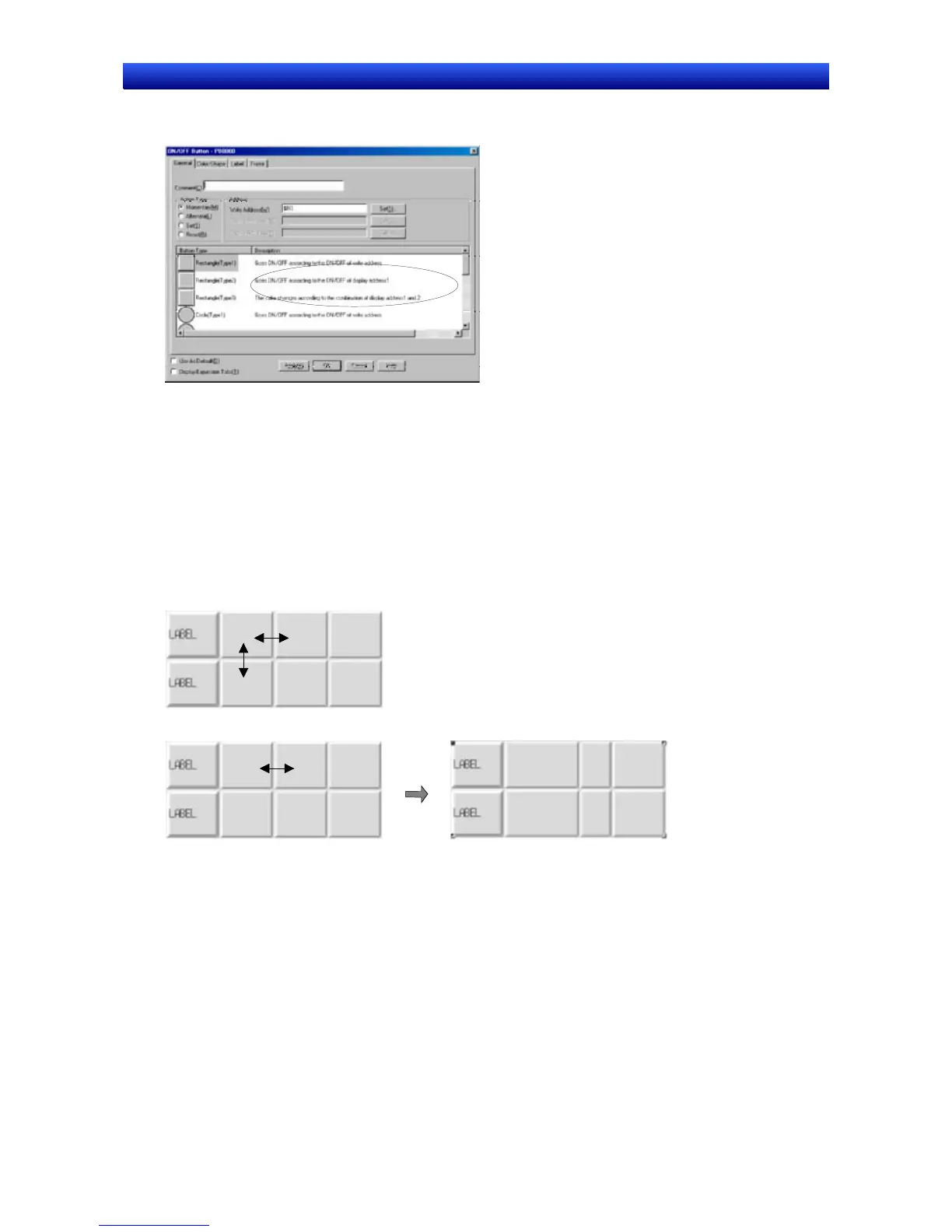

3. The Table Setting Dialog Box will be displayed. Click the Functional Object Default Button to dis-
play the Batch Setting Dialog Box.
4. The rest of the procedure is the same as for normal settings.
Changing Table Size, Line Height, and Column Widths
The width and height of functional objects in tables can be freely changed in line or column units.
Changing Individual Line Heights or Column Widths
This section describes how to change the line height or column width without changing the size of the
table.
The cursor shape changes as shown in the following diagram when the cursor is moved close to the
horizontal or vertical edges of the functional object.
Drag the cursor in the arrow directions until the line or column has reached the desired size.
5-6

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
