Section 7 System Settings 7-1 Settings
NS-Designer Operation Manual
♦ When the settings for whether the communications ports are used have been changed, close the
System Setting Dialog Box before setting the host address in $SB or $SW. Until the System Setting
Dialog Box is closed, the settings that existed prior to the changes are still enabled, and the new
host setting cannot be specified in the system memory allocation addresses.
Setting Routing Tables

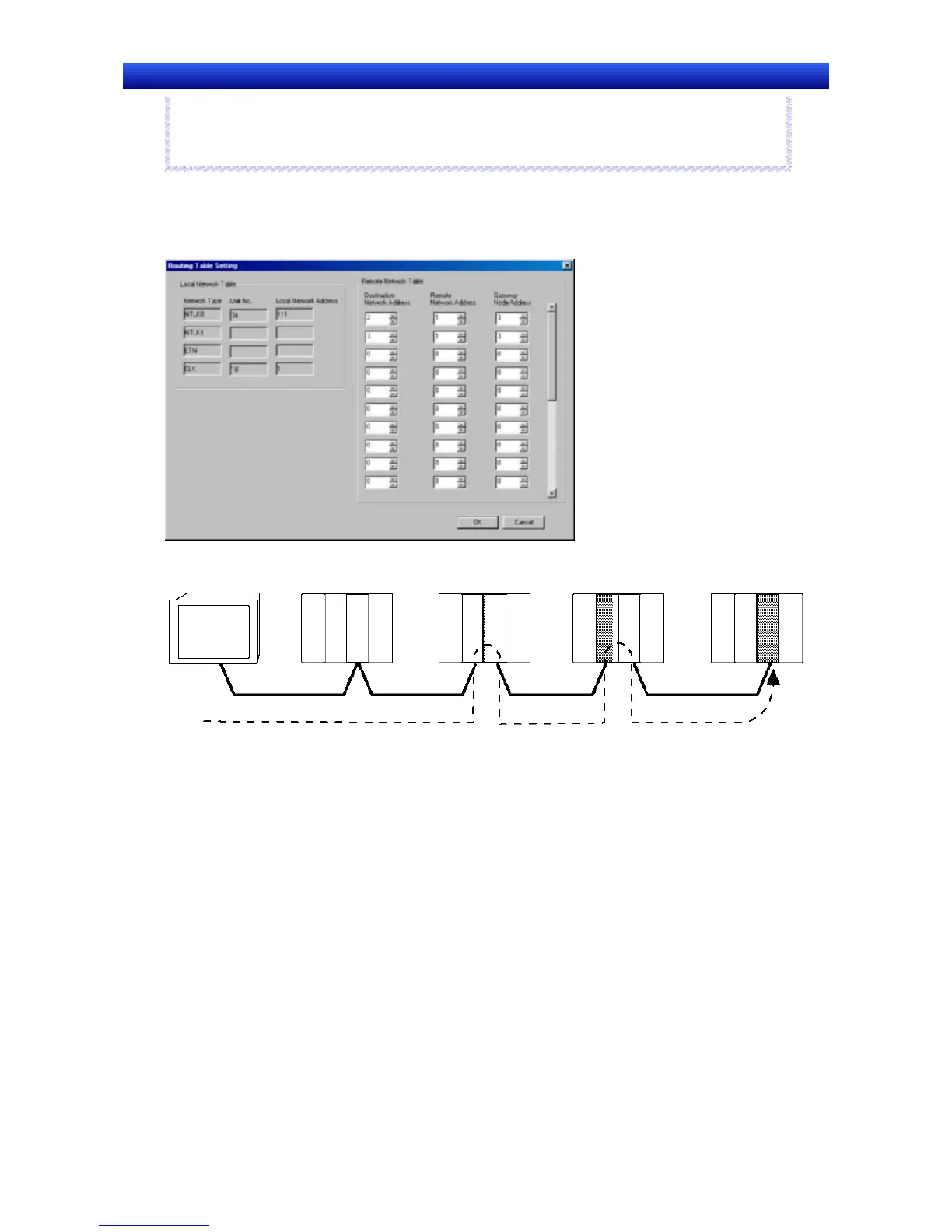

Click the Routing Table Button on the Comm. All Tab Page to display the Routing Table Setting Dialog
Box.
The routing tables consist of a local network table and remote network table. Routing tables are re-
quired to use messages on a Controller Link Network.
Commu-
nications
partner
Communications path
Local PT
7-7

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
