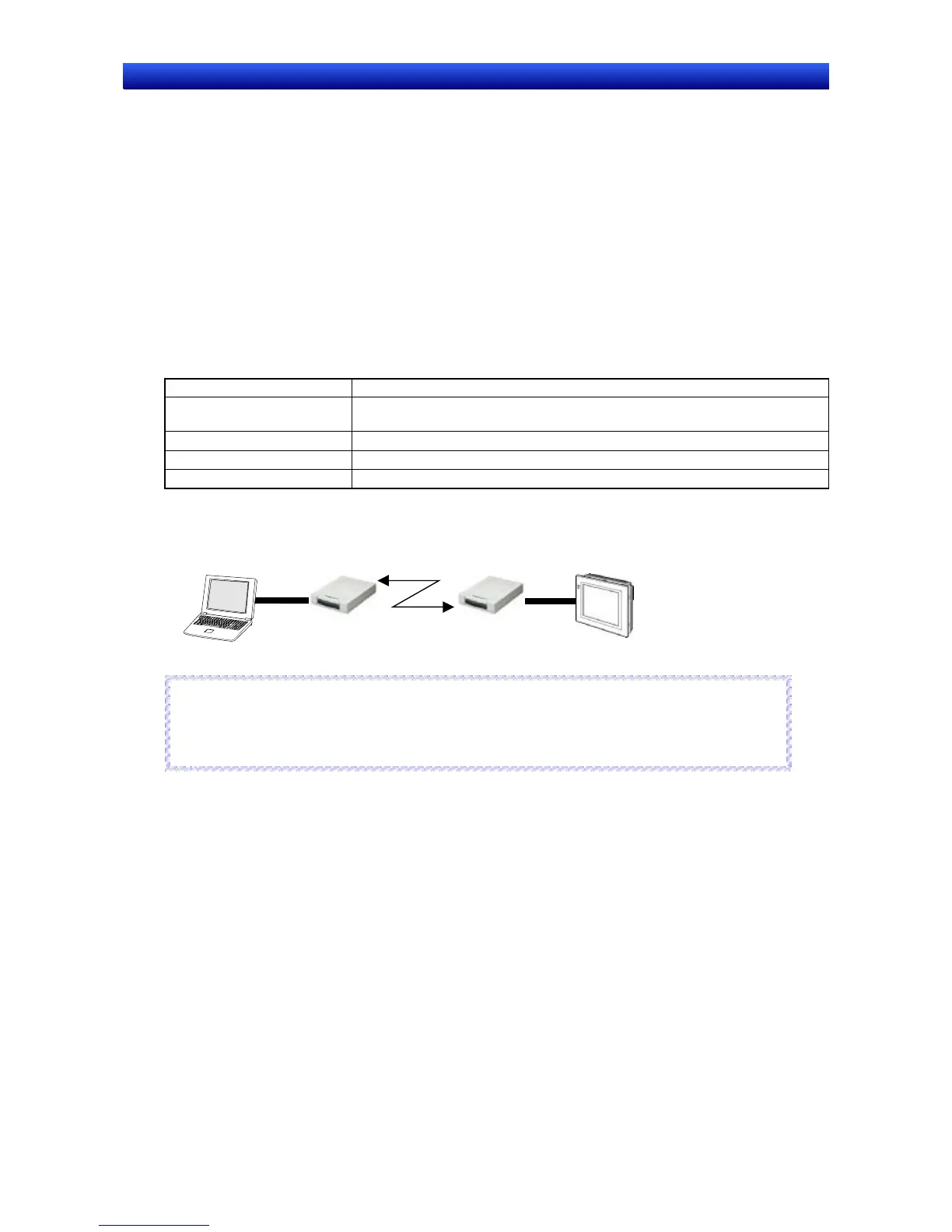

Section 10 Transferring Data 10-1 Transferring Data to the PT
NS-Designer Operation Manual
Preparations for Transferring Data via Modems
To transfer data, connect the PT and the computer running NS-Designer via cables and modems. Refer
to the operation manual for the modem for modem settings.
Settings before Transferring Data via Modems
Make the following settings when connecting the computer to a modem and transferring data over
telephone lines to a PT connected via a modem.
PT Settings
The baud rate must be set before transferring screen data to a PT connected via modems. Set the se-
rial port to be used to a modem connection on the System Menu – Comm. Tab Page, click the Details
Button and set the following items.
Item Setting
Baud rate Set the baud rate between the modem and PT to 9600, 19200, 38400, 57600,
or 115200.
Data bits The number of data bits (length) is always 8 bits.
Stop bits The number of stop bits (length) is always 1 bit.
Parity The parity bit setting is always None.
System Configuration Example
NS-Designer
Modem Modem
PT
Serial Phone line Serial
Reference
♦ When using a project created with system version 5.X or lower, select Settings - Conversion -
Project -to Ver. 6.0 from the NS-Designer and convert to system project version 6 before making
the settings.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
10-5

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
