Section 10 Transferring Data 10-1 Transferring Data to the PT
NS-Designer Operation Manual

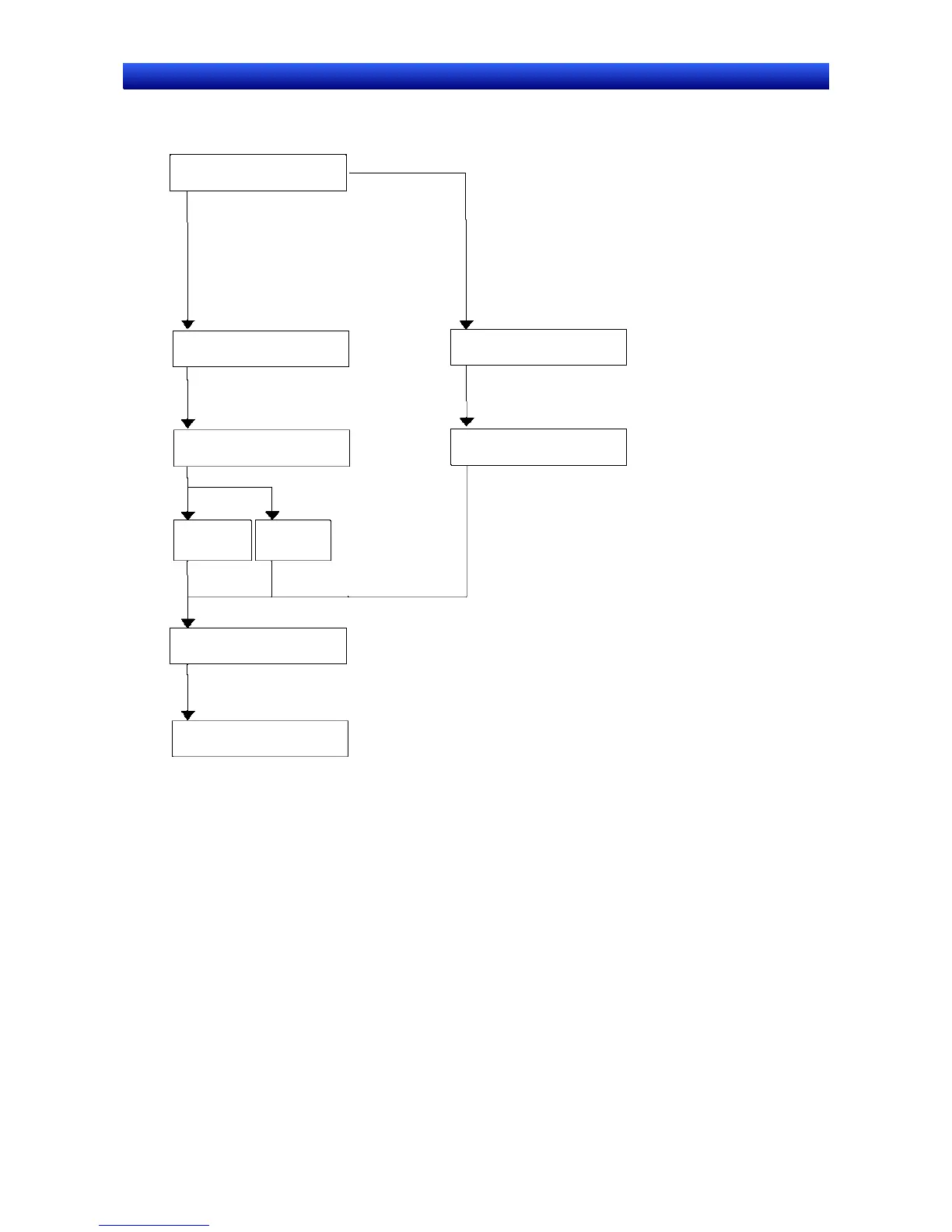

■ Data Transfer Flow
To transfer data to PT, follow the steps given below.
Select the system program.
System program: Refer to 10-1-5 Transferring
the System Program.
Restart PT.
Execute transfer.
Screen
data
Entire
project
Select the project.
Set communications.
Refer to 10-1-2 Communications Settings for
NS-Designer
Refer to 10-1-2 Communications Settings for
NS-Designer
Set communications.
Refer to the
following sections
• Project data: 10-1-3 Transferring Project Data
• Screen data: 10-1-4 Transferring Screen Data
OLE_LINK2
Start transfer program.
10-8

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
