Section 10 Transferring Data 10-1 Transferring Data to the PT
NS-Designer Operation Manual

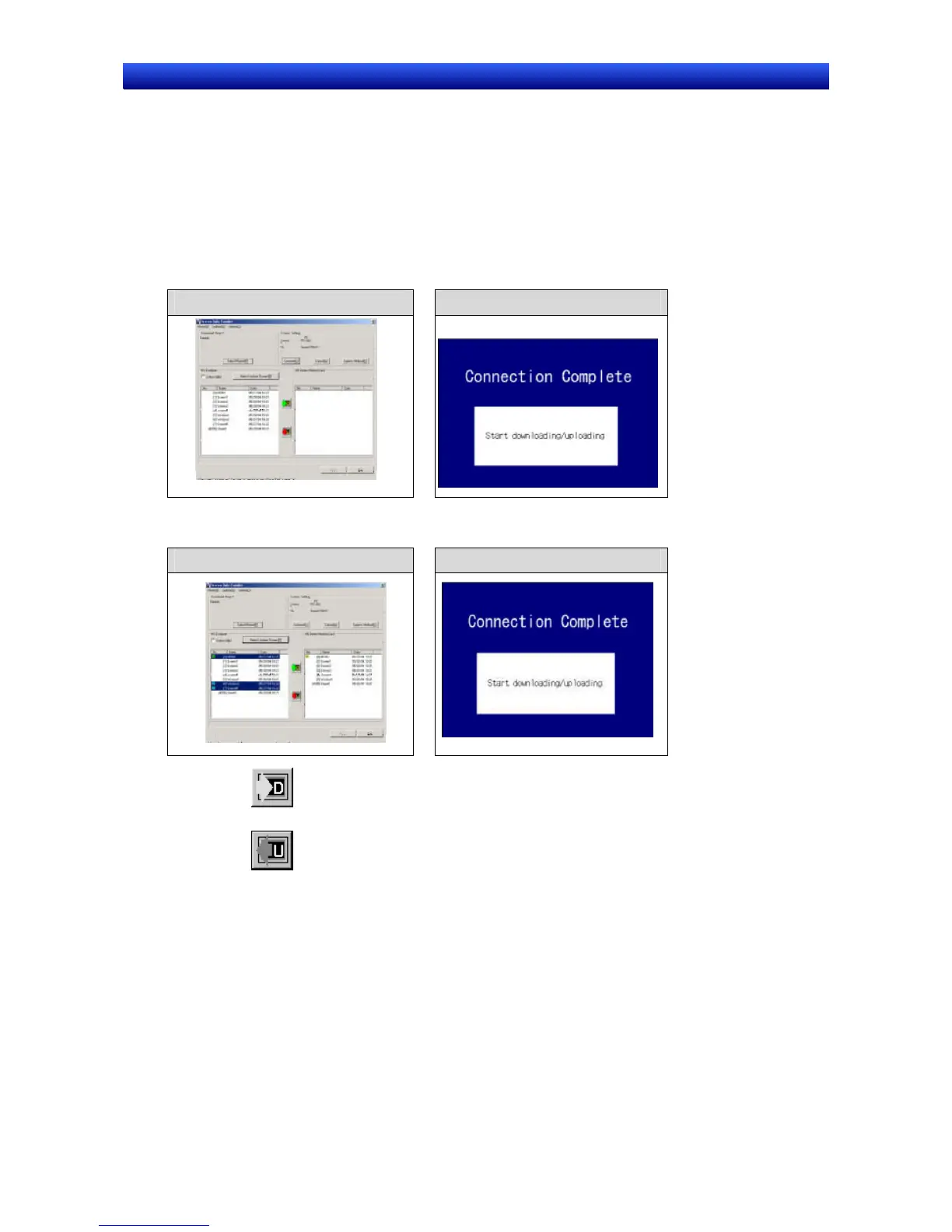

1. Select Select Project from the Mode Menu on the Screen Data Transfer Dialog Box.
2. Click the Select Project Button, and then select a project. (This step is necessary only to send a
specific project. The default selection is the project data that is currently being created. Usually it is
not necessary to select a project.)
3. Select the communications method. For details, refer to 10-1-2 Communications Settings for
NS-Designer.
4. Click the Connect Button. The computer and PT will be connected.
Computer PT
5. The screen data stored in selected project is displayed in both list boxes.
Select the items (whole project/screen/setting file) that you want to transfer to the PT.
Computer PT
6. Click the Button to transfer data from the computer to the PT or a Memory Card.
Click the Button to transfer data from the PT or Memory Card to the computer.
10-10

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
