Section 10 Transferring Data 10-1 Transferring Data to the PT
NS-Designer Operation Manual
When uploading, a dialog box will be displayed to specify where the project should be saved. For
details, refer to 10-1-3 Transferring Project Data.
7. A confirmation dialog box will be displayed. Click the Start Button to start the transfer.
8. If any of the following items differ between the source and destination, a warning message will be
displayed.
•
•
•
PT Model
System Version
Language
Messages will show information about the source and destination.
Click the Yes Button to continue with the transfer.
9. When transferring data to a Memory Card is finished, a message that the upload/download has
been completed will be displayed. Refer to 3-6 Using Memory Cards in the NS Series Setup Man-
ual for the procedure to transfer data from a Memory Card to the PT.

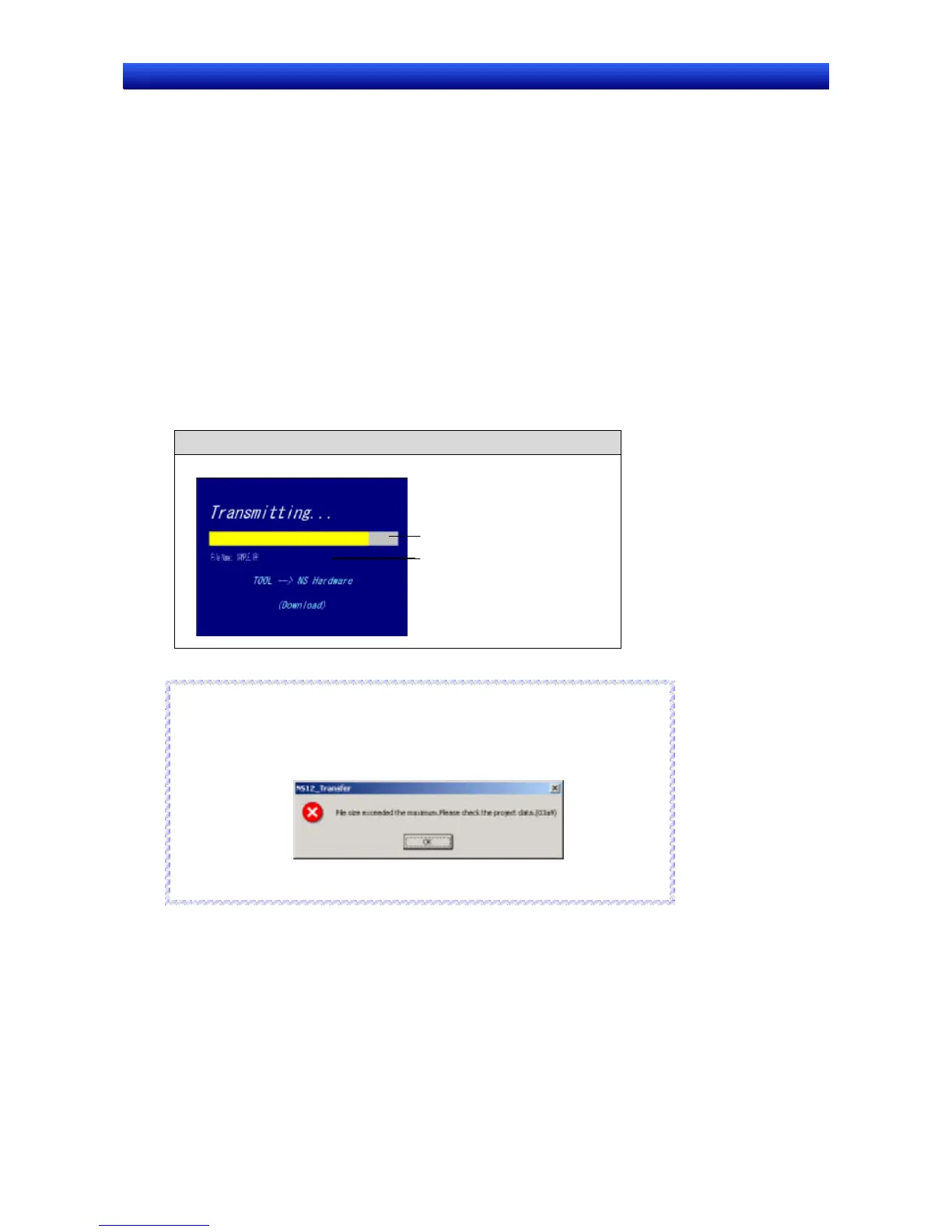

If data transfer is performed via a serial cable, modems, Ethernet, or Controller Link, the following
screen will be displayed on the PT while transferring the data.
Screen Display on PT
Progress displayed.
Transfer File Name
Reference
♦ The maximum file size for transferring is 1.44 Mbytes.
If you attempt to transfer data exceeded 1.44 Mbytes, the following message
will be displayed and data transfer will be aborted.
Check the size of files such as BMP files, and after changing or deleting data,
execute the transfer again.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
10-11

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
