Starting the NV-Designer and Creating New Projects Section 5-1

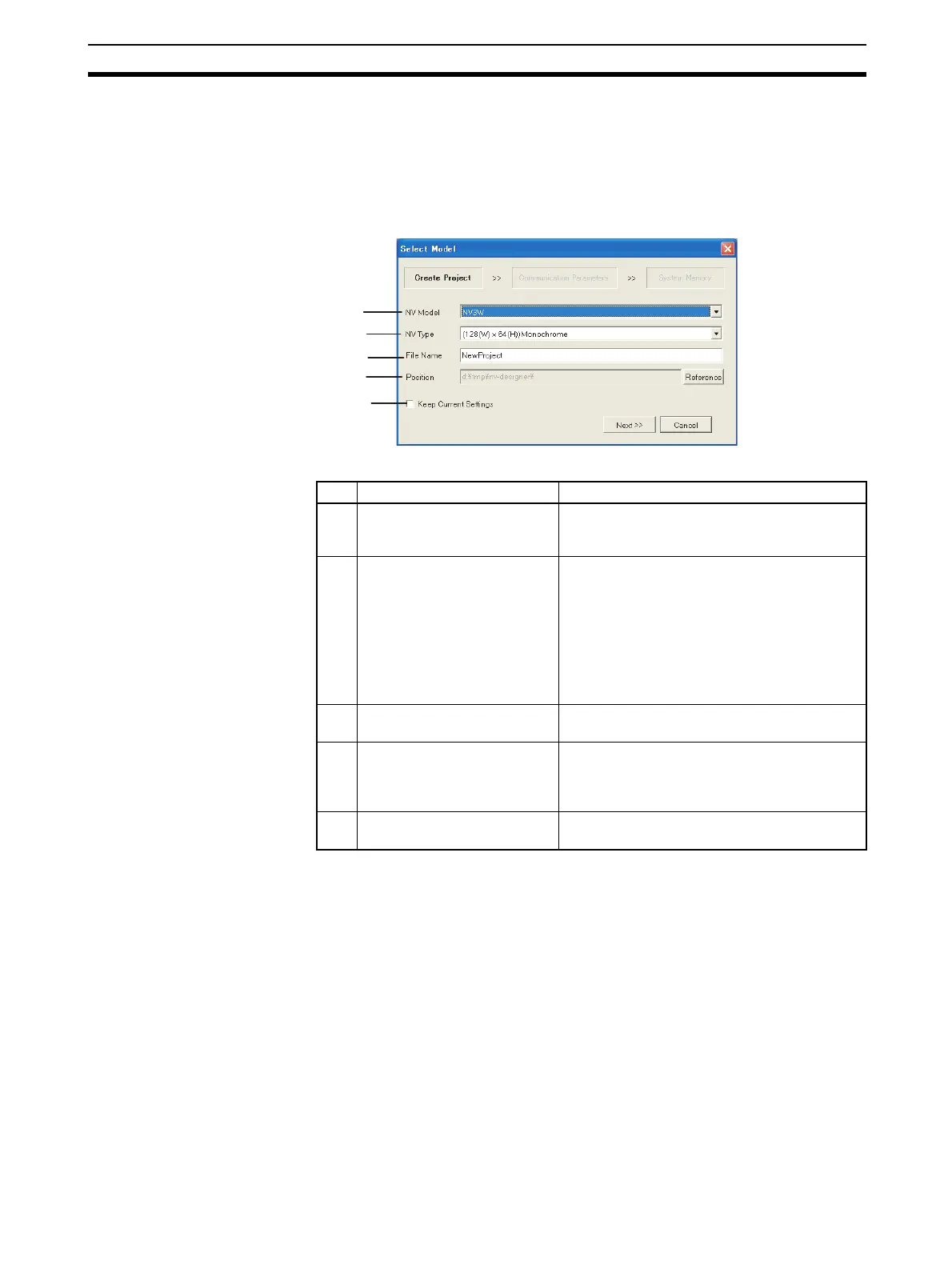

4. Select Create New Project from the Start Menu. The following Select Mod-
el Dialog Box will be displayed.
The following setting status will be displayed at the top of the Wizard Dialog
Box.
Create Project >> Communication Parameters >> System Memory
5. Set the status for creating the project and then click the Next Button
*1 To change the model setting, select Convert - NV Model Convert from the
Tool Menu of the NV-Designer.
Item Description
1 NV Model Select the model of the NV-series PT from the
drop-down list. NV3W (default), NV4W, or
NV3Q
2 NV Type *1 Select the model of NV-series PT from the
drop-down list.
NV3W: Monochrome (default) or vertical and
monochrome
NV4W: 2 shades of gray (default), 8 shades of
gray, vertical with 2 shades of gray, or
vertical with 8 shades of gray
NV3Q: Monochrome (default) or color
3 File Name Enter the name of the file in which to save the
project. The default file name is NewProject.
4 Position Use the Reference Button to specify the loca-
tion where the project is to be saved. The
default location is c:\documents and set-
tings\user\my documents\.
5 Keep Current Settings Select this check box to use the above settings
the next time you create a file.
1
2
3
4
5
