Starting the NV-Designer and Creating New Projects Section 5-1

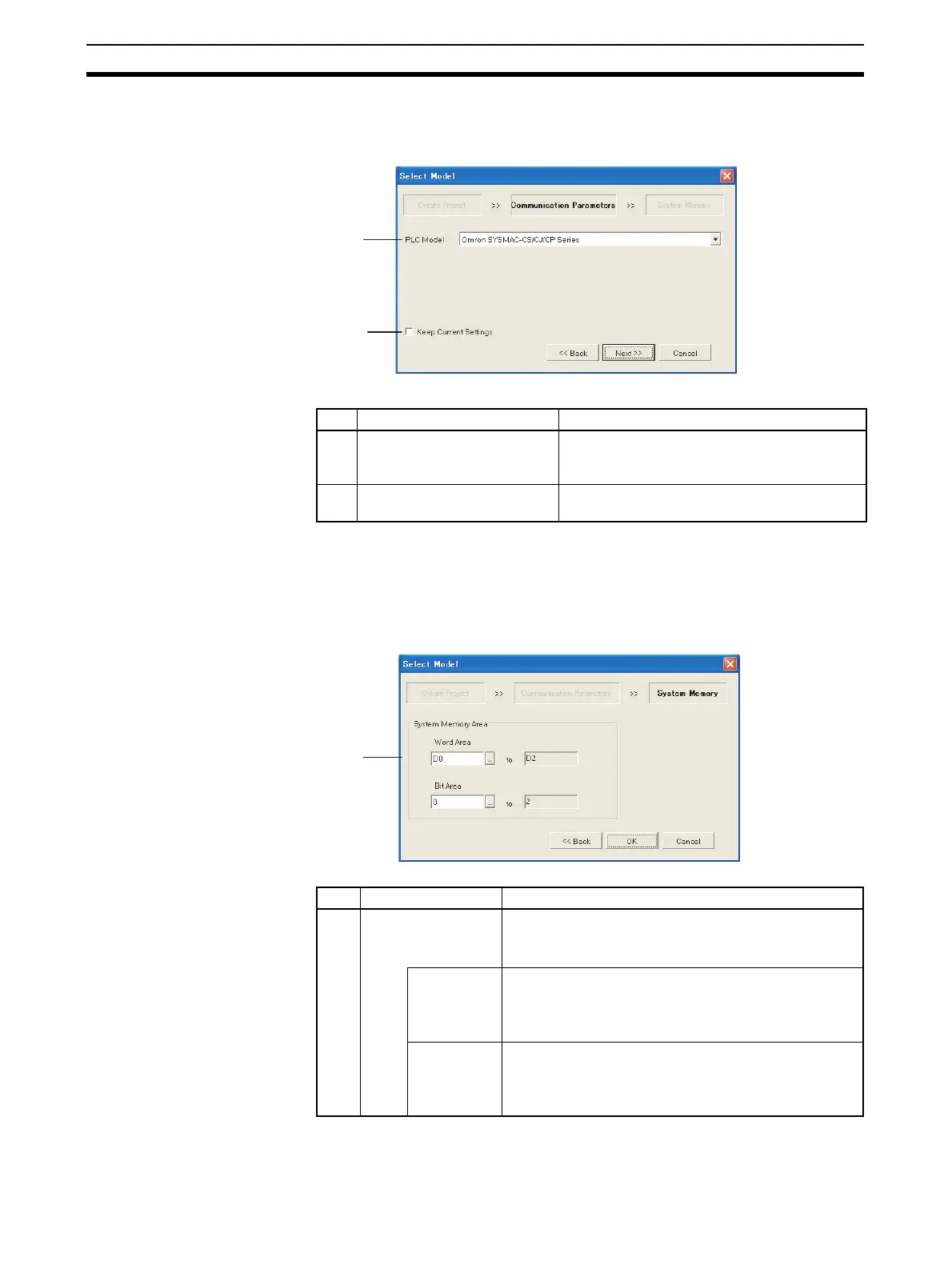

6. Set the status for the communications settings and then click the Next But-
ton. (Click the Cancel Button to display the Startup Window without a
project.)
*1 To change the model setting, select Convert – PLC Model Convert from
the Tool Menu of the NV-Designer.
7. Set the status for system memory and then click the Next Button (Click the
Cancel Button to display the Startup Window without a project.)
Note The default words for the Bit Area are CIO 0 to CIO 2. If CIO 0 to CIO 2 are
allocated to real I/O, be sure to change the settings (e.g., to words in the Work
Item Description
1 PLC Model*1 Select the PLC model to connect from the
drop-down list. The default is the OMRON
SYSMAC CS/CJ/CP* Series.
2 Save Current Settings Select this check box to use the above settings
the next time you create a file.
Item Description
1 System Memory
Area
Sets the words used as system memory for basic com-
munications with the PLC.
Refer to 6-2-3 System Memory for details.
Word Area Sets the memory area and first address of the area of
memory used for communications between the PT and
PLC in word units, such as for the screen number.
The default is D0 to D2.
Bit Area Sets the memory area and first address of the area of
memory used for communications between the PT and
PLC in bit units, such as for the screen saver.
The default is 0 to 2.
