Omron OMNUC G Series User Manual

2-65
2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
Decelerators for 3,000-r/min Flat Servomotors
Note1. The standard models have a straight shaft with a key.
Note2. Applicable for the servomotors with key, if the key is removed.

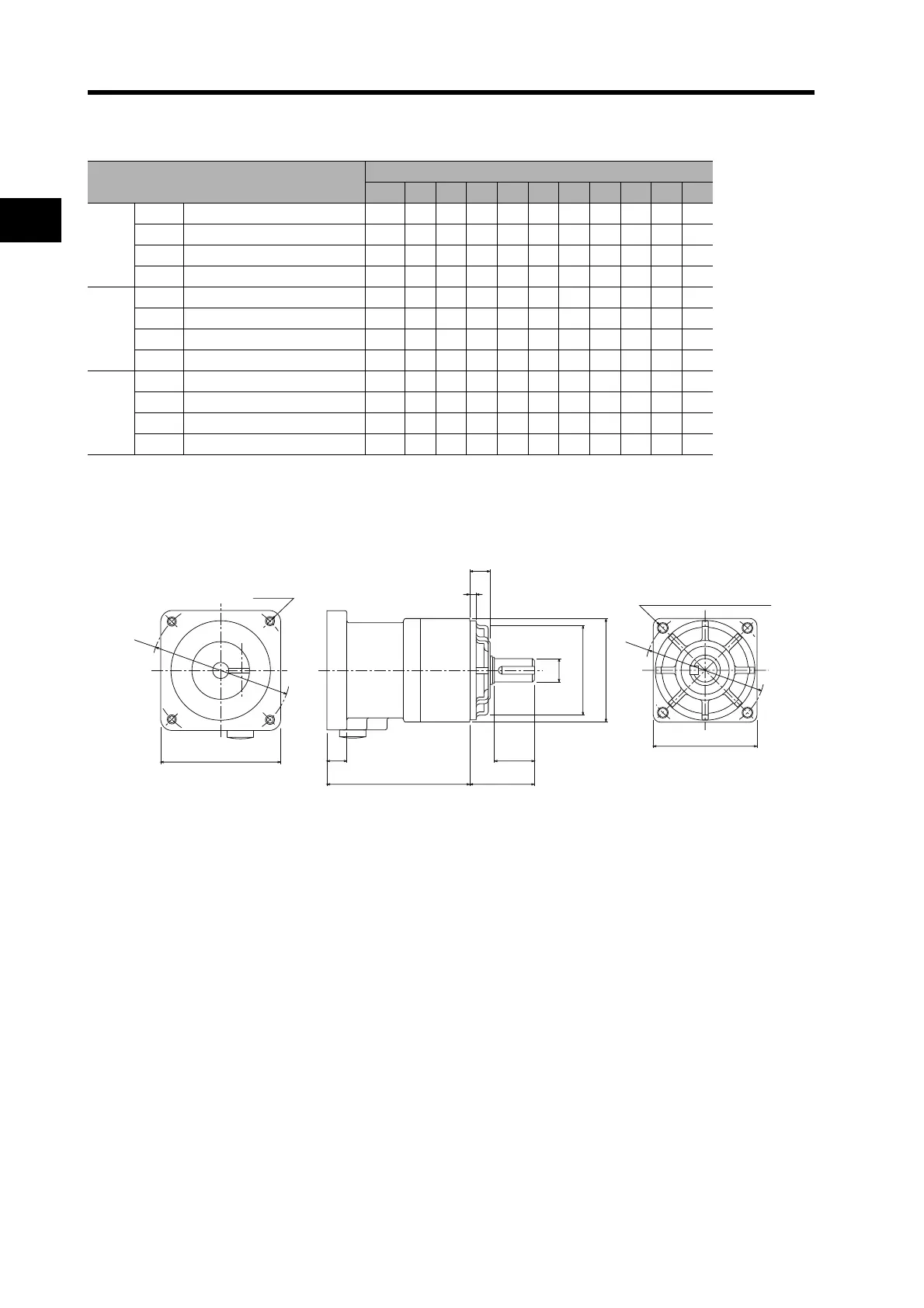

Outline Drawings
Model
Dimensions (mm)
LM LR C1 C2 D1 D2 D3 D4 E3 F G
100 W
1/5 R88G-VRSF05B100PCJ 67.53260527060504510 3 8
1/9 R88G-VRSF09B100PCJ 67.53260527060504510 3 8
1/15 R88G-VRSF15B100PCJ 78.0 32 60 52 70 60 50 45 10 3 8
1/25 R88G-VRSF25B100PCJ 78.0 32 60 52 70 60 50 45 10 3 8
200 W
1/5 R88G-VRSF05B200PCJ 72.5 32 80529060504510 3 12
1/9 R88G-VRSF09C200PCJ 89.5 50 8078 90 90 70 62 17 3 12
1/15 R88G-VRSF15C200PCJ 100.0 50 8078 90 90 70 62 17 3 12
1/25 R88G-VRSF25C200PCJ 100.0 50 8078 90 90 70 62 17 3 12
400 W
1/5 R88G-VRSF05C400PCJ 89.5 50 8078 90 90 70 62 17 3 12
1/9 R88G-VRSF09C400PCJ 89.5 50 8078 90 90 70 62 17 3 12
1/15 R88G-VRSF15C400PCJ 100.0 50 8078 90 90 70 62 17 3 12
1/25 R88G-VRSF25C400PCJ 100.0 50 8078 90 90 70 62 17 3 12
Four, Z1
E3
F
C1 × C1
LM
G T
LR
D3 dia., h: 7
D4 dia.
S dia., h: 6
Four, Z2 (effective depth: L)
C2 × C2
D2 dia.
D1 dia.
