Omron OMNUC G Series User Manual

3-59

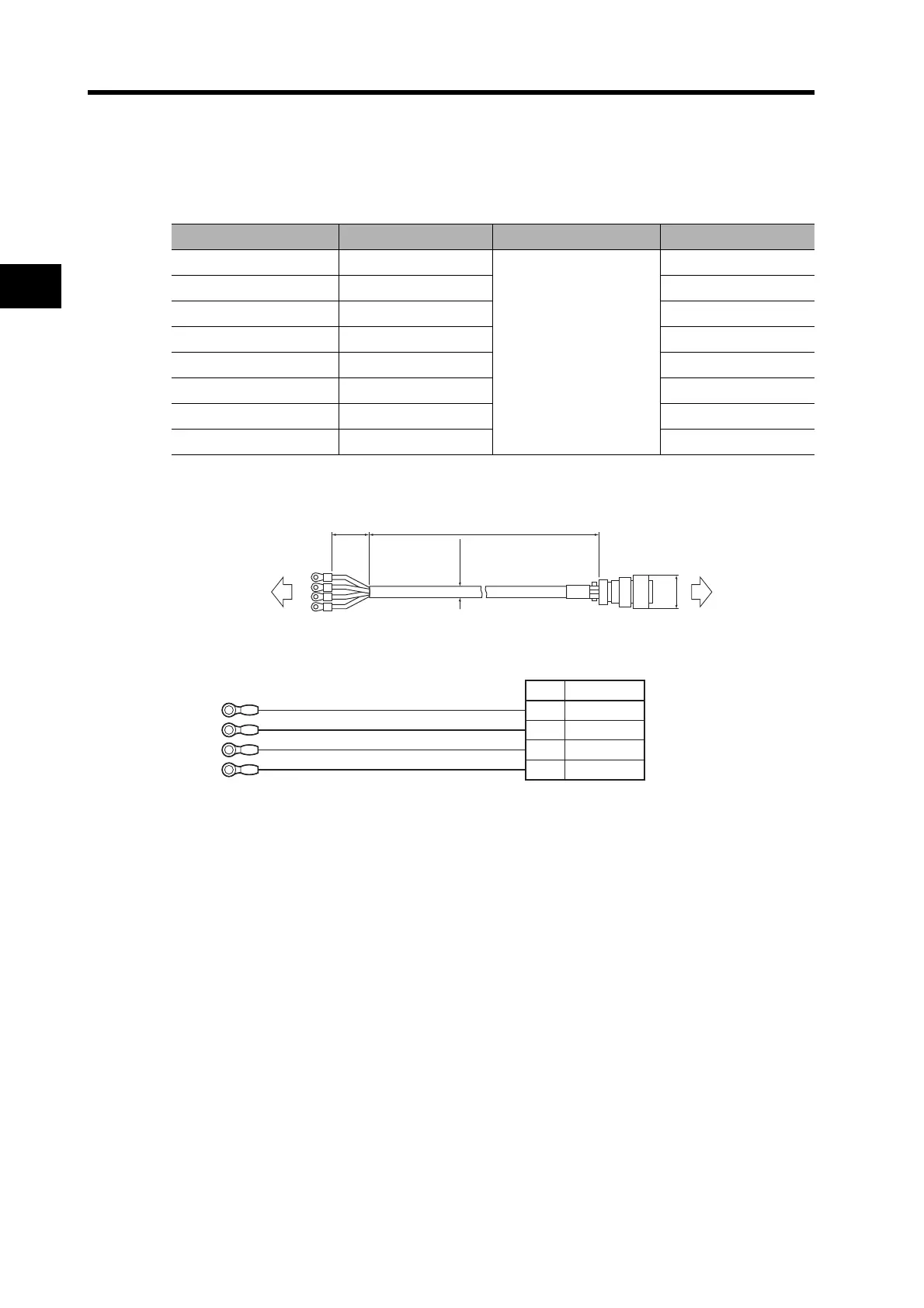

3-4 Cable and Connector Specifications
3
Specifications
R88A-CAGCSR
Cable Models
For 3,000-r/min Servomotors of 2 kW and 2,000-r/min Servomotors of 2 kW
Connection Configuration and Dimensions
Wiring
Model Length (L) Outer diameter of sheath Weight
R88A-CAGC003SR 3 m
12.7 dia.
Approx. 0.8 kg
R88A-CAGC005SR 5 m Approx. 1.3 kg
R88A-CAGC010SR 10 m Approx. 2.4 kg
R88A-CAGC015SR 15 m Approx. 3.5 kg
R88A-CAGC020SR 20 m Approx. 4.6 kg
R88A-CAGC030SR 30 m Approx. 6.9 kg
R88A-CAGC040SR 40 m Approx. 9.2 kg
R88A-CAGC050SR 50 m Approx. 11.4 kg
(70)
L
37.3
dia.
(12.7 dia.)
Servo Drive
Servomotor
R88M−G@
R88D−GN@
No.
A
B
C
D
Phase U
Phase V
Phase W
FG
Signal
Servo Drive
Red
White
Blue
Green/Yellow
M5 crimp terminals
Servomotor
Cable: AWG14×4C UL2501
Straight plug:
N/MS3106B20-4S
(Japan Aviation Electronics)
Cable clamp:
N/MS3057-12A
(Japan Aviation Electronics)
Servomotor Connector
