3-79
3-4 Cable and Connector Specifications
3
Specifications

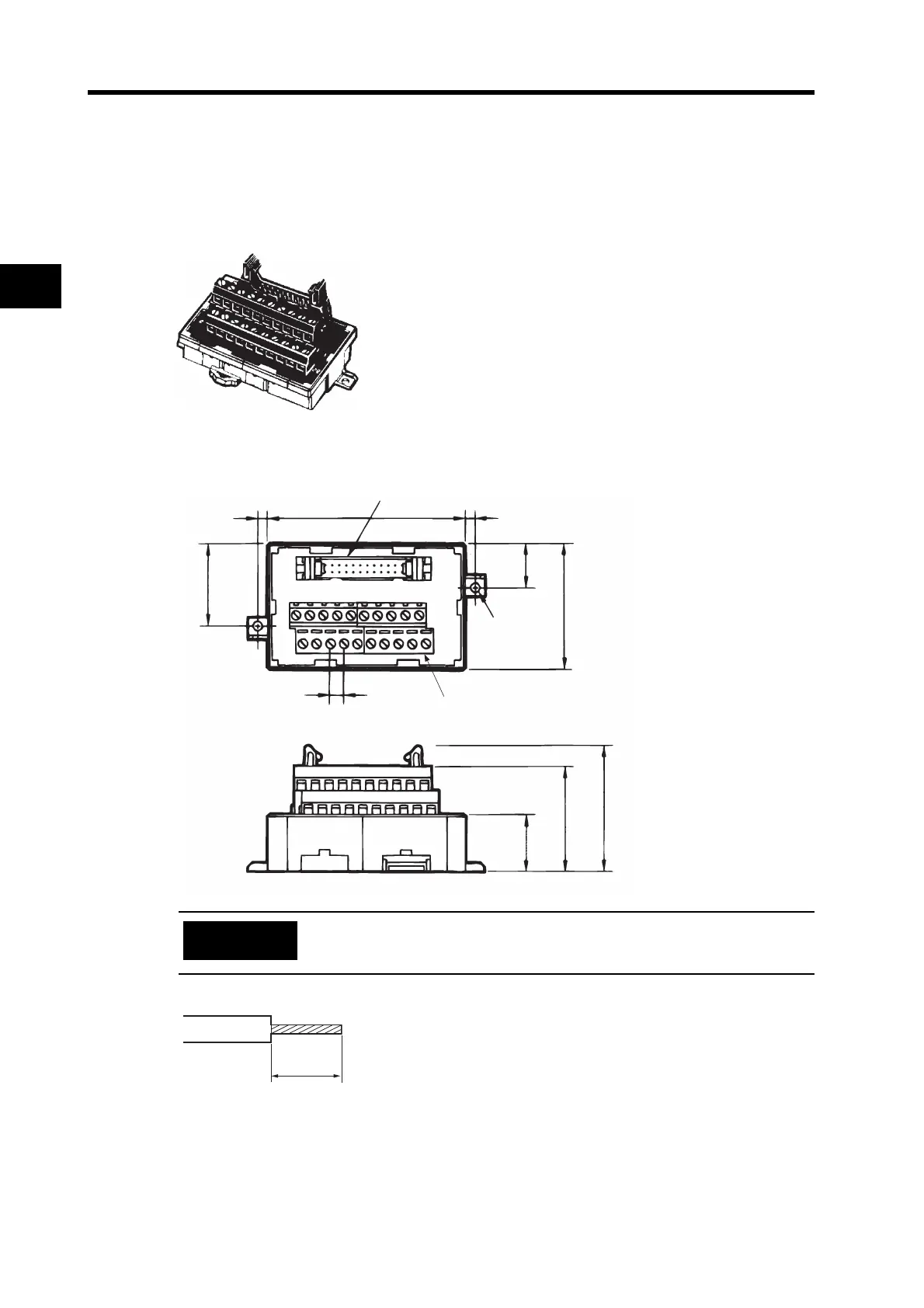

Connector-Terminal Block Conversion Unit
The Connector-Terminal Block Conversion Unit can be used along with a Connector Terminal Block
Cable (XW2Z-J-B33) to convert the Servo Drive's control I/O connector (CN1) to a terminal block.
XW2B-20G4 (M3 screw terminal block)
Dimensions
Use 0.30 to 1.25 mm
2
wire (AWG22 to AWG16).
The wire inlet is 1.8 mm (height)
2.5 mm (width).
Strip the insulation from the end of the wire for 6 mm as shown below.
Flat cable connector
(MIL connector)
Terminal
block
(45.3)
38.1
20.5
Two,
3.5 dia.
45
15.5
29.5
3.53.5 67.5
5.08
2
2
20
20
19
19
1
1
Precautions
for Correct Use
6 mm
