Omron OMNUC G Series User Manual

3-80
3-4 Cable and Connector Specifications
3
Specifications

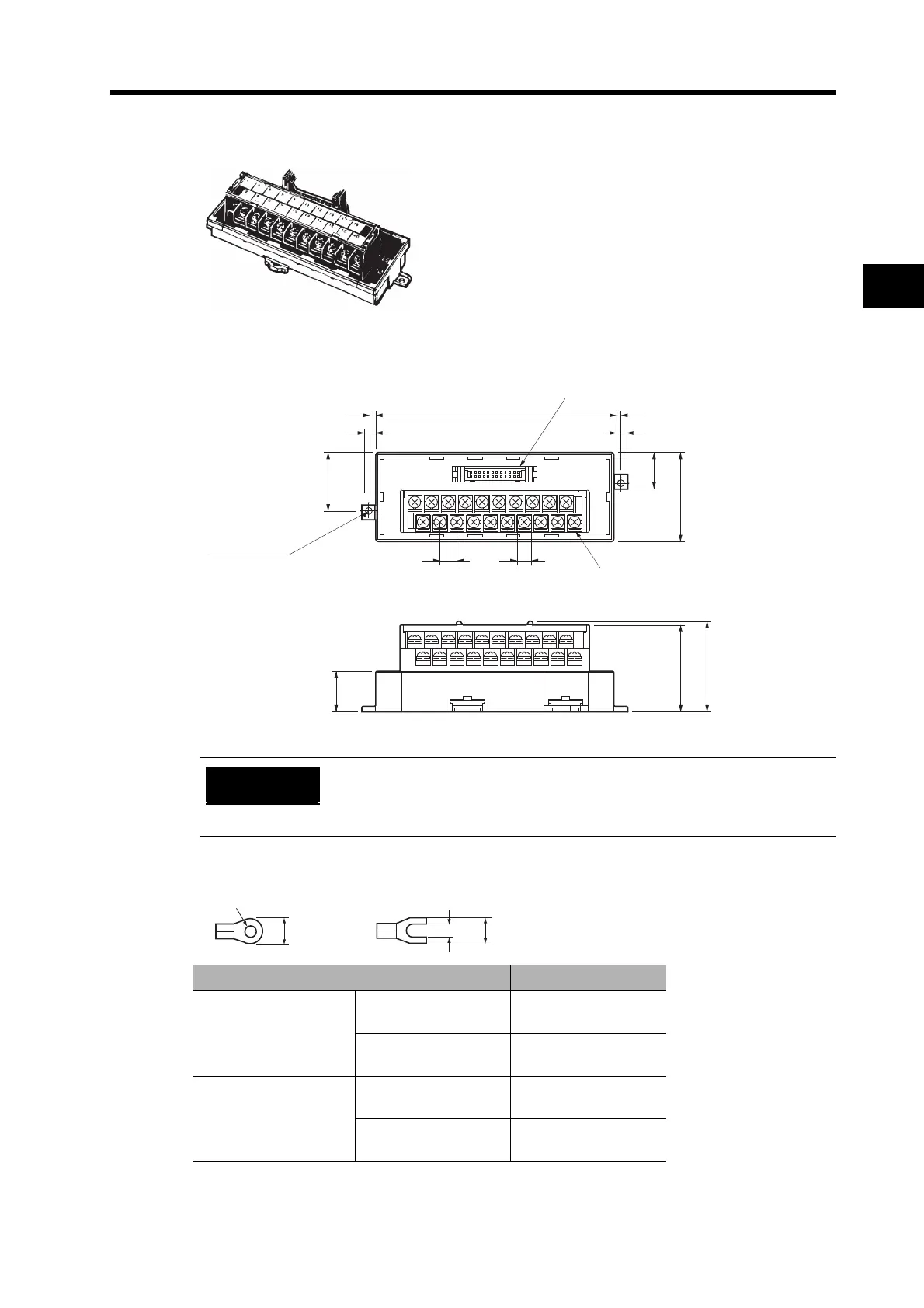

XW2B-20G5 (M3.5 screw terminal block)
 Dimensions
 Terminal block pitch: 8.5 mm
 When using crimp terminals, use crimp terminals with the following
dimensions.
 When connecting wires and crimp terminals to a terminal block, tighten
them with a tightening torque of 0.59 N·m.
Applicable Crimp Terminals Applicable Wires
Round Crimp Terminals
1.25-3
AWG22-16
(0.3 to 1.25 mm
2
)
2-3.5
AWG16-14
(1.25 to 2.0 mm
2
)
Fork Terminals
1.25Y-3
AWG22-16
(0.3 to 1.25 mm
2
)
2-3.5
AWG16-14
(1.25 to 2.0 mm
2
)
Flat cable connector
(MIL connector)
3.5
2
2
20
20
19
19
1
1
7.38.5
77
112.5 3.5
29.5
15.5
(45.3)
43.5
20.5
45
Ter minal
block
Two, 3.5 dia.
Precautions
for Correct Use
Round Crimp Terminals
Fork Terminals
6.8 mm max.
3.7 mm
3.2-mm dia.
6.8 mm max.
