3-81
3-4 Cable and Connector Specifications
3
Specifications

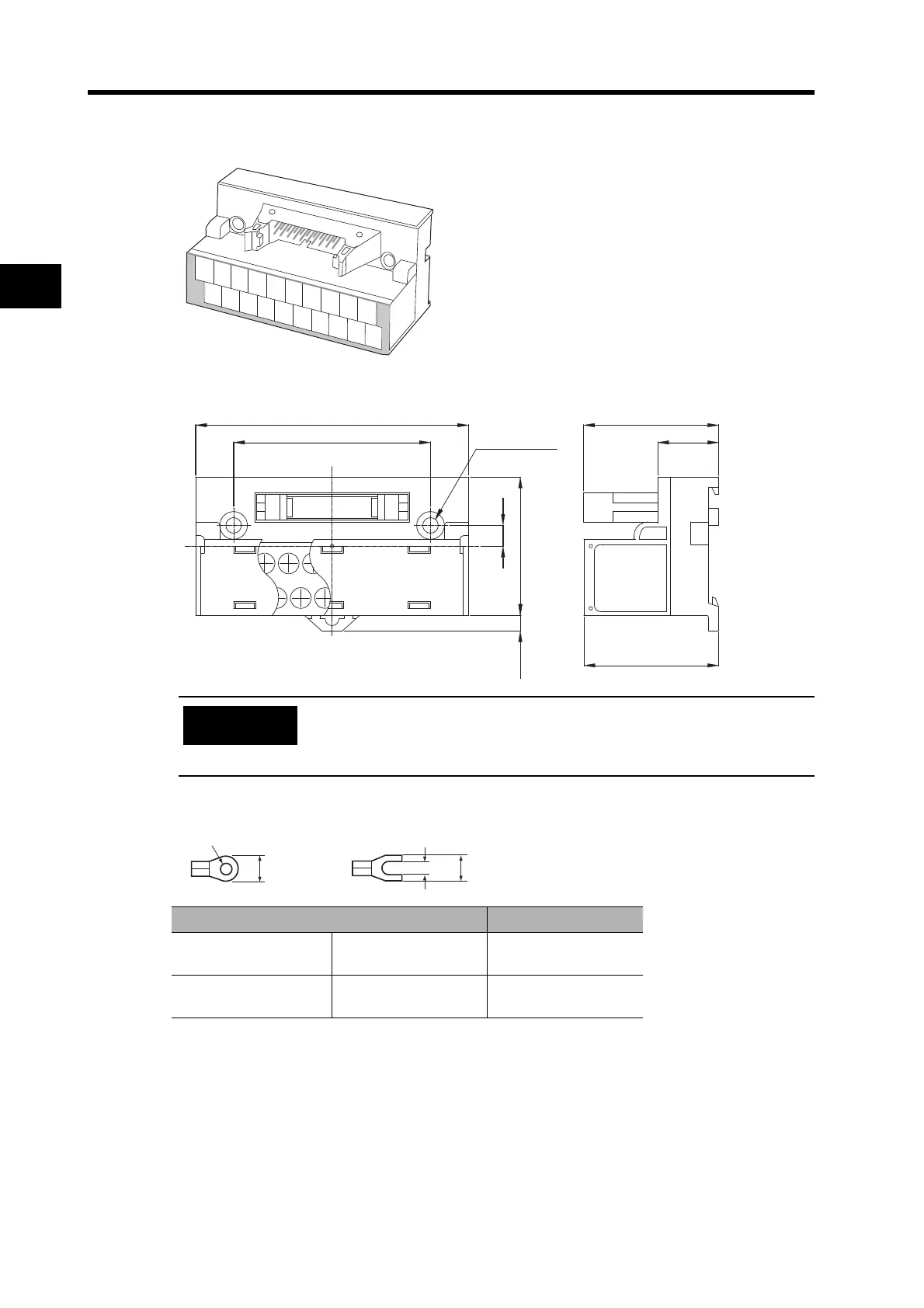

XW2D-20G6 (M3 screw terminal block)
Dimensions
The diagram on the next page shows a typical connection between a host device and the Servo
Drive using a MECHATROLINK-II communications cable.
When using crimp terminals, use crimp terminals with the following
dimensions.
When connecting wires and crimp terminals to a terminal block, tighten
them with a tightening torque of 0.7 N·m.
Applicable Crimp Terminals Applicable Wires
Round Crimp Terminals 1.25-3
AWG22-16
(0.3 to 1.25 mm
2
)
Fork Terminals 1.25Y-3
AWG22-16
(0.3 to 1.25 mm
2
)
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
B1 B2 B3 B4 B5 B 6 B7 B8 B9
B10
79
Two, 4.5 dia.
57
17.6
39
(39.1)
6
40
(4.5)
Precautions
for Correct Use
Round Crimp Terminals
Fork Terminals
5.8 mm max.
3.2 mm
3.2-mm dia.
5.8 mm max.
To Next Page
