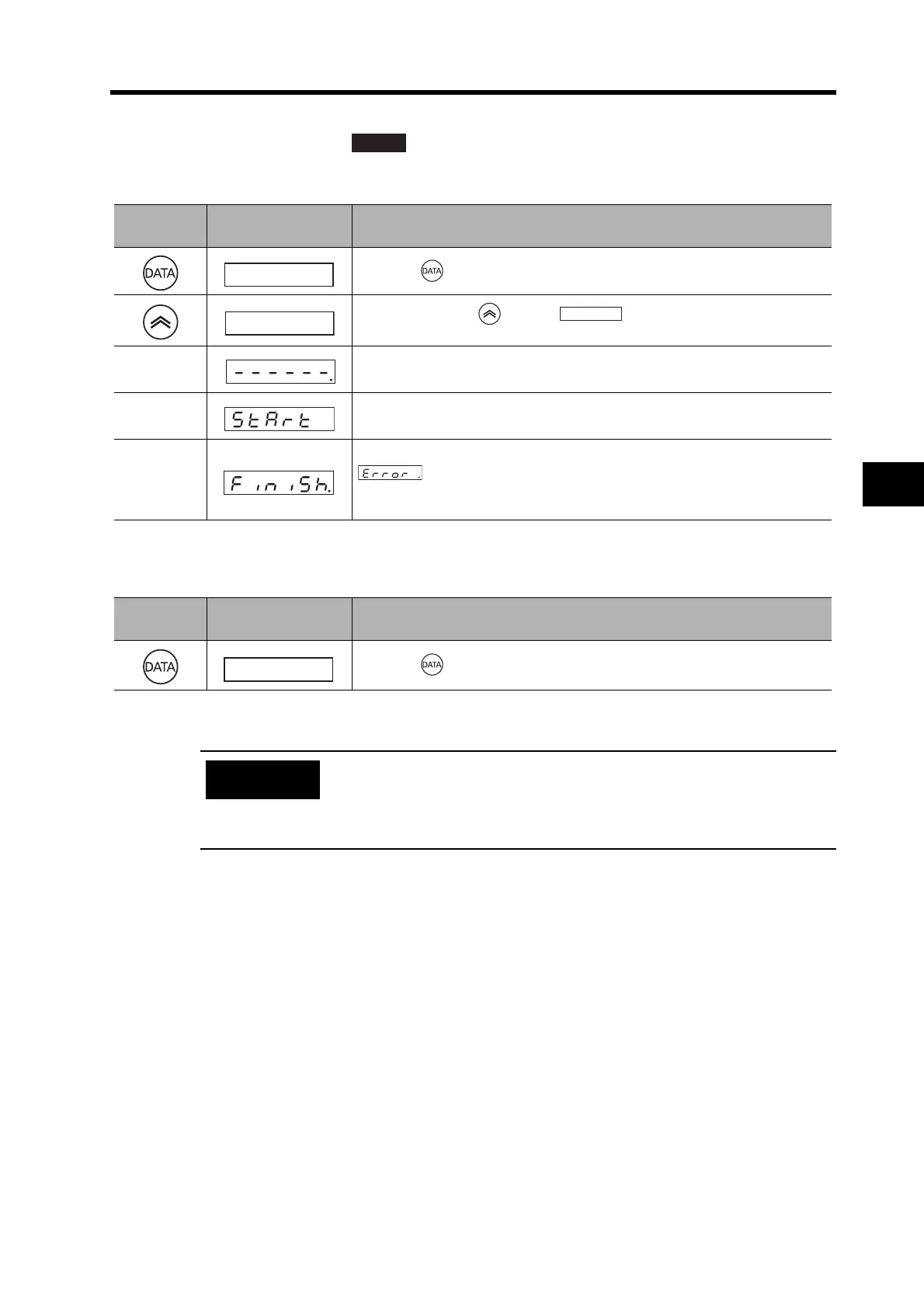

6-4 Setting the Mode
Operation
6
 Absolute Encoder Reset
1. Executing Absolute Encoder Reset
2. Returning to Auxiliary Function Mode
Key
operation
Display example Explanation
Press the key to switch to Absolute Encoder Reset Mode.
Press and hold the key until is displayed.
The bar indicator will increase when the key is pressed for 5 s or longer.
The bar indicator will increase.
Absolute encoder reset will start.
This display indicates a normal completion.
will be displayed if the absolute encoder reset could not be
performed. Check whether an unsupported encoder is connected, and then
perform the procedure again.
Key
operation
Display example Explanation
Press the key to return to Auxiliary Function Mode.
 The absolute encoder can be reset only for systems that use an absolute
encoder.
 Do not disconnect the Parameter Unit from the Servo Drive until resetting
the absolute encoder has completed. If the Parameter Unit is
disconnected, reconnect it and make the settings from the beginning.
