6-4 Setting the Mode
Operation
6
 Jog Operation

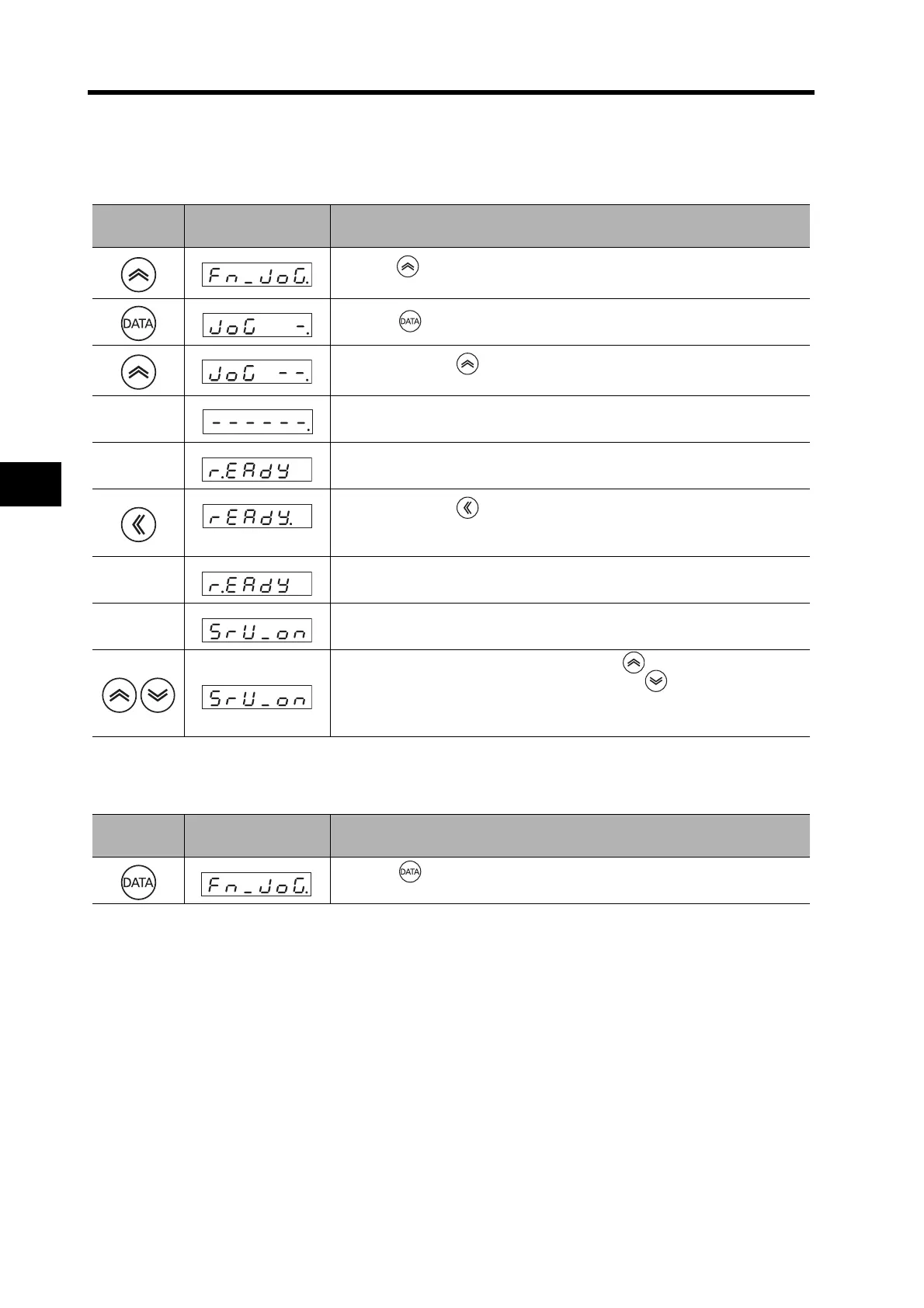

1. Executing Jog Operation
2. Returning to Auxiliary Function Mode
Key
operation
Display example Explanation
Press the key to display Jog Operation Mode from the alarm reset display
in Auxiliary Function Mode.
Press the key to switch to Jog Operation Mode.
Press and hold the key until “Ready” is displayed.
The bar indicator will increase when the key is pressed for 5 s or longer.
The bar indicator will increase.
This completes preparations for jog operation.
Press and hold the key until “Sev_on” is displayed.
The decimal point will move to the left when the key is pressed for 3 s or
longer.
The Servo will turn ON.
Forward operation will be performed while the key is pressed,
and reverse operation will be performed while the key is pressed.
The Servomotor will stop when the key is released. The speed set for the Jog
Speed (Pn03D) will be used for jogging.
Key
operation
Display example Explanation
Press the key to return to Auxiliary Function Mode.
The Servo lock will be released.
