7-16
7-4 Manual Tuning
Adjustment Functions
7
Speed Control Mode Adjustment
With the OMNUC G Series, adjustments for speed control are almost the same as adjustments for

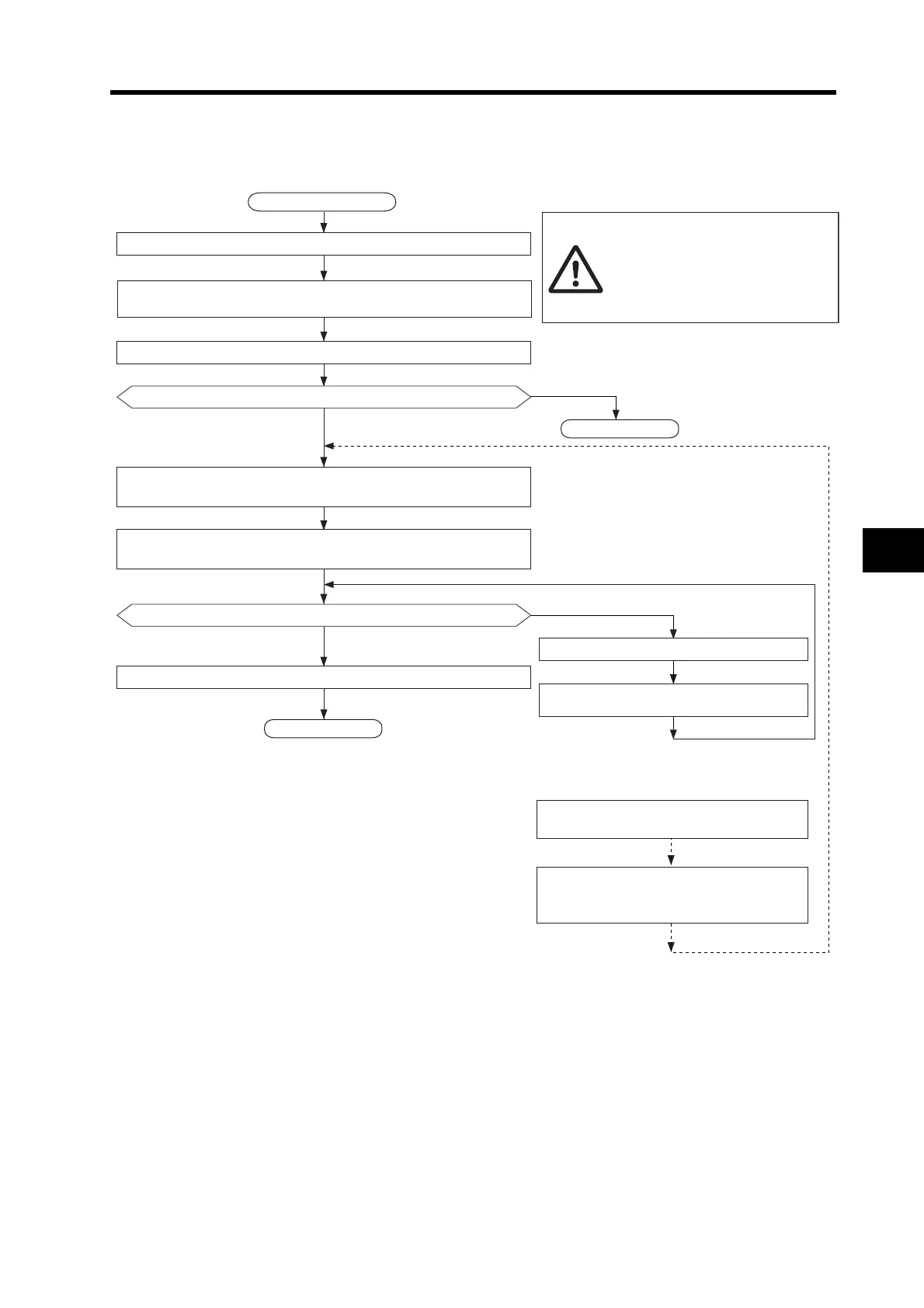

the position control mode. Use the following procedure to adjust parameters.
Start of adjustment
Disable realtime autotuning (Pn021 = 0).
Operate with a normal operating pattern and load.
Speed responsiveness and other operational performance satisfactory?
Ye s
No
Increase the Speed Loop Gain (Pn011),
but not so much that it causes hunting when the servo is locked.
Reduce the Speed Loop Integration Time Constant (Pn012),
but not so much that it causes hunting when the ser
vo is locked.
End of adjustment
Ye s
No
End of adjustment
Does hunting (vibration) occur when the Servomotor is rotated?
Reduce the Speed Loop Gain (Pn011).
Write the data to EEPROM in the parameter write mode.
Never make extreme adjustment or
changes to settings. Doing so will result
in unstable operation and may lead to
injuries.
Adjust the gain in small increments while
checking Servomotor operation.
Increase the Speed Loop Integration
Time Constant (Pn012).
If vibration does not stop no matter ho
w many times
you perform adjustments, or if positioning is slow:
Increase the Torque Command Filter Time
Constant (Pn014).
Set the Notch Filter 1 Frequency (Pn01D) and
the Notch Filter 2 Frequency (Pn028)
to the frequency of a vibrating application.
Set each parameter to the values in
Parameter Settings for Different Applications.
To Next Page
