Omron OMNUC G Series User Manual

2-56

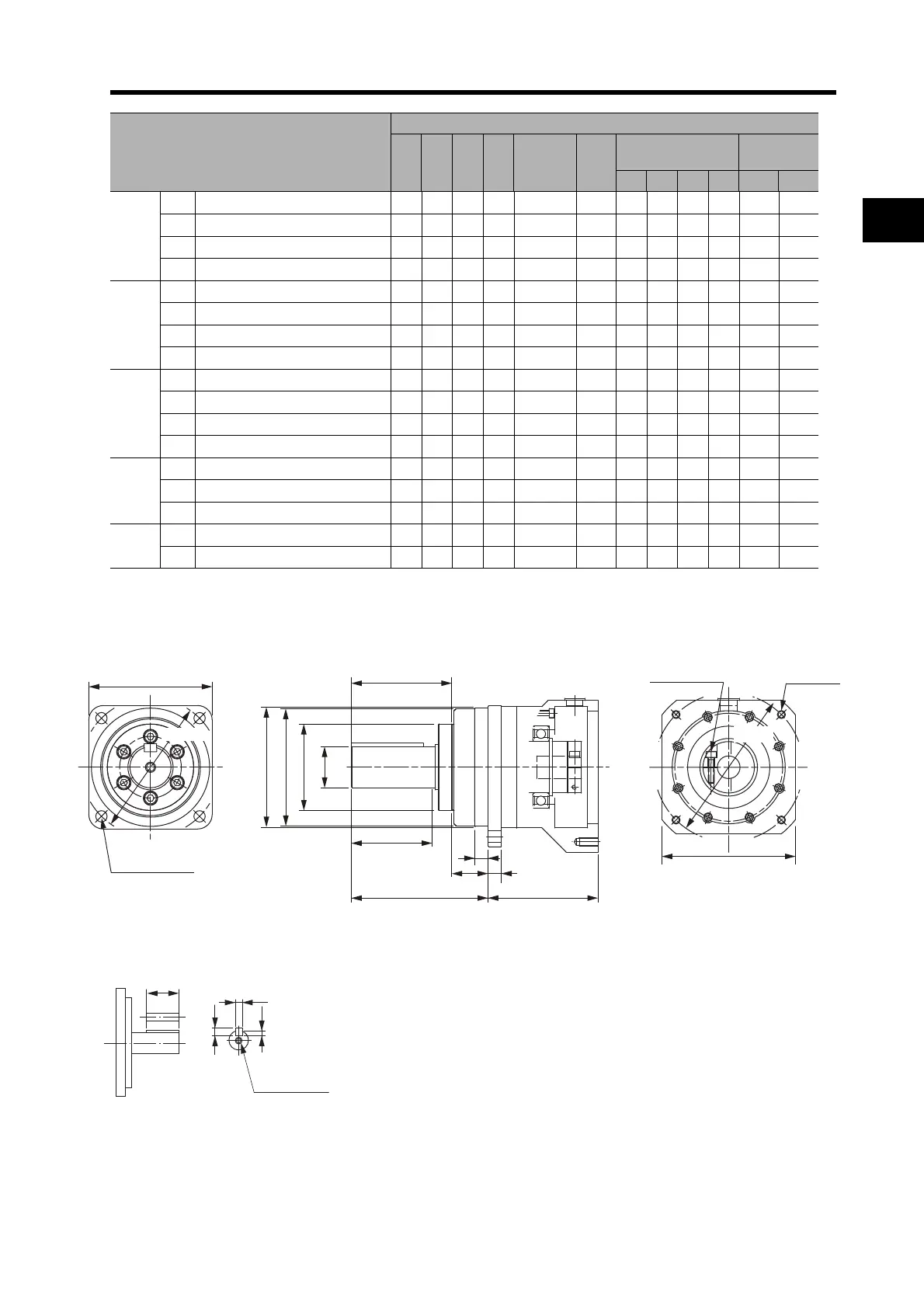

2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
*1. This is the set bolt.
Outline Drawings
*2. With the R88G-HPG50/-HPG60, the height tolerance is 8 mm (D3 dia., h: 8).
Model
Dimensions (mm)
G S T Z1 Z2 AT
*1
Key dimensions
Tap
dimensions
QK b h t1 M L
900 W
1/5 R88G-HPG32A05900TB 13 40 8211 M825 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG32A11900TB 13 40 8211 M825 M6 70 12 8 5.0 M10 20
1/21 R88G-HPG50A21900TB 16 50 8214 M825 M6 70 14 9 5.5 M10 20
1/33 R88G-HPG50A33900TB 16 50 8214 M825 M6 70 14 9 5.5 M10 20
2 kW
1/5 R88G-HPG32A052K0TB 13 40 8211M1225 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG50A112K0TB 16 50 8214M1225 M6 70 14 9 5.5 M10 20
1/21 R88G-HPG50A212K0TB 16 50 8214M1225 M6 70 14 9 5.5 M10 20
1/25 R88G-HPG65A255K0SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
3 kW
1/5 R88G-HPG50A055K0SB 16 50 8214M1225 M6 70 14 9 5.5 M10 20
1/11 R88G-HPG50A115K0SB 16
50 8214M1225 M6 70 14 9 5.5 M10 20
1/20 R88G-HPG65A205K0SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
1/25 R88G-HPG65A255K0SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
4.5 kW
1/5 R88G-HPG50A054K5TB 16 50 8214M1225 M6 70 14 9 5.5 M10 20
1/12 R88G-HPG65A127K5SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
1/20 R88G-HPG65A204K5TB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
6 kW
1/5 R88G-HPG65A057K5SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
1/12 R88G-HPG65A127K5SB 25 8013018 M1225 M8 110 22 14 9.0 M16 35
C1 × C1
Four, Z1 dia.
S dia.,h: 7
D5 dia. D4 dia.
D dia., h: 7
*2
Four, Z2
Set bolt (AT)
C2 × C2
E
T
F1
F2
LR
G
LM
D2 dia. D1 dia.
QK
Key and Tap Dimensions
b
h
t1
M (depth: L)
