Install the Service Processor Card
Servicing the Service Processor Card 113
2.

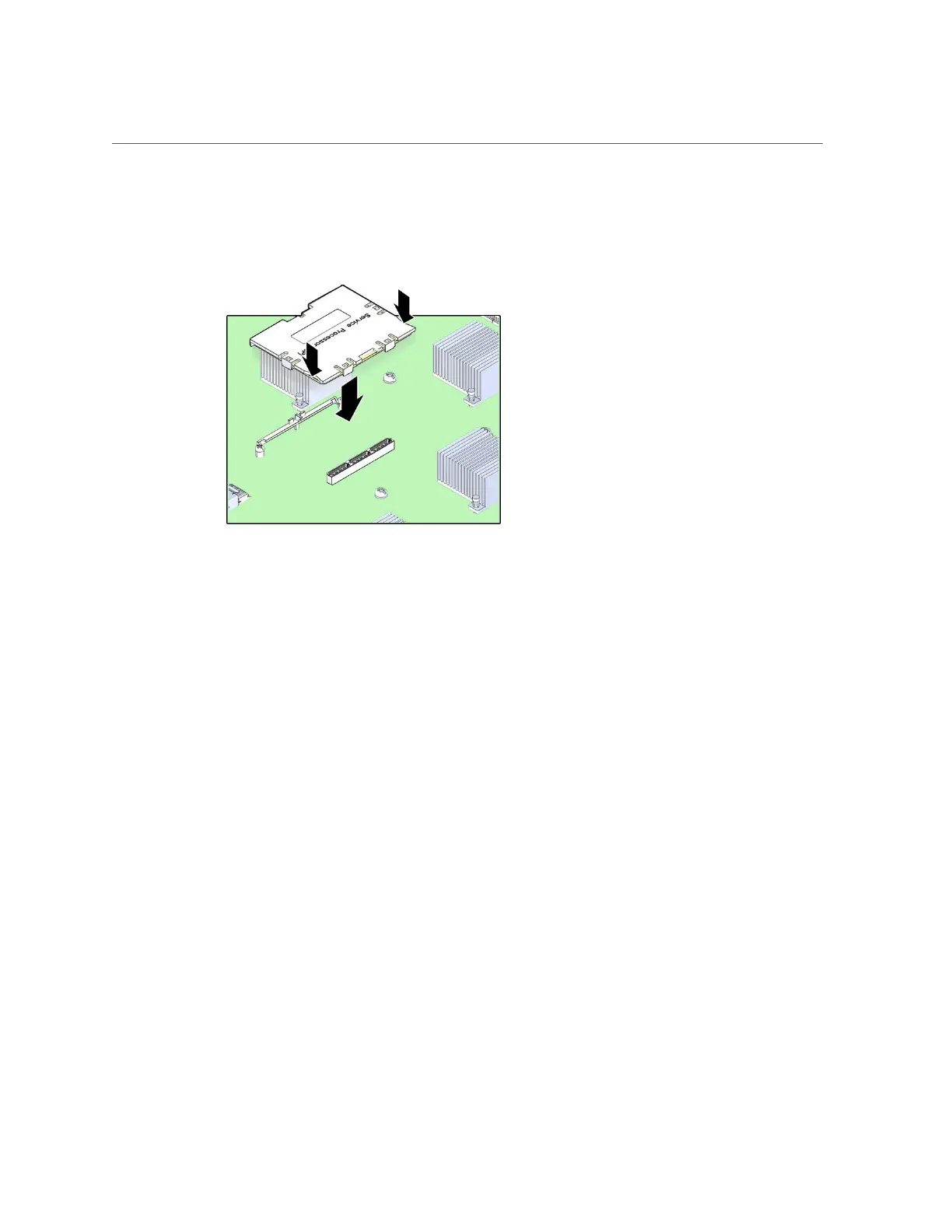

Lower the side of the service processor card with the Align Tab sticker down on
the service processor tab on the motherboard.
3.
Lower the other side of the service processor card down, and press down on the
card to seat it into the connectors on the motherboard.
4.
Install the main module back into the server.
See “Install the Main Module” on page 95.
5.
Connect a terminal or a terminal emulator (PC or workstation) to the SER MGT
port.
6.
Return the server to operation.
See “Returning the Server to Operation”.
If the replacement service processor card detects that the SP firmware is not compatible with
the existing host firmware, further action is suspended, and the following message is delivered
over the SER MGT port.
Unrecognized Chassis: This module is installed in an unknown or
unsupported chassis. You must upgrade the firmware to a newer
version that supports this chassis.
If you see this message, go on to Step 7. If you do not see this message, go to Step 8.
7.
Download the system firmware.
a.
Configure the network port on the service processor card to enable the
firmware image to be downloaded.
For instructions, refer to the Oracle ILOM documentation.
