Remove the Front I/O Assembly

Servicing the Front I/O Assembly 129

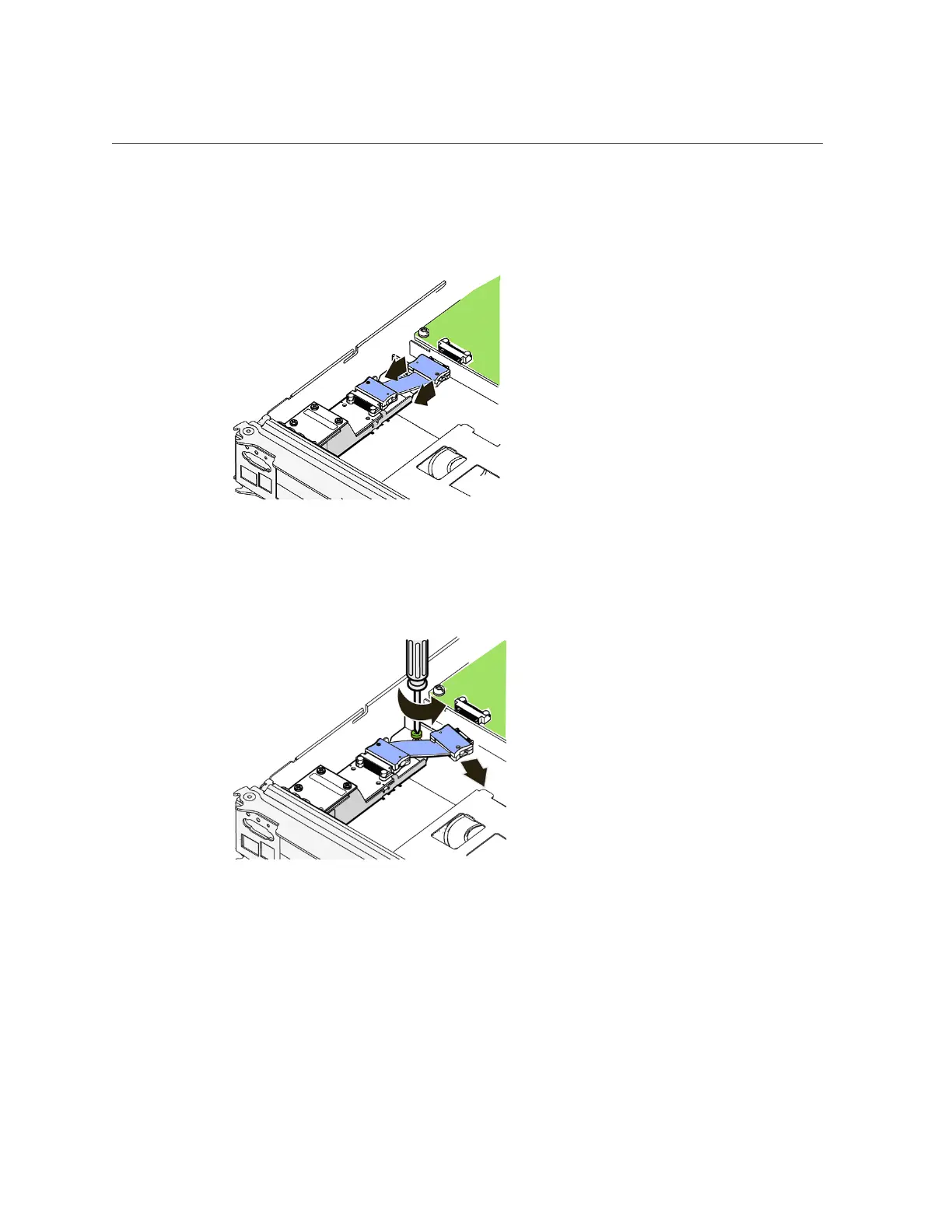

Disconnect the cable.

Loosen the retaining screw that secures the front I/O assembly to the

motherboard.

Gently pull the front I/O assembly toward the rear of the main module until the

ports at the front of the assembly clear the front of the main module, and then

remove the front I/O assembly from the main module.

Related Information

■

“Install the Front I/O Assembly” on page 130

■

“Verify the Front I/O Assembly” on page 131
