Remove a Carrier Extension
Servicing PCIe Cards 163
2.

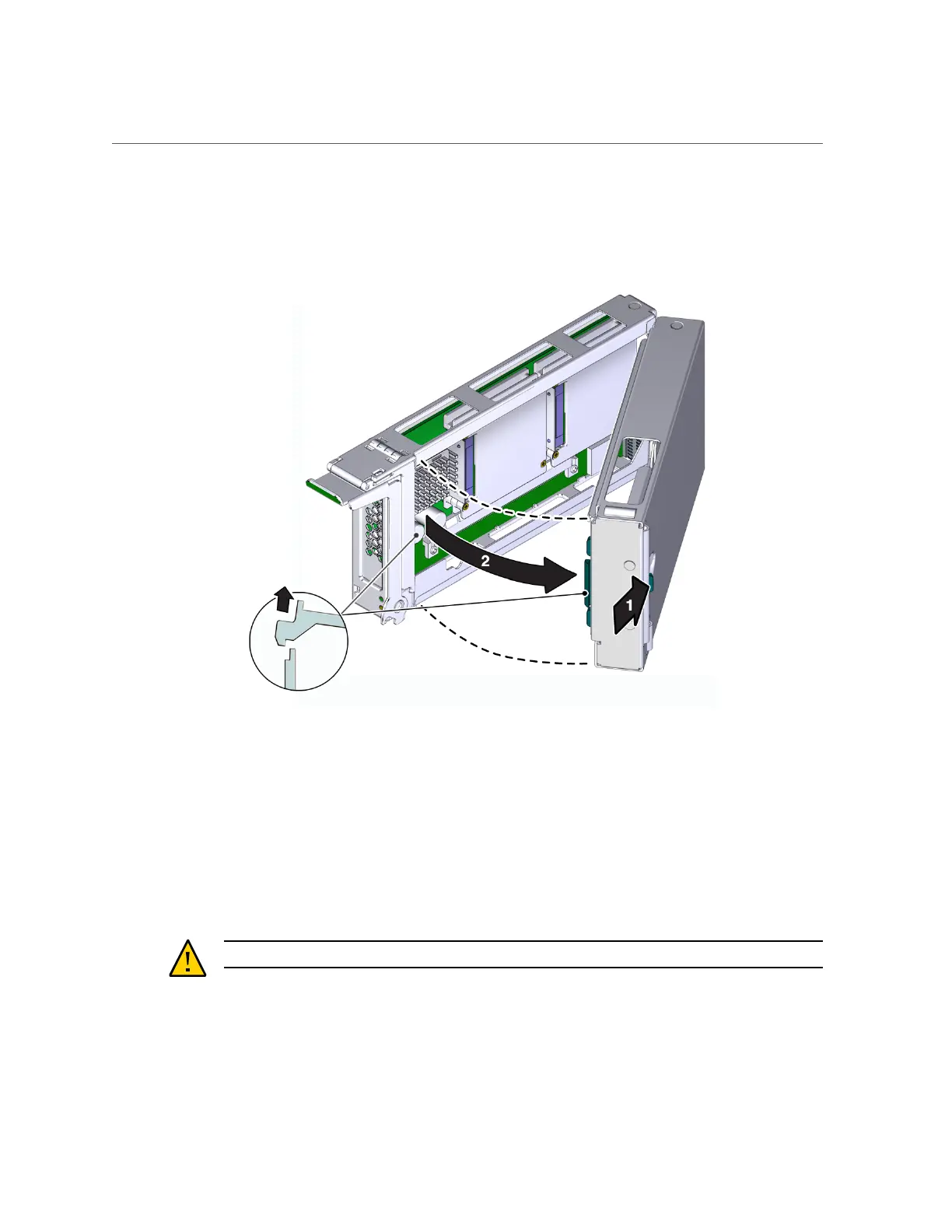

Hold the latch open, and swing the carrier extension away from the main carrier,
separating the two components.
3.
Determine your next step:
■
If you are replacing the PCIe card with another card, go to “Install a PCIe
Card” on page 165.
■
If you are removing the PCIe card from the server, go to Step 4.
4.
Set the carrier extension aside, remove the PCIe card, and replace the two main
PCIe card carriers that you removed to install the carrier extension.
See “Install a Card Carrier” on page 168.
Caution - You must reinstall both main PCIe card carriers to maintain the proper air flow.
Related Information
■
“Remove a PCIe Card” on page 159
