Install the Rear Chassis Subassembly

Servicing the Rear Chassis Subassembly 187

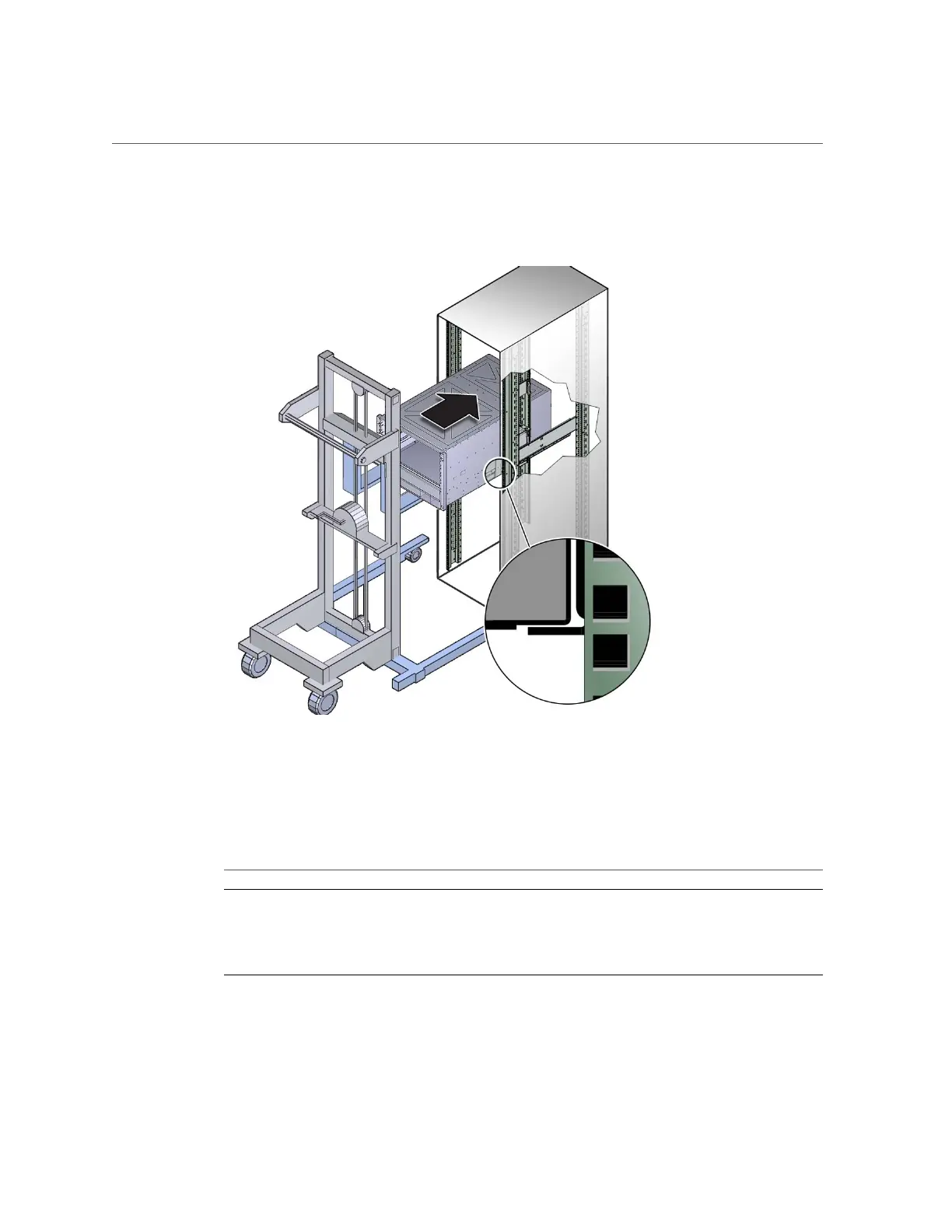

Place the chassis on a mechanical lift.

Install the chassis into the rack, and secure the chassis with the four screws that

were removed.

At the rear of the server, install these components.

Component Link

Rear I/O module “Install the Rear I/O Module” on page 176

PCIe carriers “Install a Card Carrier” on page 168

Fan modules “Install a Fan Module” on page 145

Cables According to their lables

At the front of the server, install these components.
